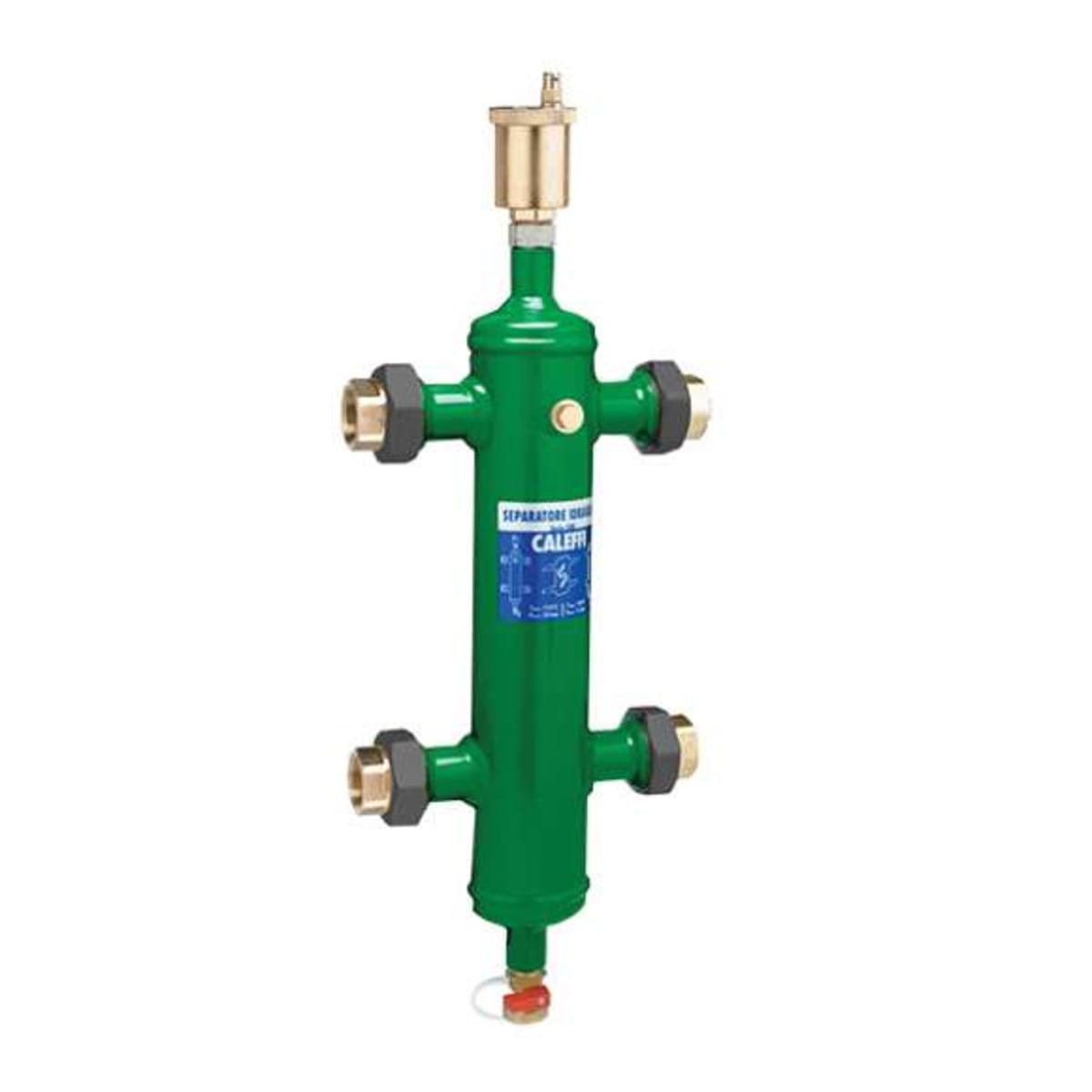

Caleffi 548098A Hydroseparator 1 1/2 Sweat Union

Product Description

The Caleffi 548098A is a hydroseparator designed for efficient performance in heating systems. This unit creates a hydraulic separation between primary and secondary circuits, helping to minimize pressure loss and improve flow control. The flow in one circuit does not affect the flow in another, allowing for independent operation.

• Connection Type: Sweat
• Maximum Pressure: 150 psi
• Nominal Size: 1-1/2 inches

Product Highlights

This hydroseparator includes an automatic air vent and a high-capacity blowdown valve, essential for effective air elimination and maintenance of optimal operating conditions.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 548098A

Technical Specifications

• Series: 548
• Connection Type: C Union
• Dimensions: 11 inches wide
• Flow Rate: 26 gpm
• Insulation Material: PE-X
• Material: Steel
• Maximum Percentage of Glycol: 0.5
• Temperature Rating: 32 to 210 degrees Fahrenheit
• Working Pressure: 150 psi
