Caleffi 548097A Hydroseparator 1 1/4 Sweat Union

Product Description

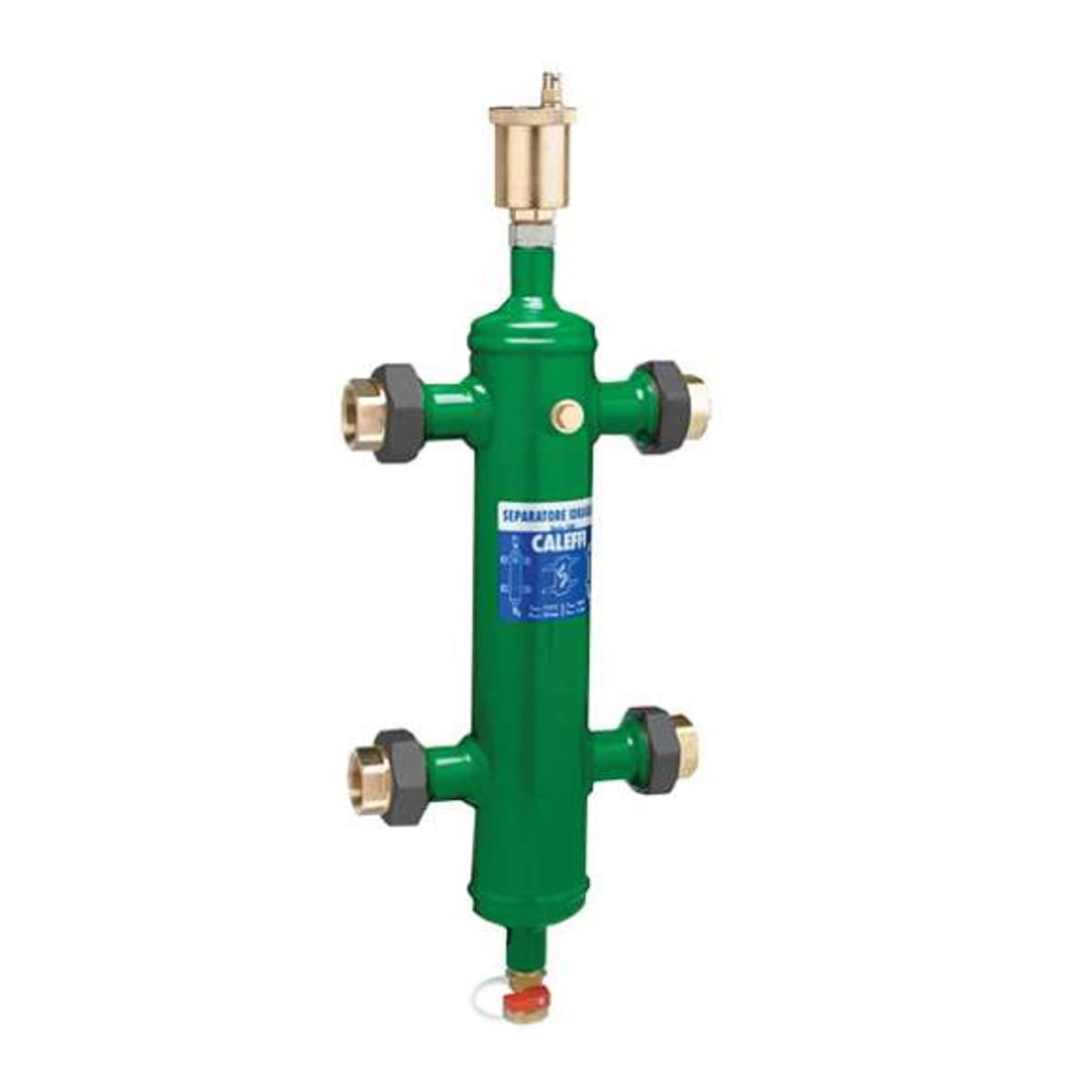

The Caleffi 548097A hydronic separator is designed to create a zone with low pressure loss between primary and secondary circuits. This allows each circuit to operate independently without affecting the other. The separator features a C union connection and is suitable for working pressures up to one hundred fifty psi and temperature ratings between thirty-two to two hundred ten degrees Fahrenheit.

• Connection Type: Sweat Union
• Material: Steel with PE-X insulation
• Flow Rate: Eighteen gallons per minute

Product Highlights

This device includes an automatic high-capacity air vent with a service valve for discharging accumulated air.

Product Information

Standard Information

• Nominal Size: 1-1/4 inches
• Series: 548

Technical Specifications

• Maximum Percentage of Glycol: 0.5
• Dimensions: 9-1/2 inches width
• Temperature Rating: 32 to 210 degrees Fahrenheit
• Working Pressure: 150 psi
• Flow Rate: 18 gallons per minute
• Insulation Material: PE-X
