Caleffi 548082A Hydroseparator 3 Flange Replacement MPN

Product Description

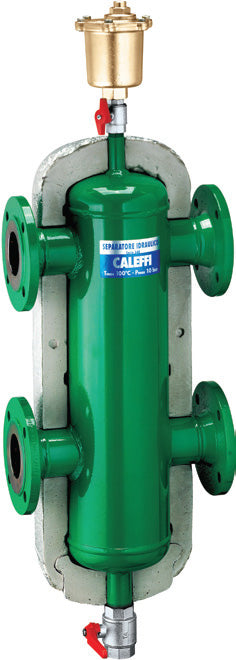

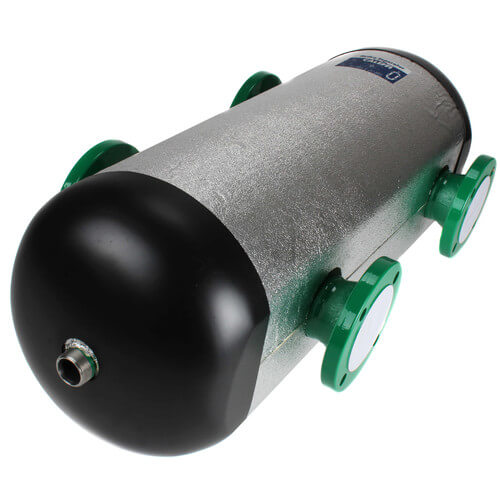

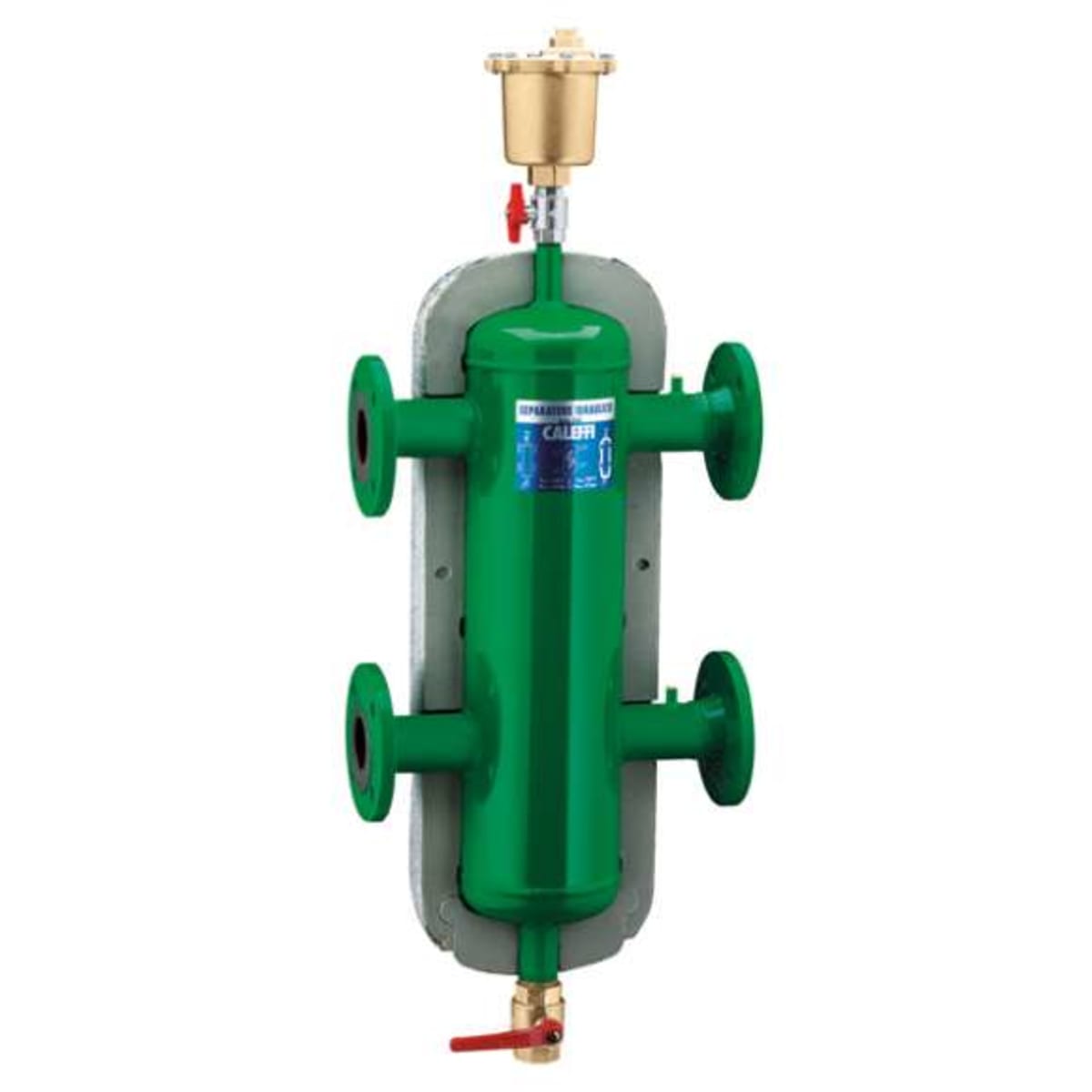

The Caleffi 548082A is a hydroseparator that provides hydraulic separation of primary and secondary circuits. This unit minimizes pressure loss, allowing independent operation of connected systems. It features a raised face flange connection for easy integration into existing piping systems.

• Reduces pressure loss between connected circuits
• Includes automatic air vent with service valve
• Constructed to ANSI 150 lb standards for reliable performance

Product Highlights

Designed for use in hydronic heating systems, this hydroseparator allows for optimal flow management and prevents pump conflicts.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 548082A

Technical Specifications

• Type: Hydro Separator
• Nominal Size: 3 in
• Connection Type: ANSI 150 lb Raised Face Flange
• Flow Rate: 124 gpm
• Working Pressure: 150 psi
• Temperature Rating: 32 to 210 deg F
• Insulation Material: Polyurethane Foam Inner/Embossed Aluminum Outer
• Maximum Percentage of Glycol: 50 %
• Material: Steel
• Dimensions: 18-3/8 in W
