Caleffi 548068A Hydro Separator 1-1/2 inches Press Union

Product Description

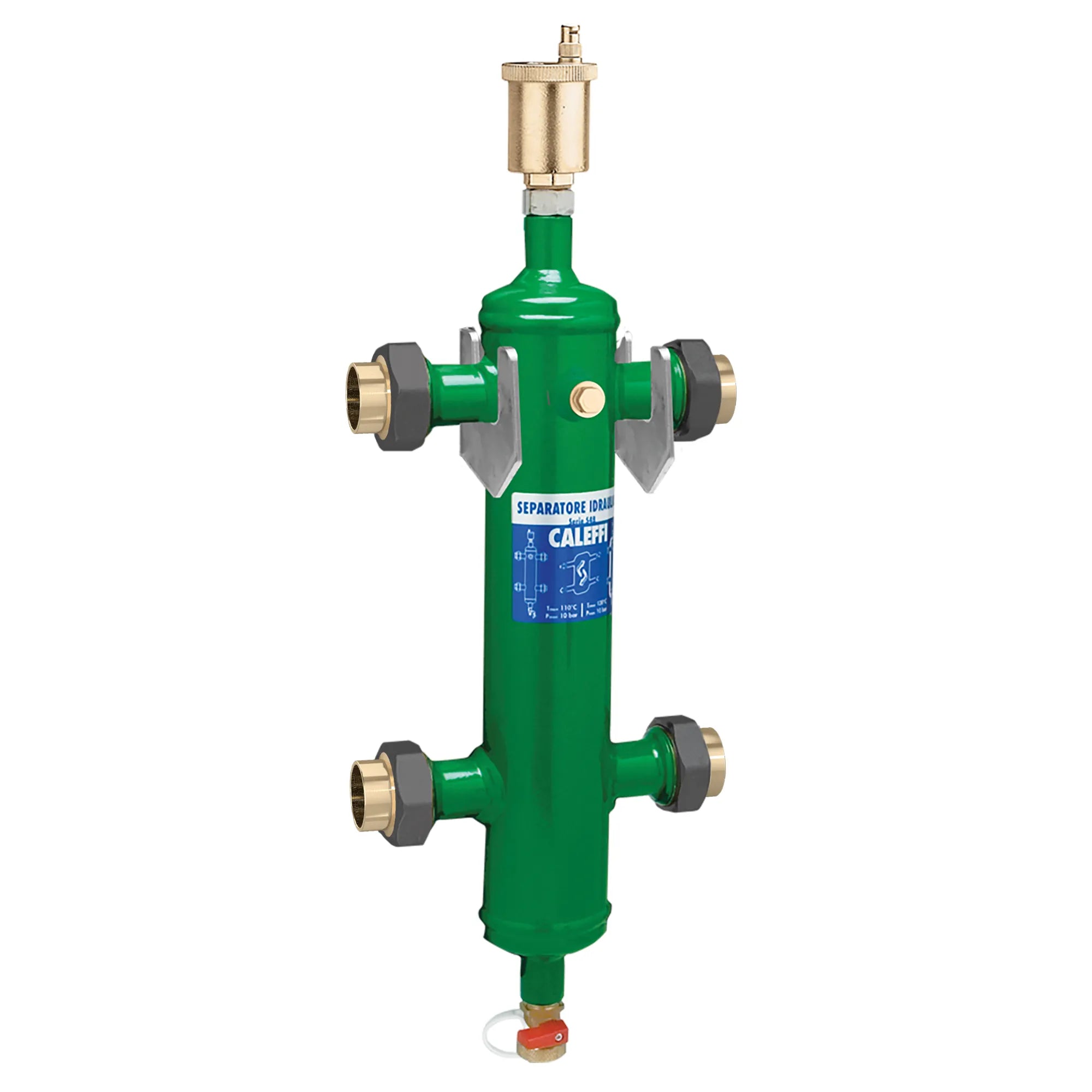

The CALEFFI 548068A hydraulic separator creates a zone with a low pressure loss, enabling connected primary and secondary circuits to be hydraulically independent. Hydraulically decoupling primary and secondary circuits eliminates pump conflict. It includes an automatic high-capacity air vent with service valve to discharge accumulated air within the circuits. Complete with drain valve, thermowell tap, and mounting bracket.

• Hydraulic separator
• Epoxy resin coated steel body
• 300 Series stainless steel internal baffle
• Includes mounting bracket

Product Highlights

The CALEFFI 548068A Hydro Separator ensures efficient hydraulic separation with durable construction and easy installation.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 548068A

Technical Specifications

• Size: 1-1/2"
• Material: Brass, Steel
• Product Type: Hydraulic Separator
• Connection Type: Press Union x Press Union
• Connection Method: Press Union
• Max Pressure (PSI): 150
• Manufacturer: Caleffi
• Manufacturer #: 548068A
• Medium temperature range: 32 – 212 °F
• Maximum operating pressure: 150 psi
• Connection: 1 1/2" Press, union
