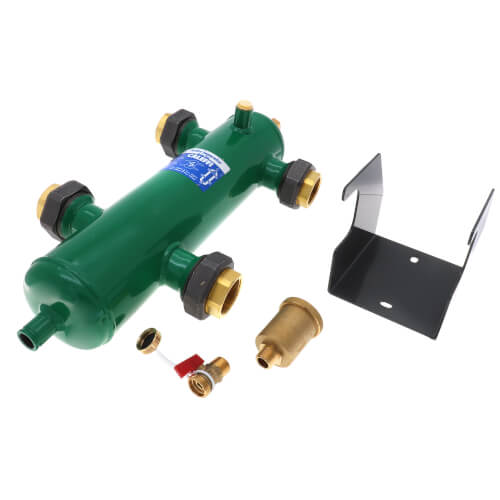

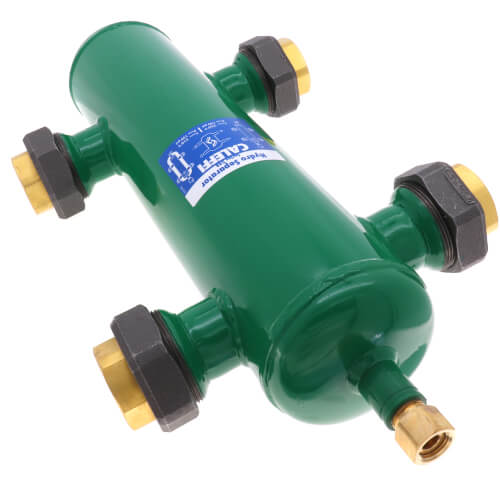

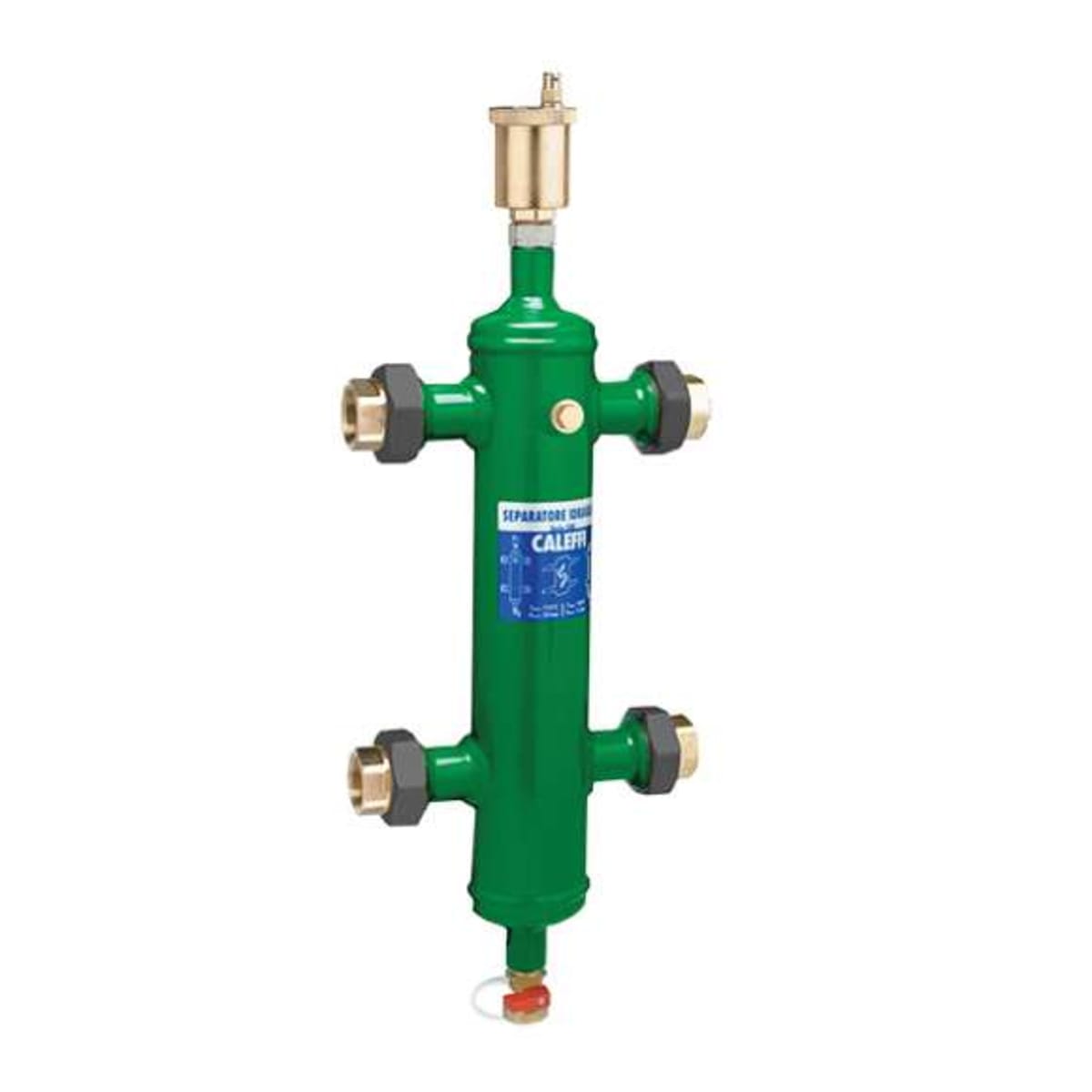

Caleffi 548008A Hydroseparator 1-1/2 NPT Union Replacement MPN

Product Description

The Caleffi 548008A is a hydraulic separator that establishes a low-pressure loss zone within heating systems. It allows primary and secondary circuits to function independently, ensuring that flow in one does not affect the other. This feature is important for maintaining system efficiency.

• Size: 1-1/2 inches NPT Union
• Material: Steel body with PE-X insulation
• Working pressure: 150 psi, Temperature range: 32 to 210 degrees Fahrenheit

Product Highlights

Automates air venting and supports various heating applications with reliable performance.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 548008A

Technical Specifications

• Connection Type: FNPT Union
• Nominal Size: 1-1/2 inches
• Flow Rate: 26 gpm
• Material: Steel
• Insulation Material: PE-X
• Maximum Percentage of Glycol: 0.5
• Dimensions: 10-1/2 inches W
• Temperature Rating: 32 to 210 degrees Fahrenheit
• Working Pressure: 150 psi
