Product Description

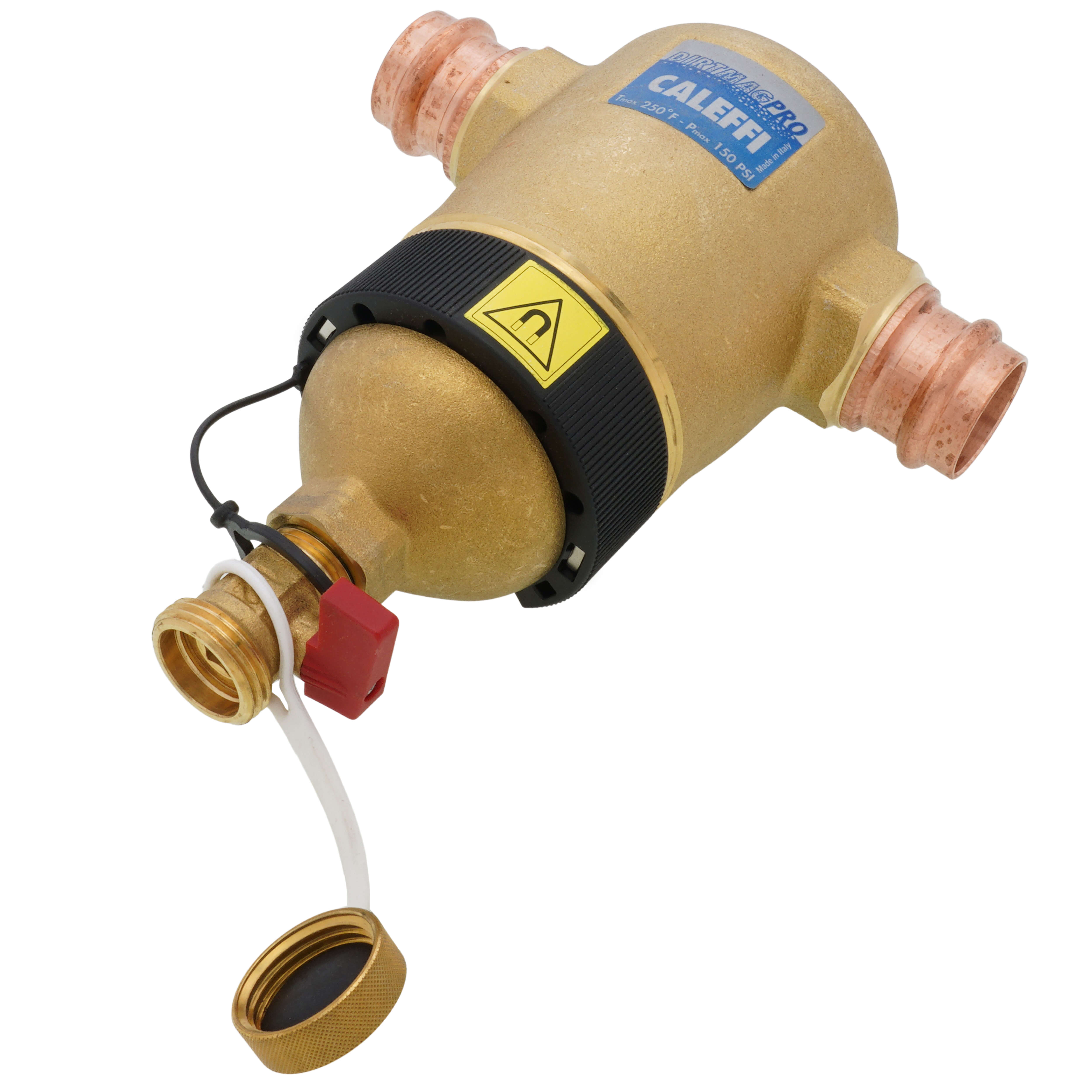

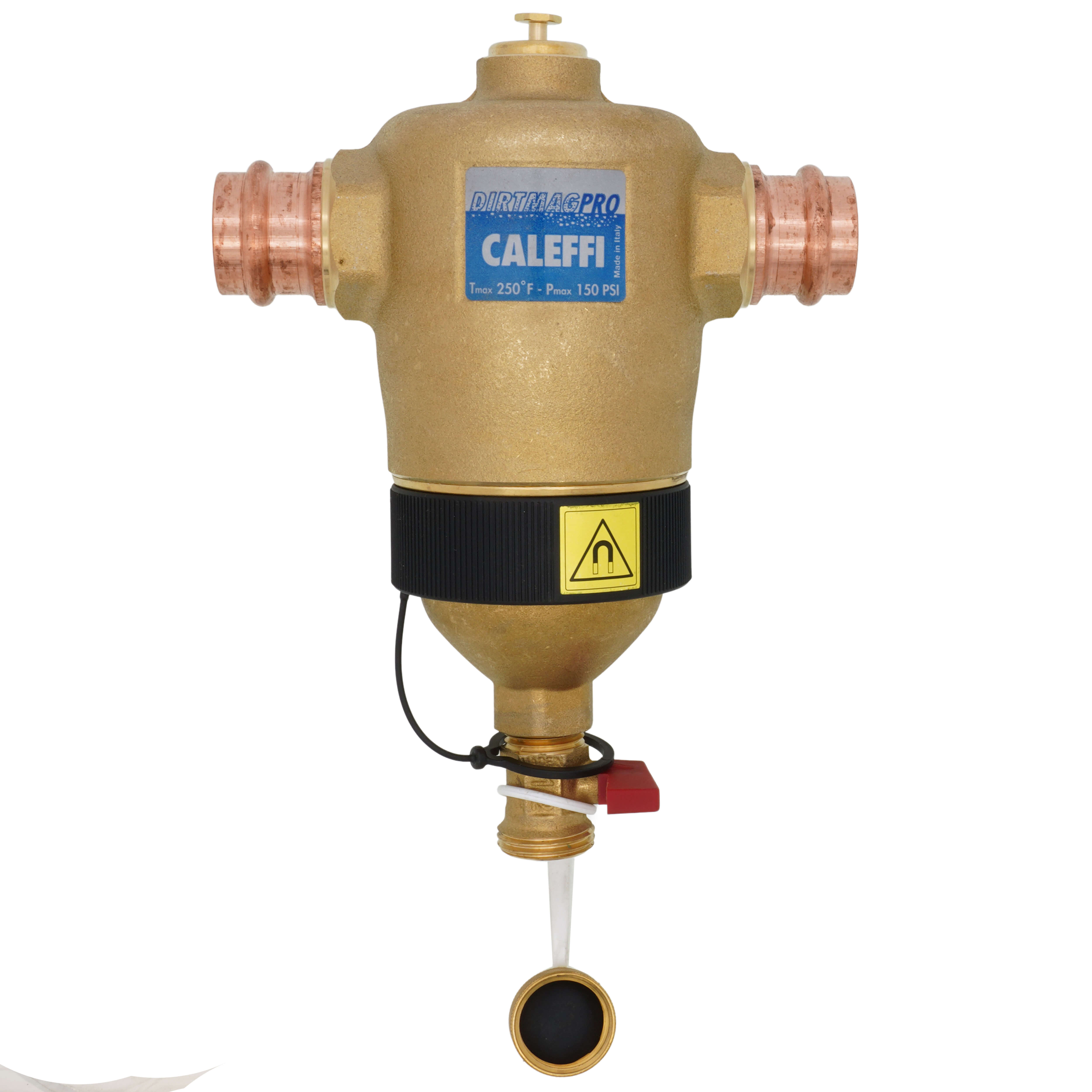

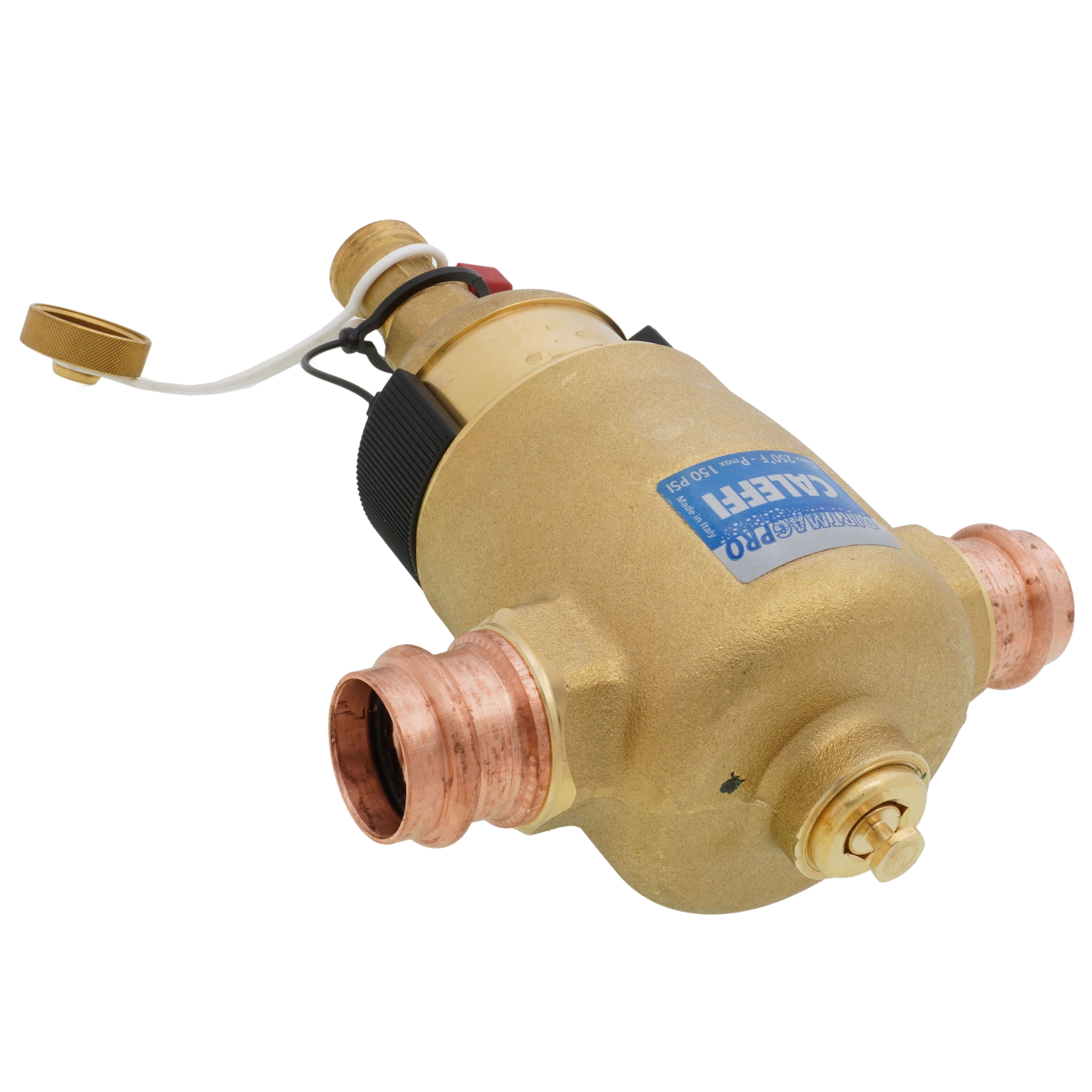

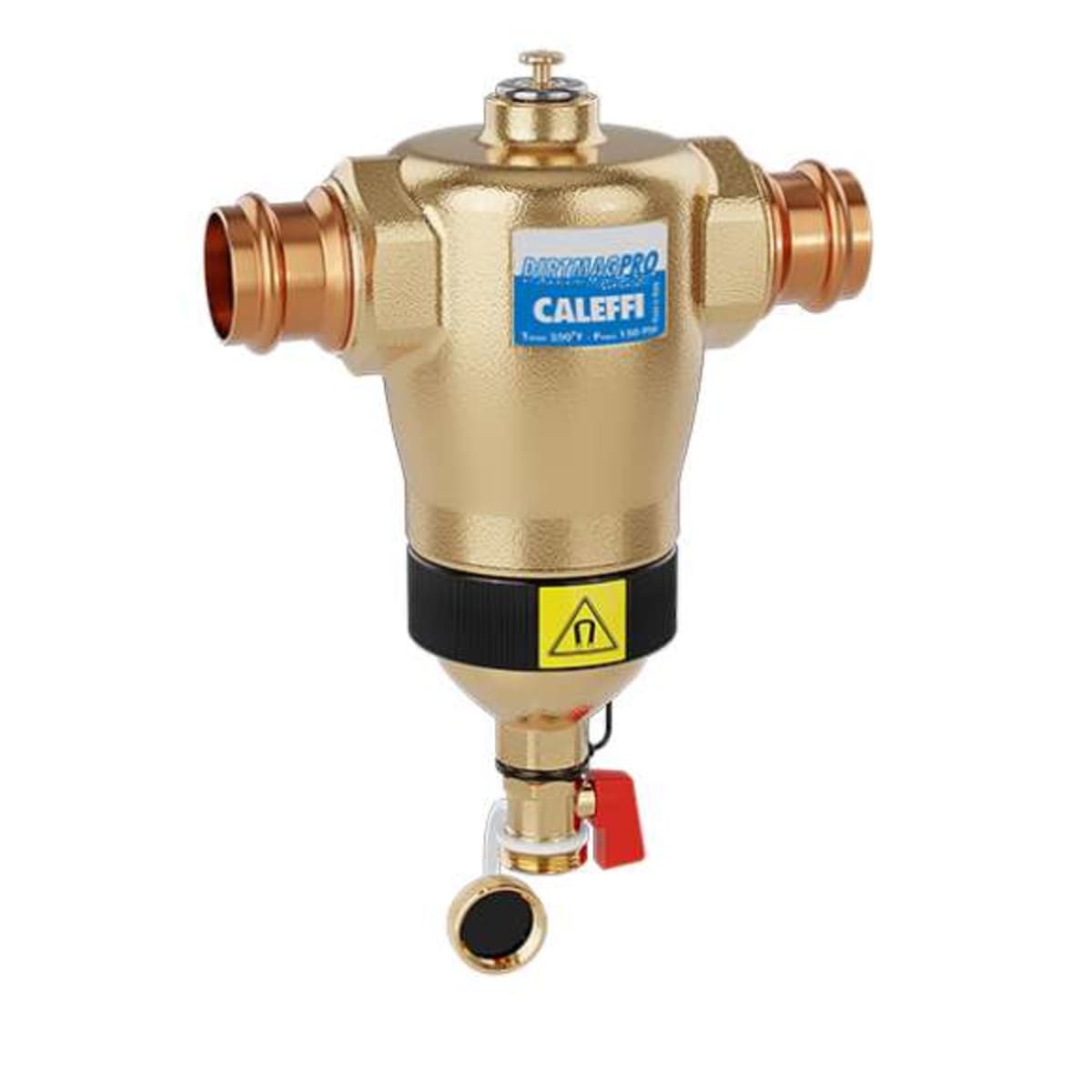

The Caleffi 546366AM is a DirtMagPRO 1 Press dirt separator. This product is designed to remove dirt from water in heating and cooling systems. It helps protect pumps, valves, and heat exchangers.
- Effective dirt removal to enhance system efficiency.
- Easy to flush while the system operates.
- Designed for low head loss.
Product Highlights
The DirtMagPRO features dual magnets for improved dirt and ferrous particle capture. It is a key component in maintaining system integrity in hydronic fluid applications.
Product Information
Standard Information
-
Brand: Caleffi North America
-
MPN: 546366AM
Technical Specifications
-
Size: 1 inch
-
Connection Type: Press
-
Flow Rate: 24 GPM
-
Weight: 4.5 pounds
-
Max Temperature: 250 °F
-
Temperature Range: 32 °F to 250 °F
-
Max Pressure: 150 PSI
-
Micron Rating: 5
