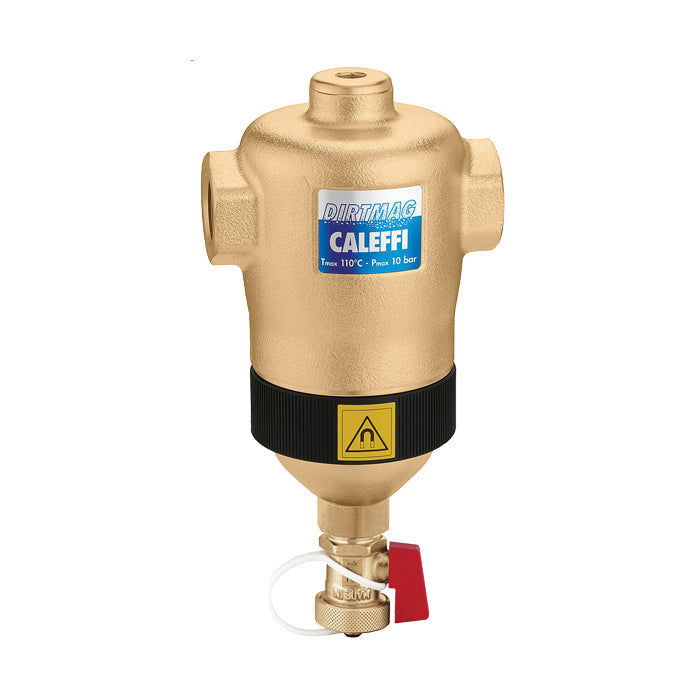

Caleffi 546366A DirtMag 1 in Integral Press 54623

Product Description

The Caleffi DirtMag model 546366A is a dirt separator designed for use in hydronic heating and cooling systems. This unit effectively captures dirt and debris to prevent damage to system components. It features an integral press connection and operates efficiently even while the system is working. The DirtMag utilizes powerful magnets to attract and remove ferrous particles, enhancing system performance.

• Removes dirt and debris from hydronic systems
• Integrates magnetic technology for better impurity removal
• Maintains high thermal efficiency

Product Highlights

The DirtMag can separate particles as small as five microns, making it an efficient solution for maintaining system integrity.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 546366A

Technical Specifications

• Nominal Size: 1 in
• Connection Type: Integral Press
• Material: Brass
• Working Pressure: 150 psi
• Temperature Rating: 32 to 250 deg F
• Maximum Percentage of Glycol: 0.5
• Particle Separation Capacity: 5 um
• Series: 54623
• Suitable Media: Water/Glycol Solution
