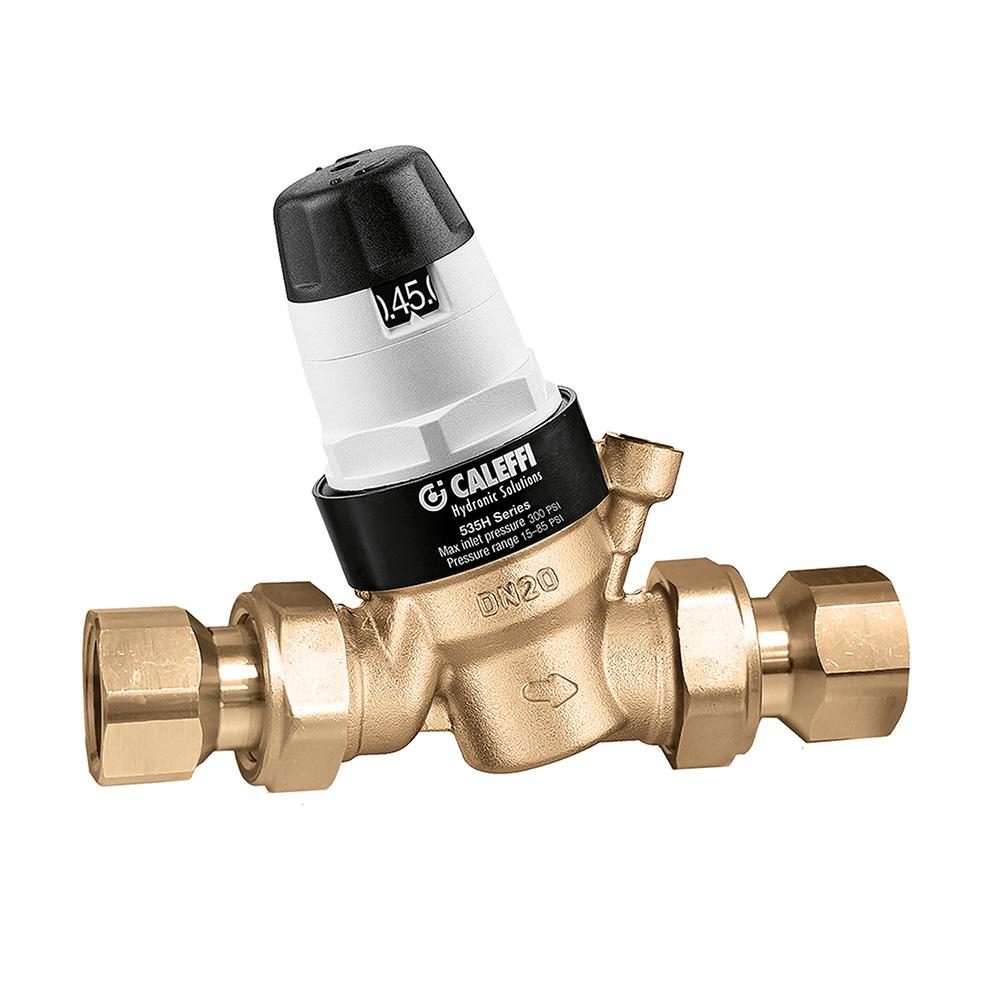

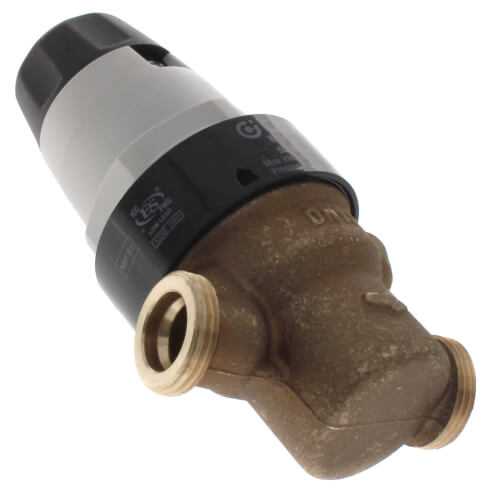

Caleffi 535390HA Pressure Reducing Valve 2 inches NPTF

Product Description

The CALEFFI 535390HA is a pre-adjustable pressure reducing valve designed for residential and commercial applications. Constructed with low lead dezincification resistant "Ecobrass" body and features a unique noise reducing pressure balanced cartridge. Suitable for water systems that may contain sediment and debris.

• Low lead dezincification resistant "Ecobrass" body
• Unique noise reducing pressure balanced cartridge
• Integral stainless steel filter

Product Highlights

This valve features a dial indicator with direct readout, replaceable cartridge and adjustment locking screw.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535390HA

Technical Specifications

• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 0 F (80 0C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Certified to: ASSE 1003, CSA B356, NSF61, NSF372, Low Lead Laws and listed by ICC-ES. Meets codes IPC, IRC and UPC for use in accordance with the U.S. and Canadian plumbing codes.
• Size: 2"
• Max Pressure (PSI): 300
• Inlet Type: FNPT
• Outlet Type: FNPT
• Material: Brass
• Manufacturer: Caleffi
• Manufacturer #: 535390HA
• Parts Town #: CALE535390HA
• Body Material: Forged Brass
• End Style: FNPT
• Flow Rate: 70 gpm
• Inlet to Outlet Length: 8-3/8 in
• Media: Water
• Nominal Size: 2 In
• Series: 535H
• Softgoods Material: Peroxide-Cured EPDM Diaphragm/Seal
• Temperature Rating: 180 deg F
• Top to Inlet Center: 7 in
• Trim Material: Stainless Steel
• Type: Pre-Adjustable
• Operating Temperature: 35.6 to 180 0 F
• Pressure: 15 psi to 90 psi, 300 psi max.
