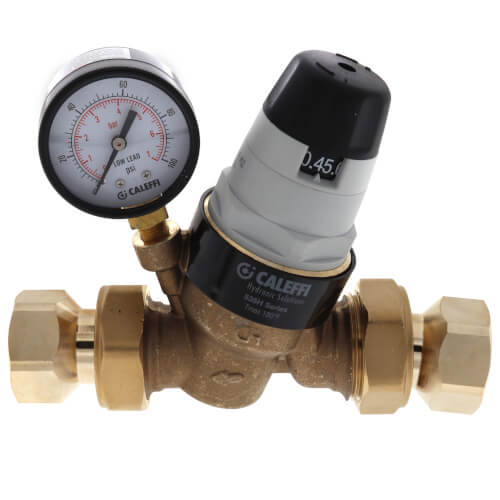

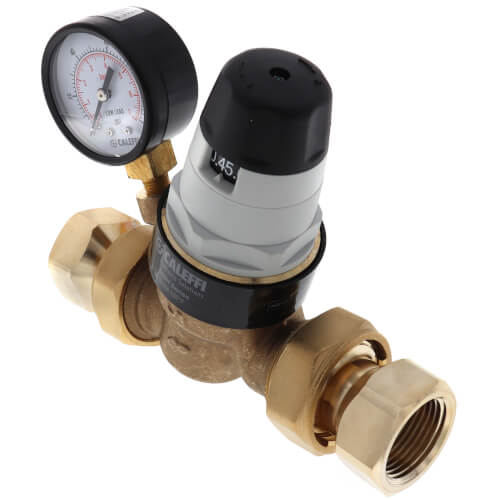

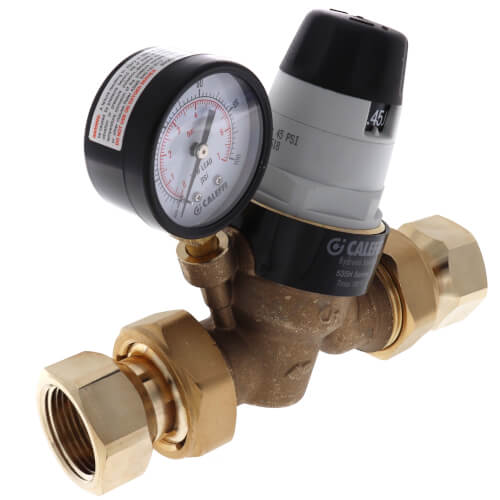

Caleffi 535361HA 1 NPTF Pressure Reducing Valve with Gauge Low Lead Pre-adjustable

Product Description

The Caleffi 535361HA is a 1 NPTF pressure reducing valve with gauge. This valve is ideal for residential and commercial plumbing applications.

• Low lead dezincification resistant Ecobrass body
• Noise reducing pressure balanced cartridge
• Adjustable and replaceable cartridge

Product Highlights

This valve includes a stainless steel filter and a high flow seat design. Additionally, it features a dial indicator with a direct readout and an adjustment locking screw. It meets various certifications and has a pressure setting range from 15 to 90 psi.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 535361HA
• Product Name: 1 NPTF Pressure Reducing Valve with Gauge (Low Lead, Pre-adjustable)

Technical Specifications

• Flow Rate: 19 gallons per minute
• Max Working Pressure: 300 psi
• Max Working Temperature: 180 degrees Fahrenheit
• Pressure Setting Range: 15 - 90 psi
• Factory Setting: 45 psi
• Certifications: ASSE 1003, CSA B356, NSF61, NSF372, ICC-ES
• Material: Forged Brass
• Inlet Type: FNPT
• Outlet Type: FNPT
