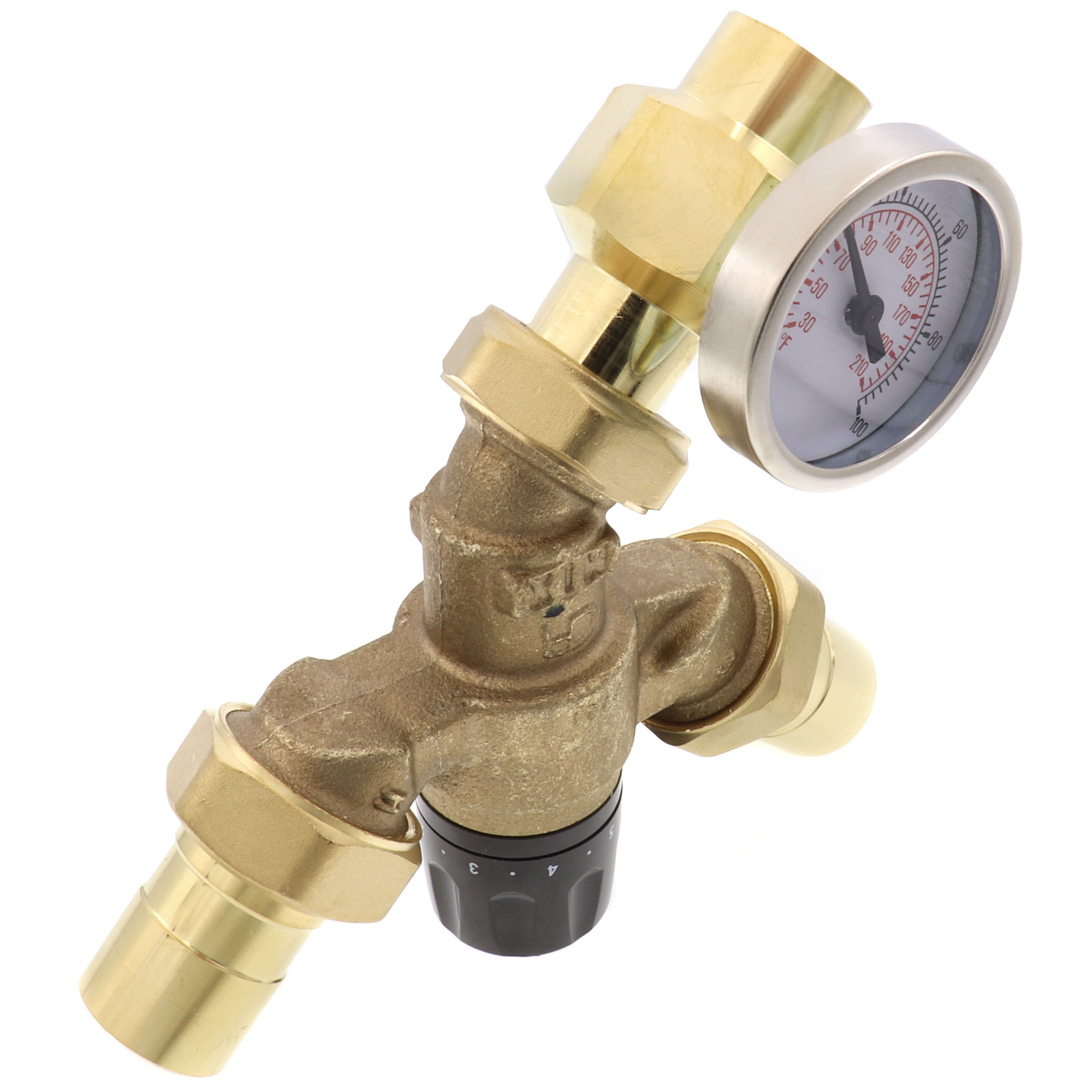

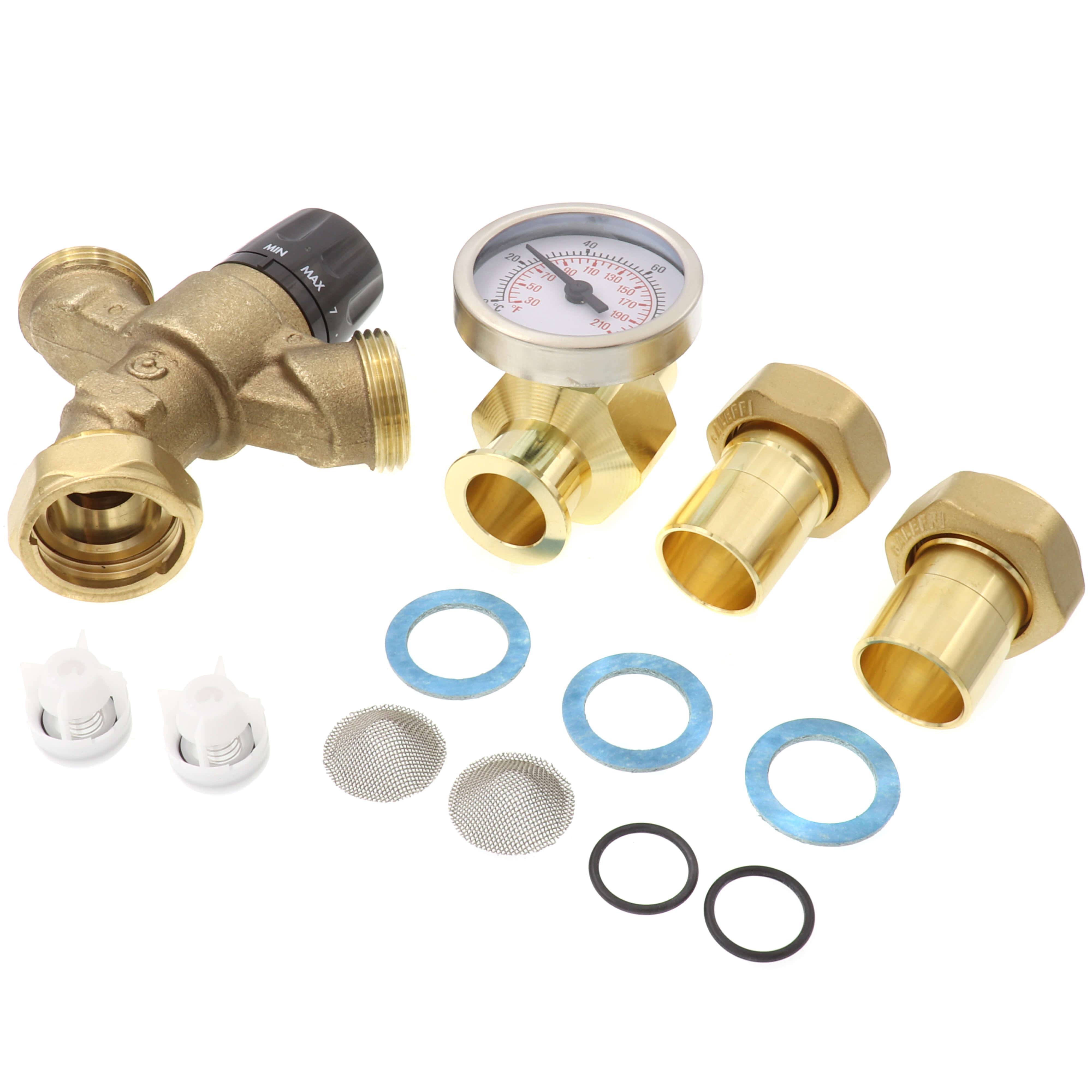

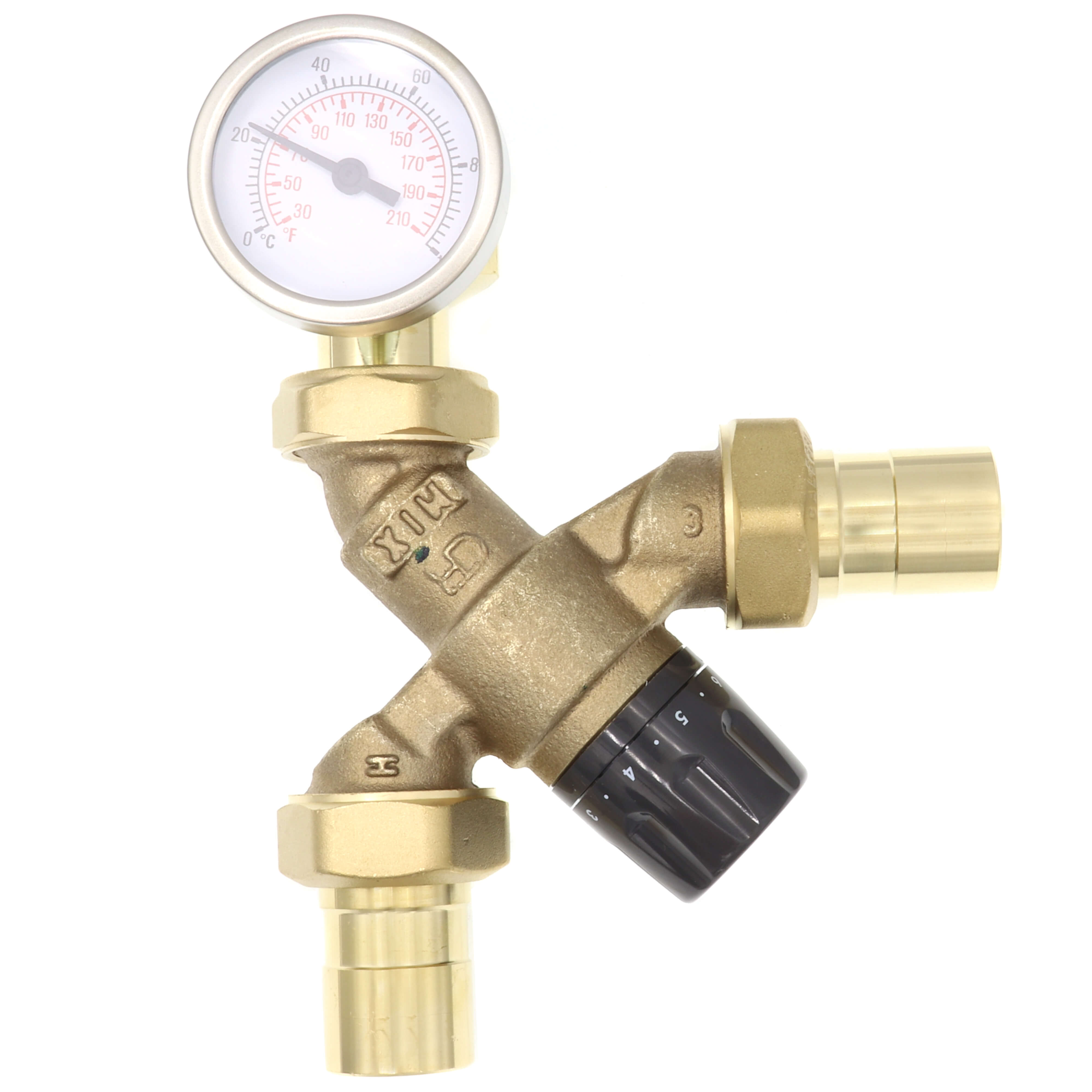

Caleffi 520519AC AngleMix 3-Way Mixing Valve 3/4

Product Description

The Caleffi 520519AC is an angle mix three-way mixing valve designed for systems that produce domestic hot water. It installs easily on the top of water heaters. The mixed temperature outlet aligns with the hot water inlet, simplifying connection and reducing installation space.

• Maintains a constant output temperature
• Includes thermal shut-off feature for cold water supply failure
• Offers improved fluid dynamics for better performance

Product Highlights

This mixing valve provides reliable temperature control and is suitable for various plumbing applications.

Product Information

Standard Information

• Brand: Caleffi North America
• Part #: CALE-520519AC

Technical Specifications

• Type: 3-Way
• Size: 3/4 inches
• Connection Type: Sweat
• Max Working Pressure (Static): 150 psi
• Max Working Pressure (Dynamic): 75 psi
• Max Inlet Temperature: 195 degrees Fahrenheit
• Adjustment Temperature Range: 95 to 150 degrees Fahrenheit
• Min Flow for Optimum Performance: 0.5 gpm
