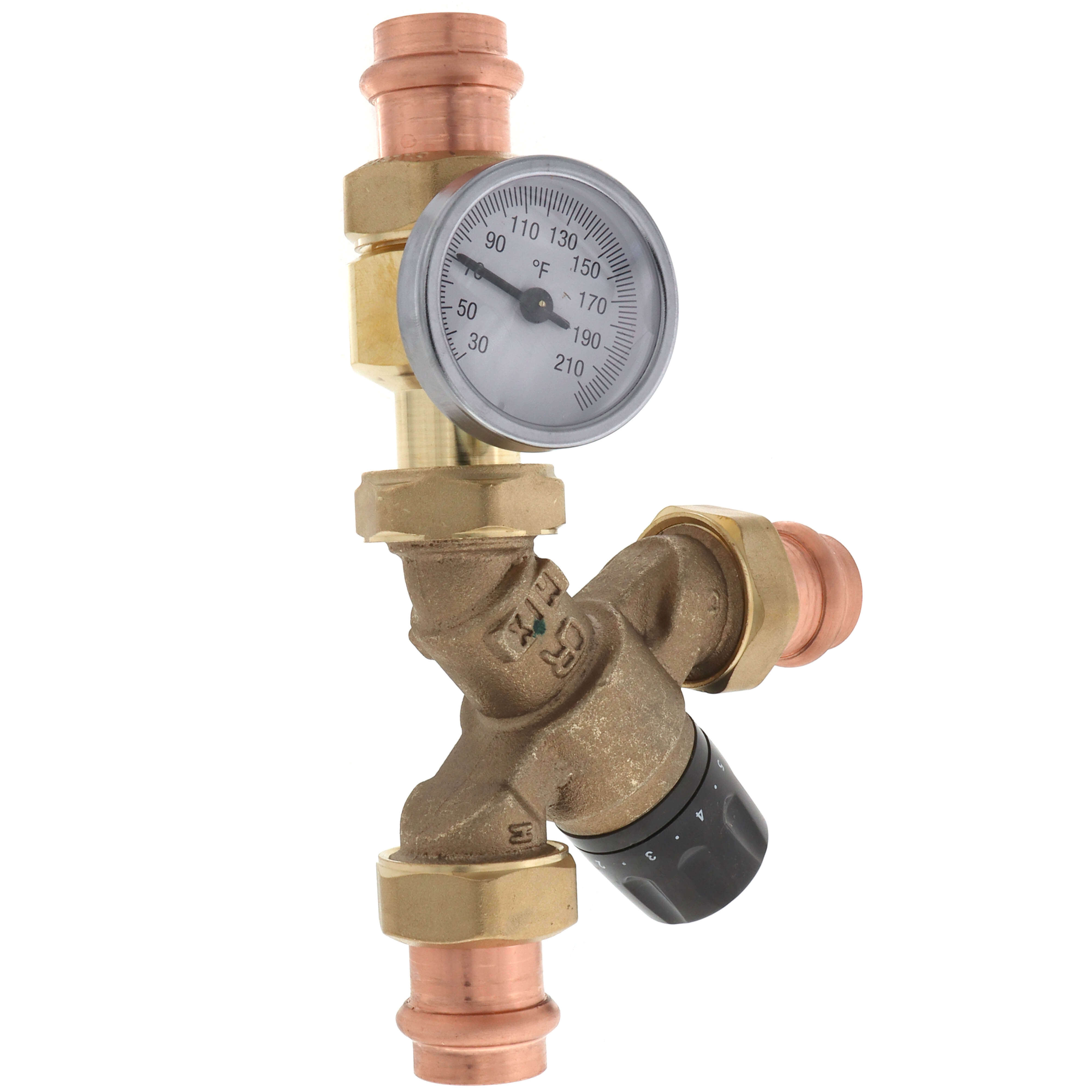

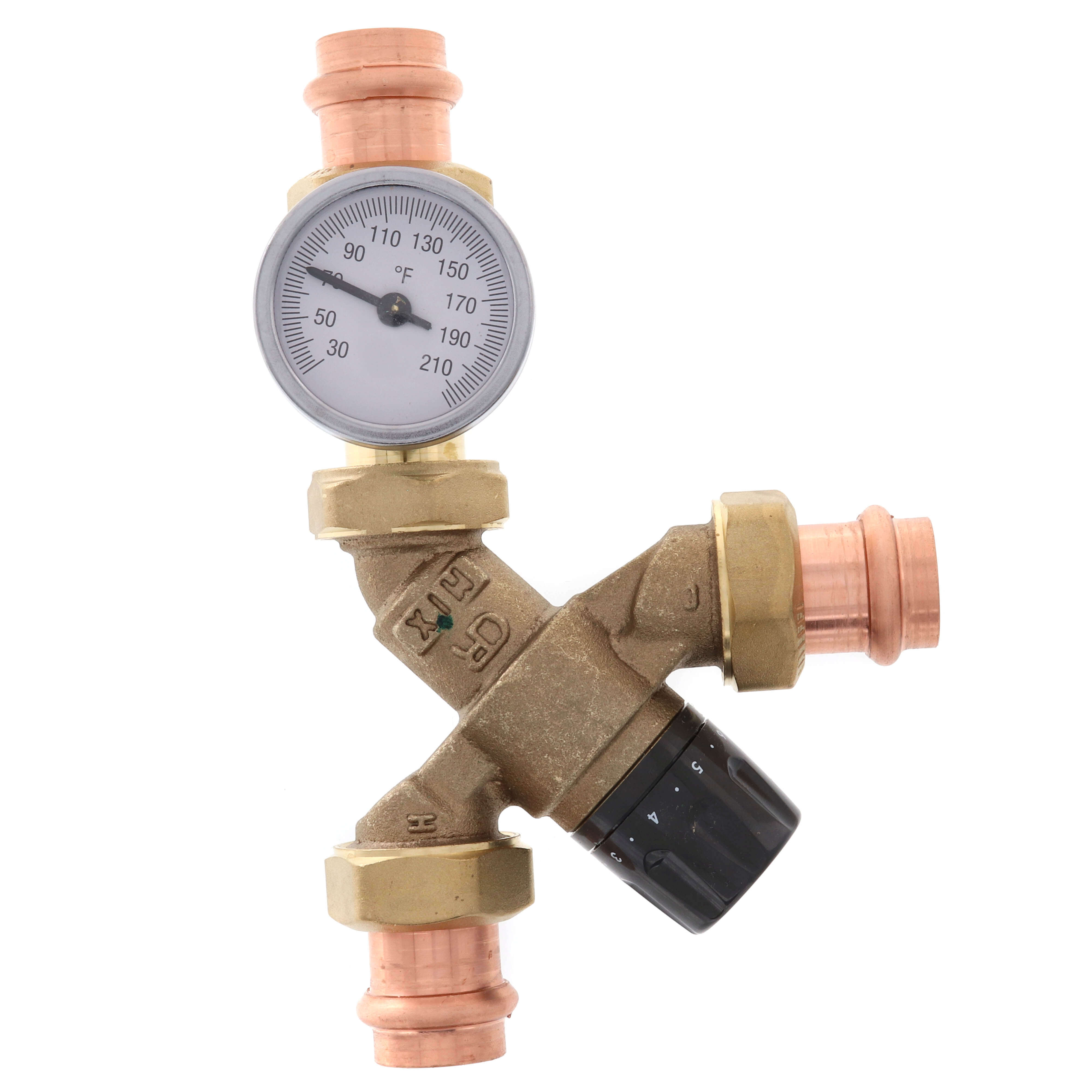

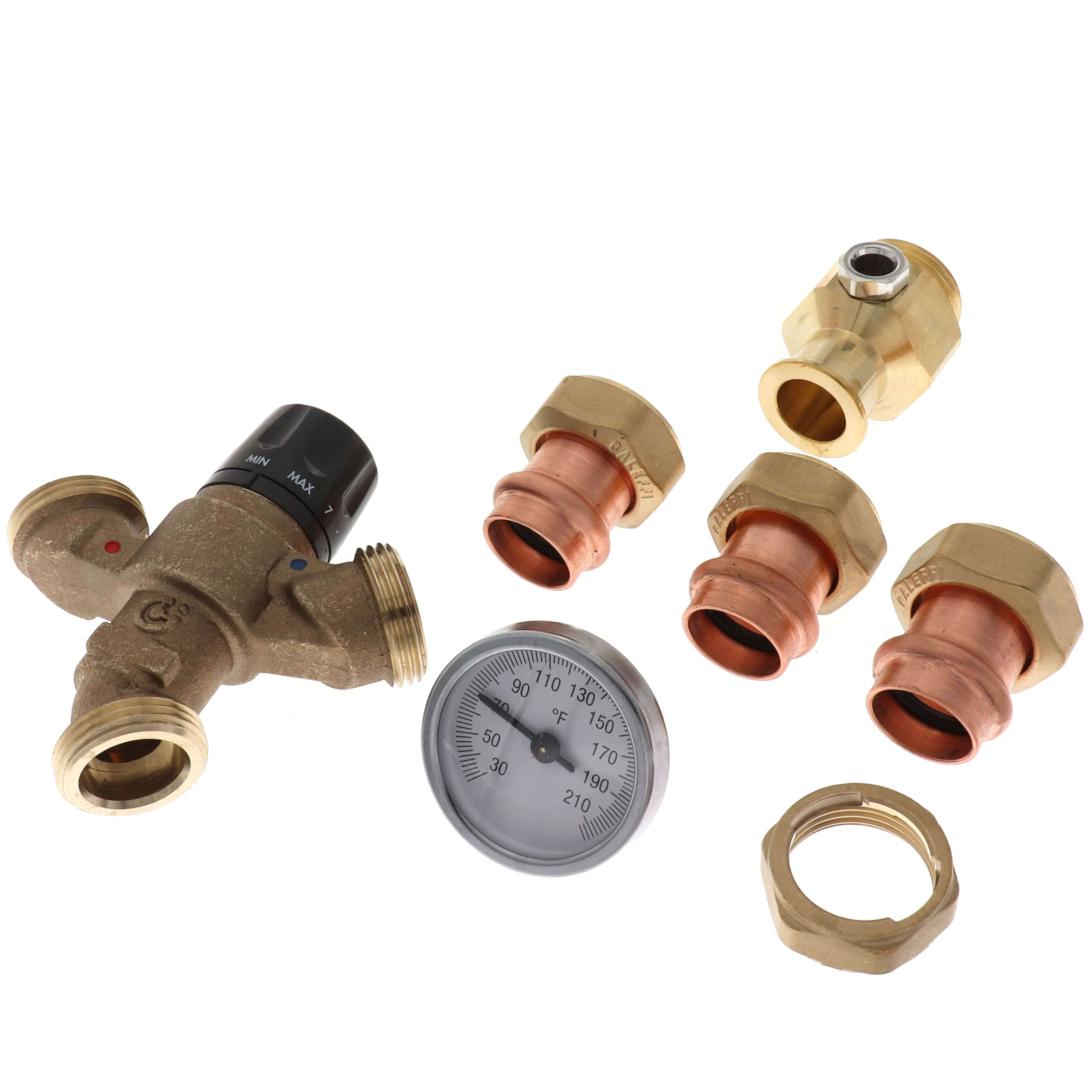

Caleffi 520516A AngleMix 3-Way Mixing Valve 3/4 Press

Product Description

The Caleffi AngleMix™ 520516A is a thermostatic mixing valve designed for domestic hot water systems. This valve easily mounts on top of water heaters for efficient installation. It keeps the output temperature steady, ensuring the mixed water remains at the desired level while compensating for fluctuations in temperature and pressure.

• 3/4 inch size for easy integration.
• Press connection type for quick installation.
• Thermal shut-off feature for safety in case of cold water supply failure.

Product Highlights

The AngleMix™ design enhances fluid dynamics, improving overall performance while reducing the need for extra installation materials.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 520516A

Technical Specifications

• Size: 3/4 inch
• Type: 3-Way
• Connection Type: Press
• Adjustment Temperature Range: 95°F - 150°F
• Max Working Pressure (Static): 150 psi
• Max Inlet Temperature: 195°F
• Gauge Scale: 30°F - 210°F
• Min Flow for Optimum Performance: 0.5 gpm
