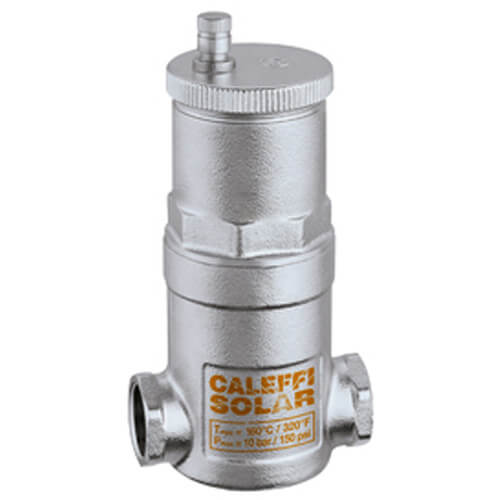

Caleffi 251003A Solar Air Separator 3/4 NPTF

Product Description

The Caleffi 251003A is a solar air separator designed for efficient removal of dissolved gases in solar heating systems. This unit features a three-quarter inch national pipe thread female connection. Air elimination is crucial in preventing corrosion and maintaining the integrity of solar collectors and heat exchangers.

• Working temperature range: -20 to 320 degrees Fahrenheit
• Maximum working pressure: 150 psi
• Threaded connection type

Product Highlights

This air separator increases the efficiency and longevity of solar heating systems by mechanically removing gases, which can lead to corrosion.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-251003A

Technical Specifications

• Size: 3/4 inches
• Type: Heat Meters
• Connection Type: MIP
• Material: Brass
• Shipping Weight: 2 pounds
• Shipping Depth: 8 inches
• Shipping Width: 3.5 inches
• Shipping Height: 3 inches
• Max Temperature: 320 degrees Fahrenheit
• Max Pressure: 150 psi
