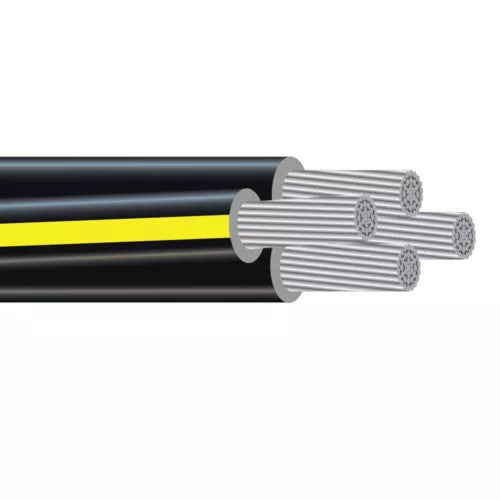

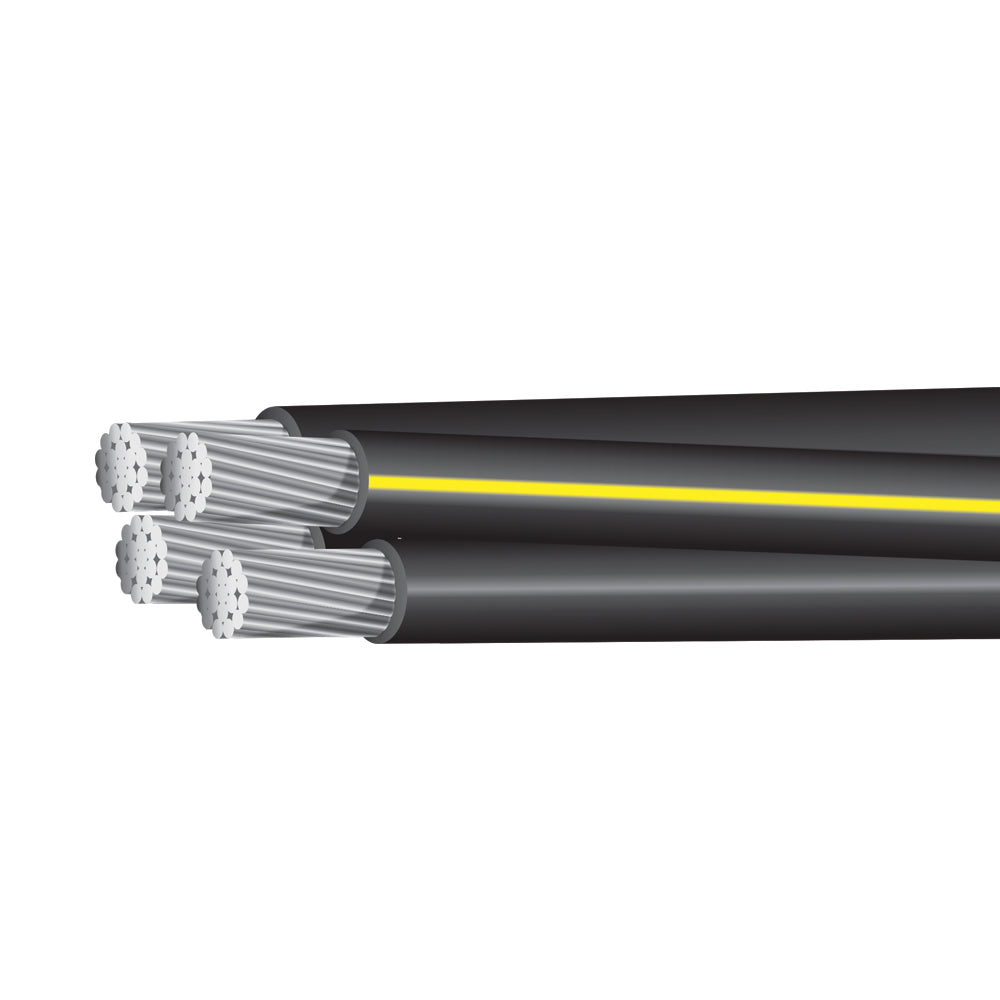

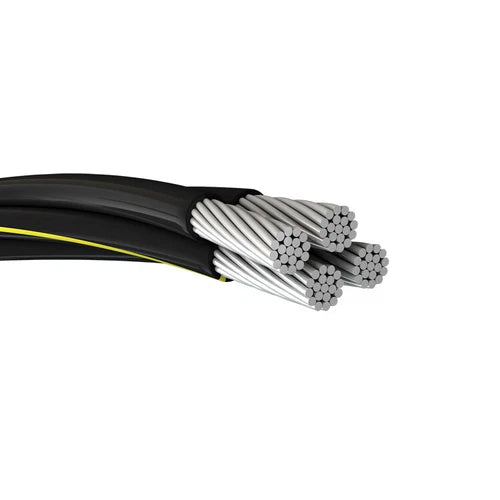

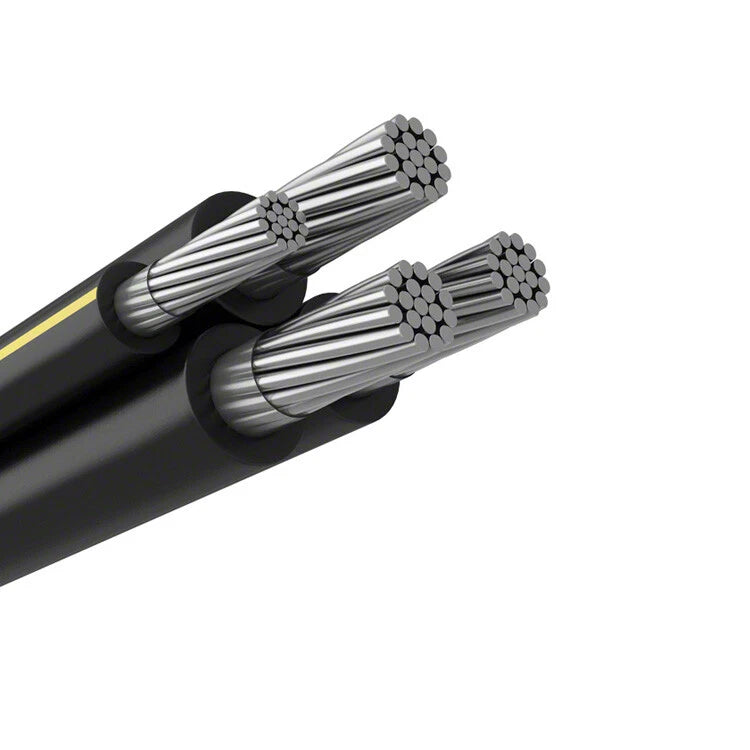

CABLE URD-2/0-2/0-2/0-1 Aluminum Underground Distribution Cable

Product Description

The CABLE URD-2/0-2/0-2/0-1 is an aluminum underground distribution cable intended for secondary distribution circuits. This cable consists of alloy 1350 aluminum conductors that are insulated with cross-linked polyethylene (XLPE). It is designed for use in direct burial applications or inside ducts.

• Suitable for secondary distribution circuits rated up to 600V.
• Meets requirements for direct burial and duct installation.
• Insulation constructed from durable cross-linked polyethylene (XLPE).

Product Highlights

This cable features a reduced-size neutral conductor, typically identified by yellow stripes or hash marks, ensuring proper installation in secondary distributions.

Product Information

Standard Information

• Conductor Material: Aluminum
• Wire Gauge: 2/0 AWG

Technical Specifications

• Neutral Conductor Size: 1 AWG
• Number of Conductors: 4
• Voltage: 600 V
• Insulation Material: Cross-Linked Polyethylene (XLPE)
• Wire Style: Stranded
• Conductor Strand: 19
• Allowable Ampacity - Direct Burial: 225 Amps
• Allowable Ampacity - In Duct: 170 Amps
• Outside Diameter: 1.316 inches
• Insulation Thickness: 0.080 inches
• Weight: 0.657 lbs per ft
• Sheath Color: Black
