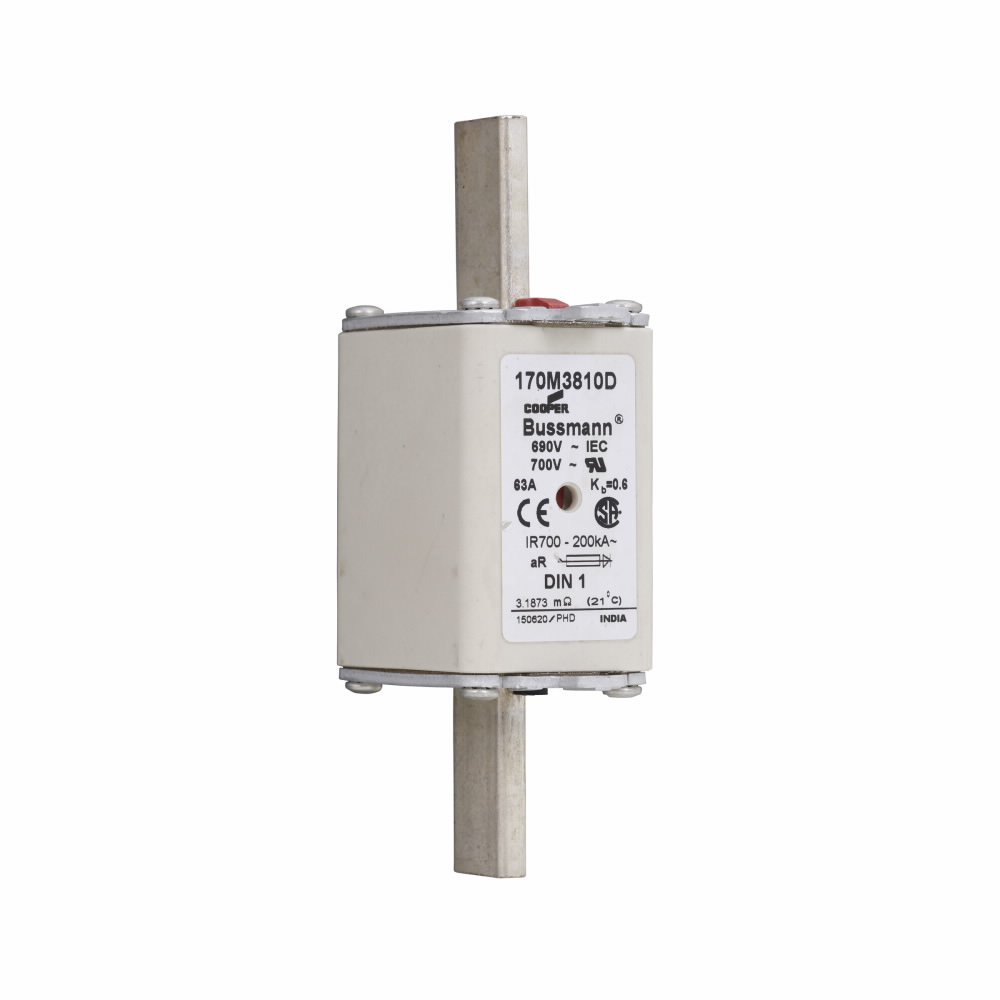

Bussmann 170M3810D Fuse 63A 690V aR DIN

Product Description

The Bussmann 170M3810D is a high-speed square body fuse designed for effective power distribution. This fuse operates at a voltage of six hundred ninety volts and an amperage of sixty-three amps. It features a combination fuse status indicator and a high interrupt rating of two hundred kAIC. The fuse construction includes DIN 43-620 blade end connections suitable for various applications.

• Voltage rating: 690V
• Current rating: 63A
• High interrupt rating at 200 kAIC

Product Highlights

This fuse is ideal for applications including DC common bus systems, DC drives, and power converters. It meets CE and UL standards and is suitable for use in semiconductor fuse applications.

Product Information

Standard Information

• Brand: Bussmann
• Manufacturer: Bussmann Mfg.

Technical Specifications

• Voltage: 690 Volt
• Amperage: 63 Amp
• Length: 135 mm
• Width: 45 mm
• Height: 64 mm
• Weight: 425.833 g
• Class: Class AR
• Fuse Type: DIN 43-620
• Enclosure Material: Stainless Steel
