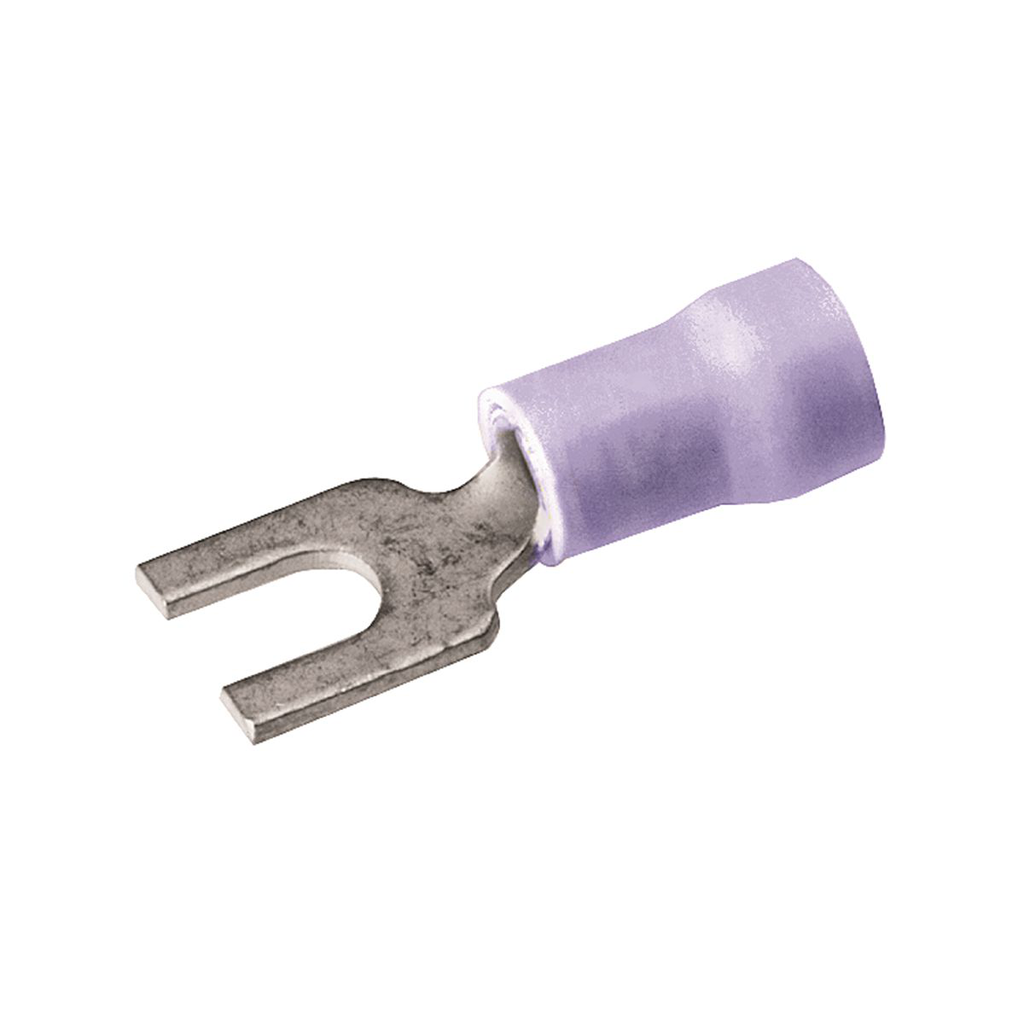

BURNDY TP1410FBG25 16-14INS FORK TERM

Product Description

The BURNDY TP1410FBG25 is a compression fork terminal designed for effective electrical connections. It accommodates wire sizes from sixteen to fourteen AWG and is constructed with a shrouded barrel for safety. The terminal provides a secure fit and effectively connects to #8 to #10 stud sizes. These terminals are ideal for use in various electrical applications, ensuring reliable connections in both residential and commercial settings.

• Minimum conductor size: 16 AWG.
• Maximum conductor size: 14 AWG.
• Approvals: UL 486/467, CSA.

Product Highlights

The TP1410FBG25 features a deep V groove and a vinyl insulation for enhanced performance.

Product Information

Standard Information

• Manufacturer: BURNDY
• UPC: 78181048643

Technical Specifications

• Temperature Rating: 105 Deg C
• Voltage Rating: 600 Volt
• Barrel Length: 0.26 Inch
• Overall Dimension: 0.95 Inch Length x 0.41 Inch Width
• Material: Electrolytic Tin Plated Copper
