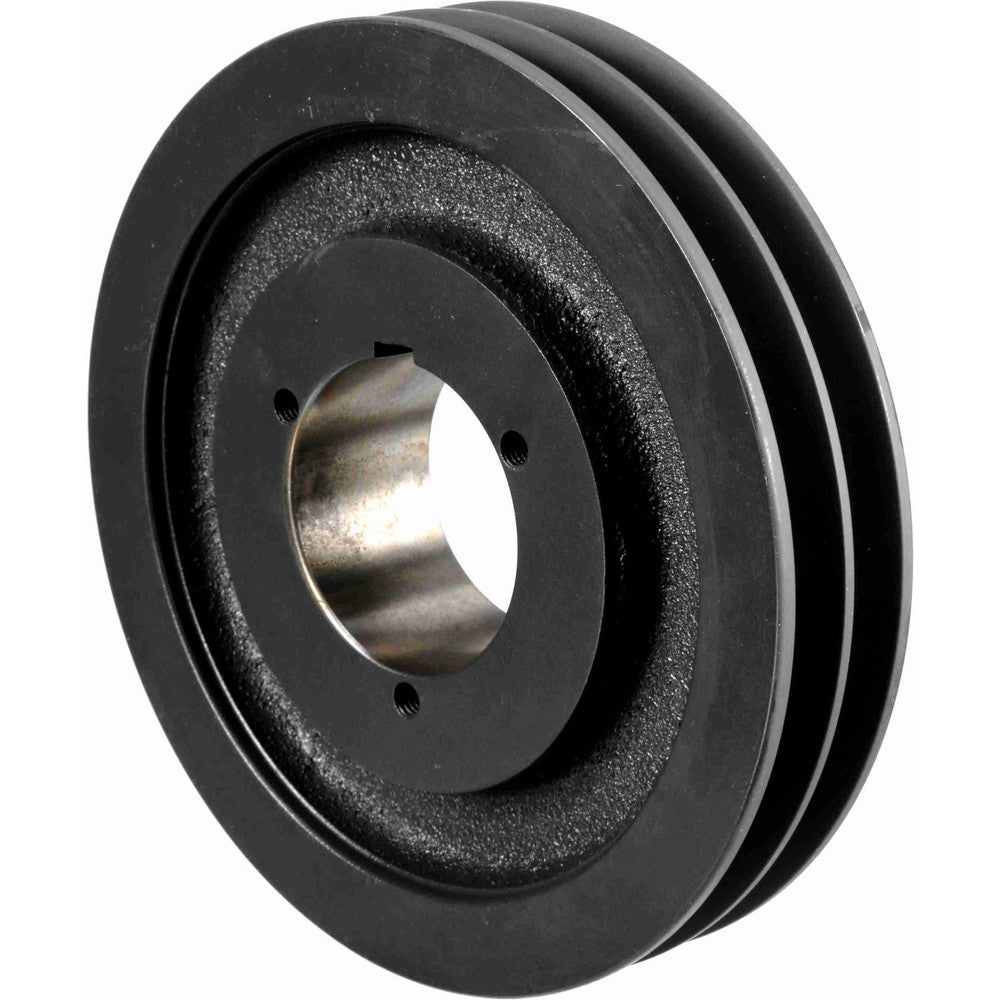

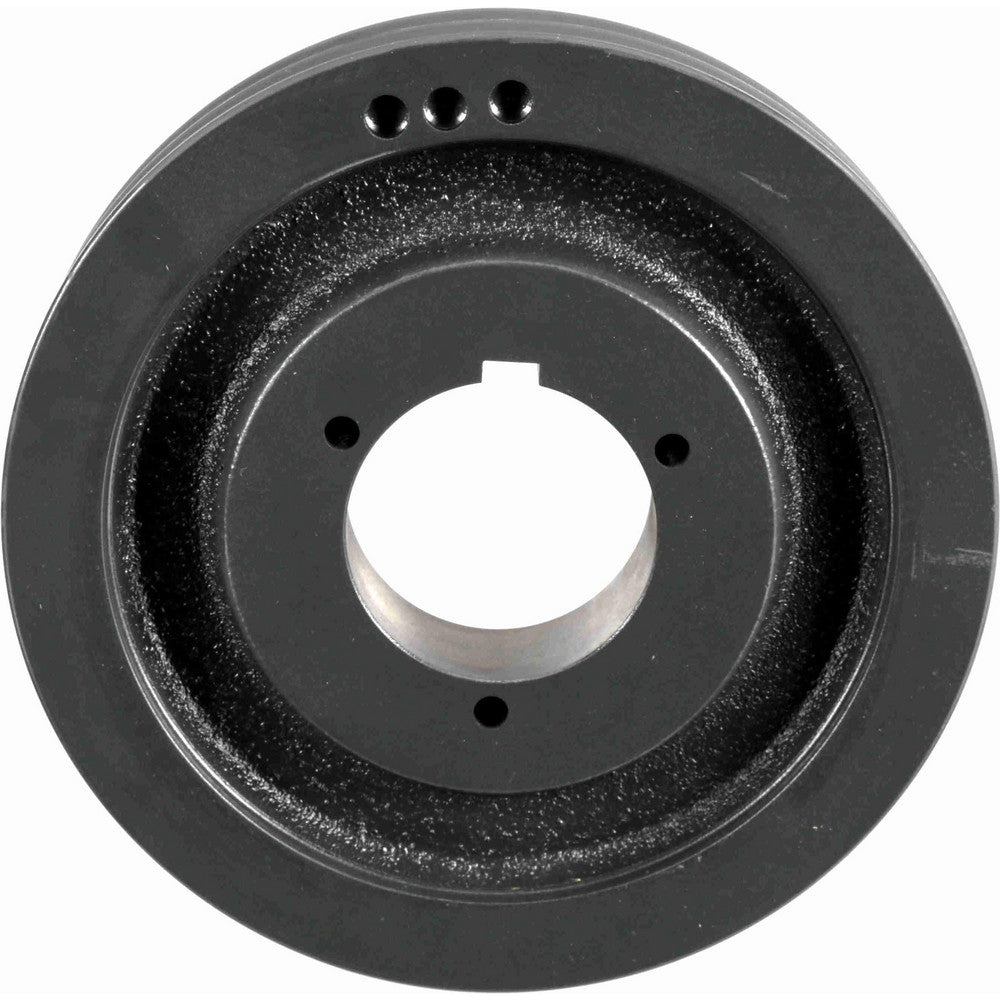

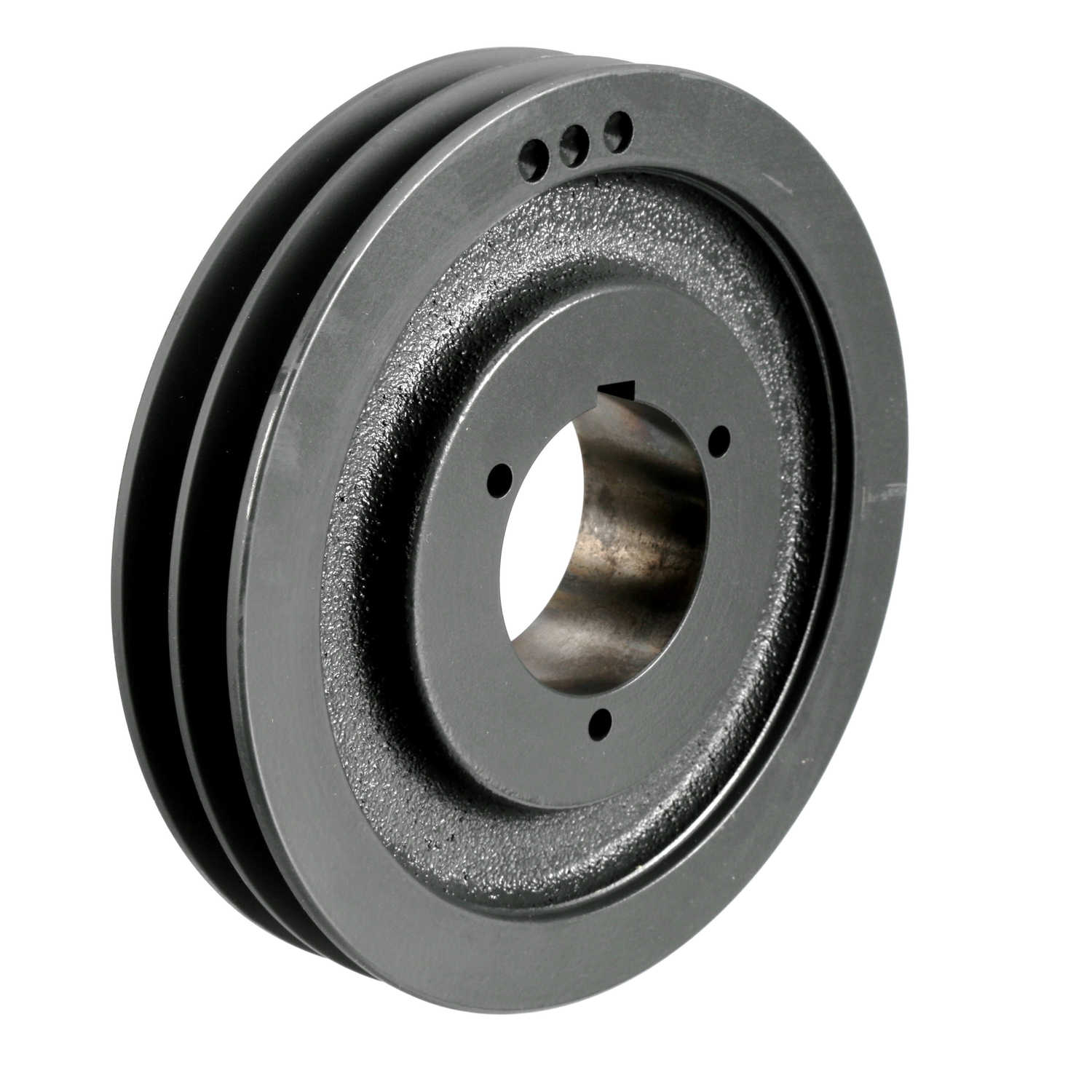

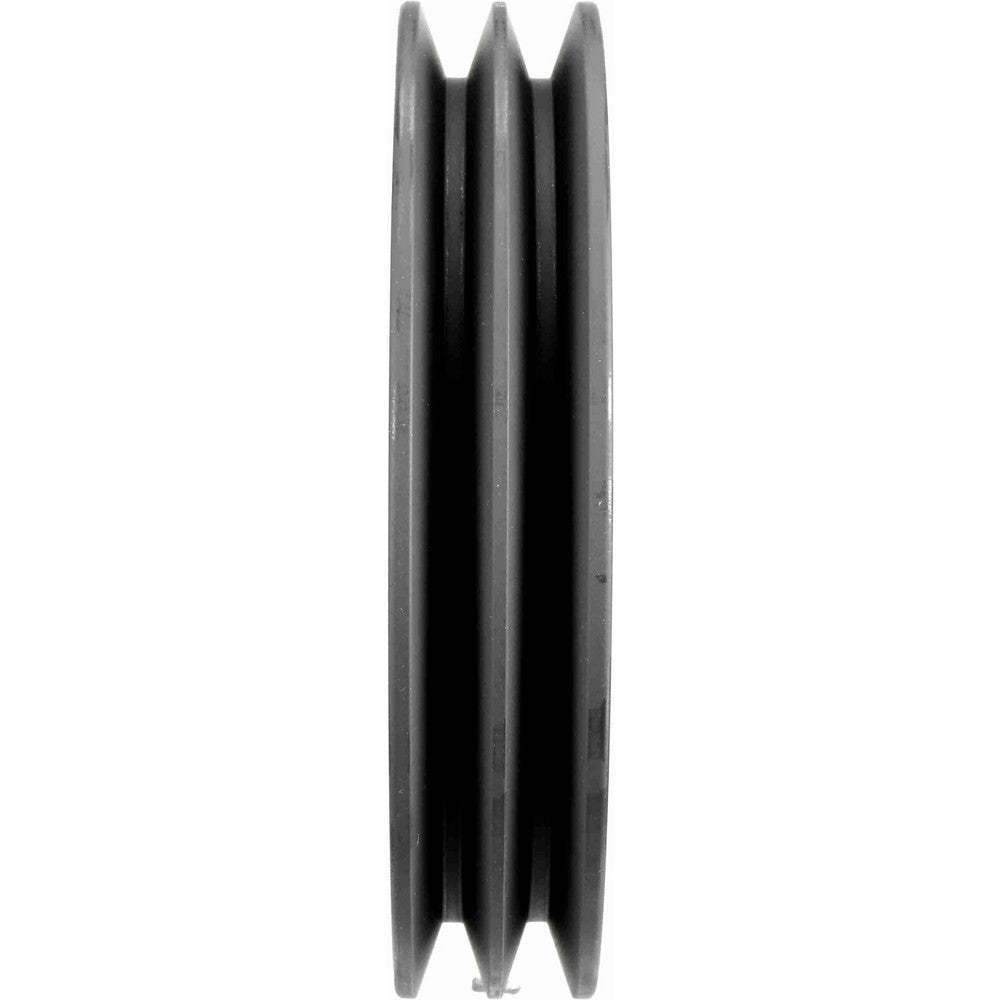

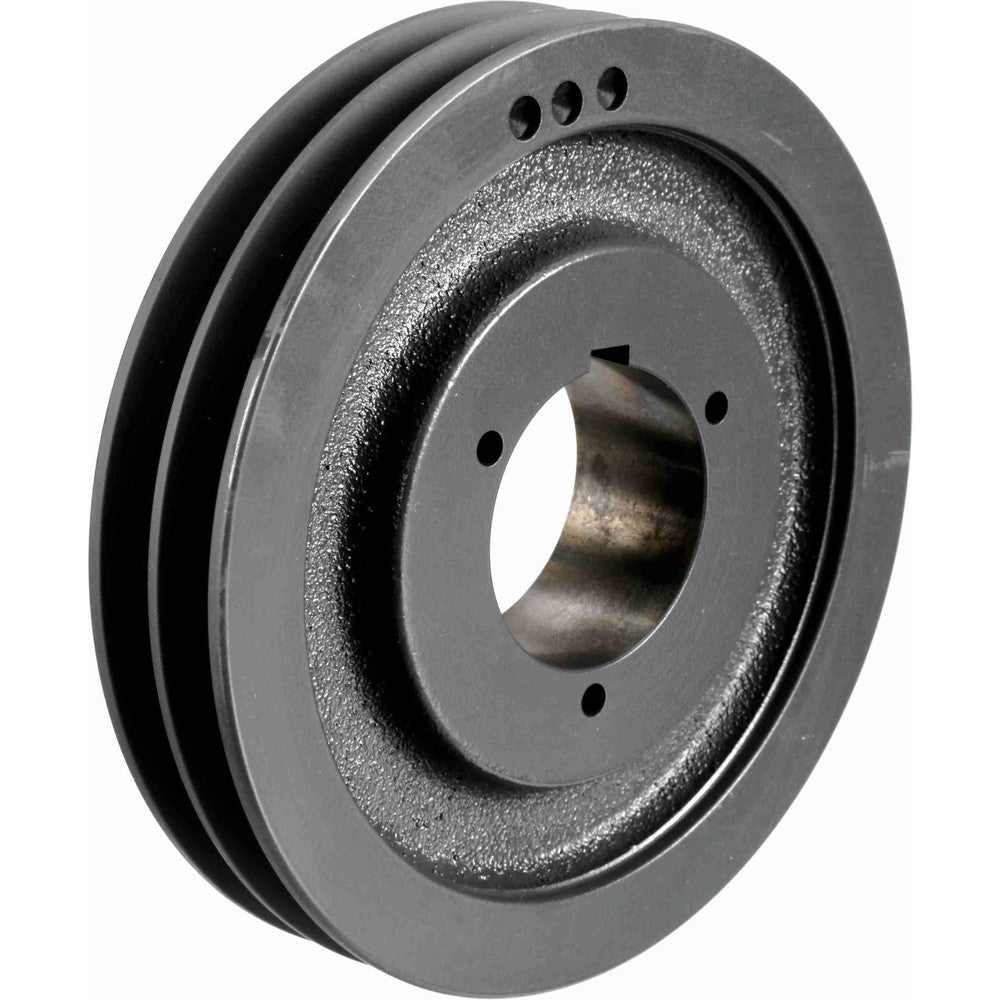

Browning 2TB86 Q1 Sheave

Product Description

The Browning 2TB86 Q1 Sheave is designed with a split taper bushing system that ensures a secure fit to both the shaft and hub. This sheave is made from close grain cast iron for durability and precision. It is compatible with both A and B belts, making it versatile for different applications.

• Browning Split Taper Bushing is included.
• Combination Groove allows for A and B belt operation.
• Constructed from close grain cast iron for strength.

Product Highlights

This sheave accommodates various pitch diameters and horsepower requirements, making it suitable for multiple industrial applications.

Product Information

Standard Information

• Brand: Browning
• MPN: 2TB86

Technical Specifications

• Belt Section Size: A, B
• Bore Type: Requires Bushing
• Bushing Series: Q1
• Material: Cast Iron
• Bushing Bore Range: Three fourths to two and eleven sixteenths inch
• Datum Diameter: Eight point two inches (A), Eight point six inches (B)
• Pitch Diameter: Eight point four inches (A), Eight point nine inches (B)
• Overall Width: Two point seven eight one three inches
