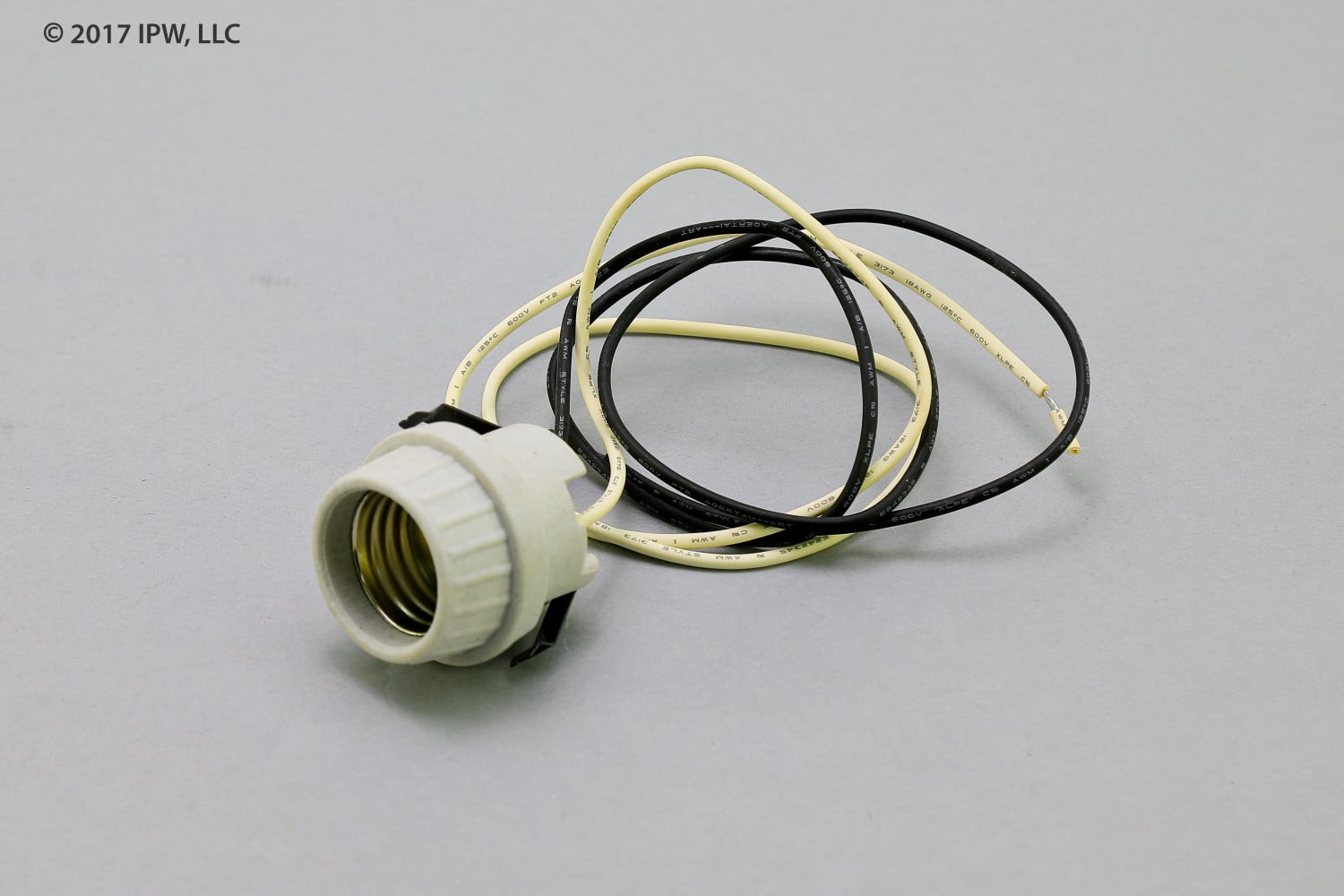

Broan-nutone sv03685 Warming Lamp Socket

Product Description

The BROAN-NUTONE sv03685 is a replacement lamp socket designed for halogen infrared warming lamp assemblies. This socket provides the electrical connection point that secures and powers the halogen infrared bulb within the fixture. It is a direct service replacement for the discontinued part SV02264. Electricians and HVAC technicians handling bathroom exhaust fan and heater combination units are the primary installers of this component. The sv03685 restores proper lamp function when the original socket shows signs of heat damage, corrosion, or failed contacts.

This lamp socket is used in residential bathroom heating and ventilation fixtures that incorporate halogen infrared warming lamps. These combination units are commonly ceiling-mounted and serve dual roles as exhaust fans and supplemental heat sources. The socket replacement is a routine service repair performed when a fixture fails to illuminate or heat despite a known-good bulb being installed.

Key Features

• Direct OEM replacement for discontinued part SV02264
• Designed specifically for halogen infrared warming lamp assemblies
• Restores proper electrical contact and lamp retention in the fixture
• OEM-style fit reduces service time during in-field replacement

Compatibility

The sv03685 replaces superseded BROAN-NUTONE part SV02264. Designed as an OEM-style replacement socket for BROAN-NUTONE halogen infrared warming lamp fixtures. Verify fixture model compatibility against BROAN-NUTONE service documentation before ordering.

Installation Notes

Installation should be performed by a qualified electrician or licensed HVAC technician. Always shut off power at the circuit breaker and verify absence of voltage before disassembling the fixture or handling the socket. Allow the halogen lamp and socket to cool completely before servicing, as halogen infrared components retain significant heat after operation. Follow all applicable NEC requirements for fixture repair and replacement work.

Technical Specifications

• Application: Halogen Infrared Warming Lamp Socket
• Replaces Part: SV02264

Standard Information

• Brand: BROAN-NUTONE
• Manufacturer Part Number: sv03685
