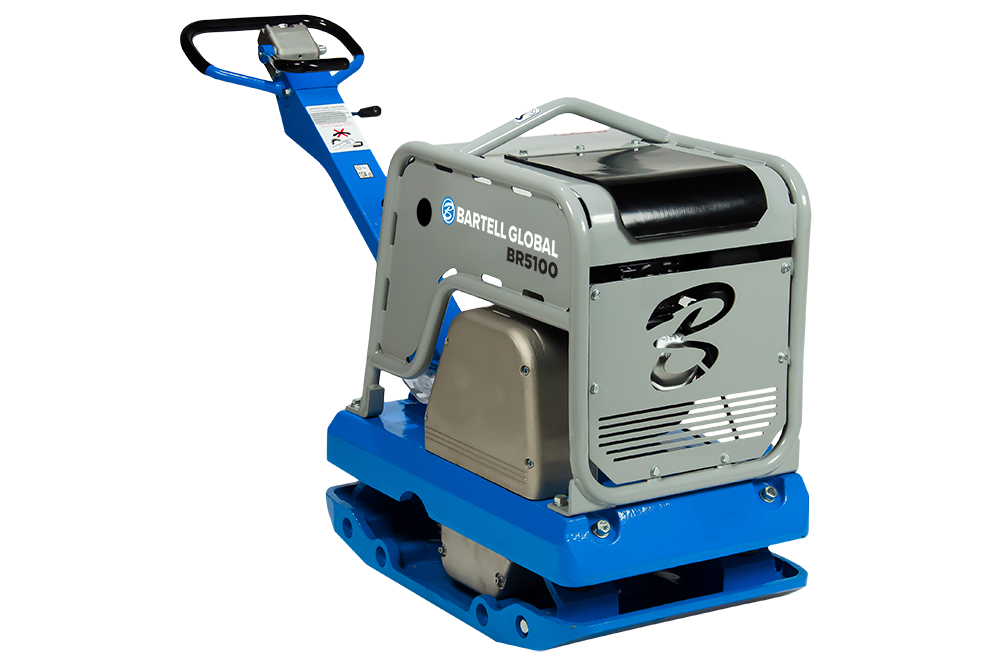

Brk BR5100 Reversible Plate Compactor Diesel

Product Description

The BRK BR5100 is the largest reversible plate compactor in the Bartell fleet, built for high-force compaction on demanding jobsite applications. It runs on a Yanmar L100 diesel engine and features a fully hydraulic reversing mechanism that allows the operator to switch between forward, backward, and spot compaction without stopping. The cast aluminum throttle lever provides durable, professional-grade control, while the integrated lifting bale supports safe loading and unloading. A full roll cage and cast aluminum belt cover protect both the clutch and engine from jobsite impact and debris.

The BR5100 is designed for compacting sand, trench fills, and patching applications where high travel speed and precise directional control are required. It is suited for commercial and municipal paving, utility trench restoration, and similar heavy-duty compaction work. Both key start and recoil start options are available, giving operators flexibility depending on jobsite conditions. Optional extension plates are available to further increase production rates on wider passes.

Key Features

• Fully hydraulic reversing mechanism for forward, backward, and spot compaction without stopping
• Yanmar L100 diesel engine with key start and recoil start options
• Cast aluminum throttle lever for durable, professional control
• Integrated lifting bale for safe machine loading and unloading
• Full roll cage and cast aluminum belt cover protecting clutch and engine
• Ductile iron bases for increased structural strength
• Compatible with optional extension plates to expand compaction width and production rate

Compatibility

Designed as a heavy-duty reversible plate compactor specialized for sand, trench, and patching compaction applications requiring high force and full-speed bidirectional travel.

Installation Notes

The BR5100 is operated and serviced by qualified compaction equipment operators and diesel mechanics. Before performing any maintenance, shut down the engine and allow all moving parts to come to a complete stop. Consult the manufacturer service manual for fuel system, hydraulic system, and engine service procedures. Ensure the machine is secured on level ground before using the lifting bale for transport or loading.
