Bravo BRV-M12WM-230VI 12000 Btu Wall Mount Mini Split Indoor Unit Heat Pump R32 208-230V Inverter

Product Description

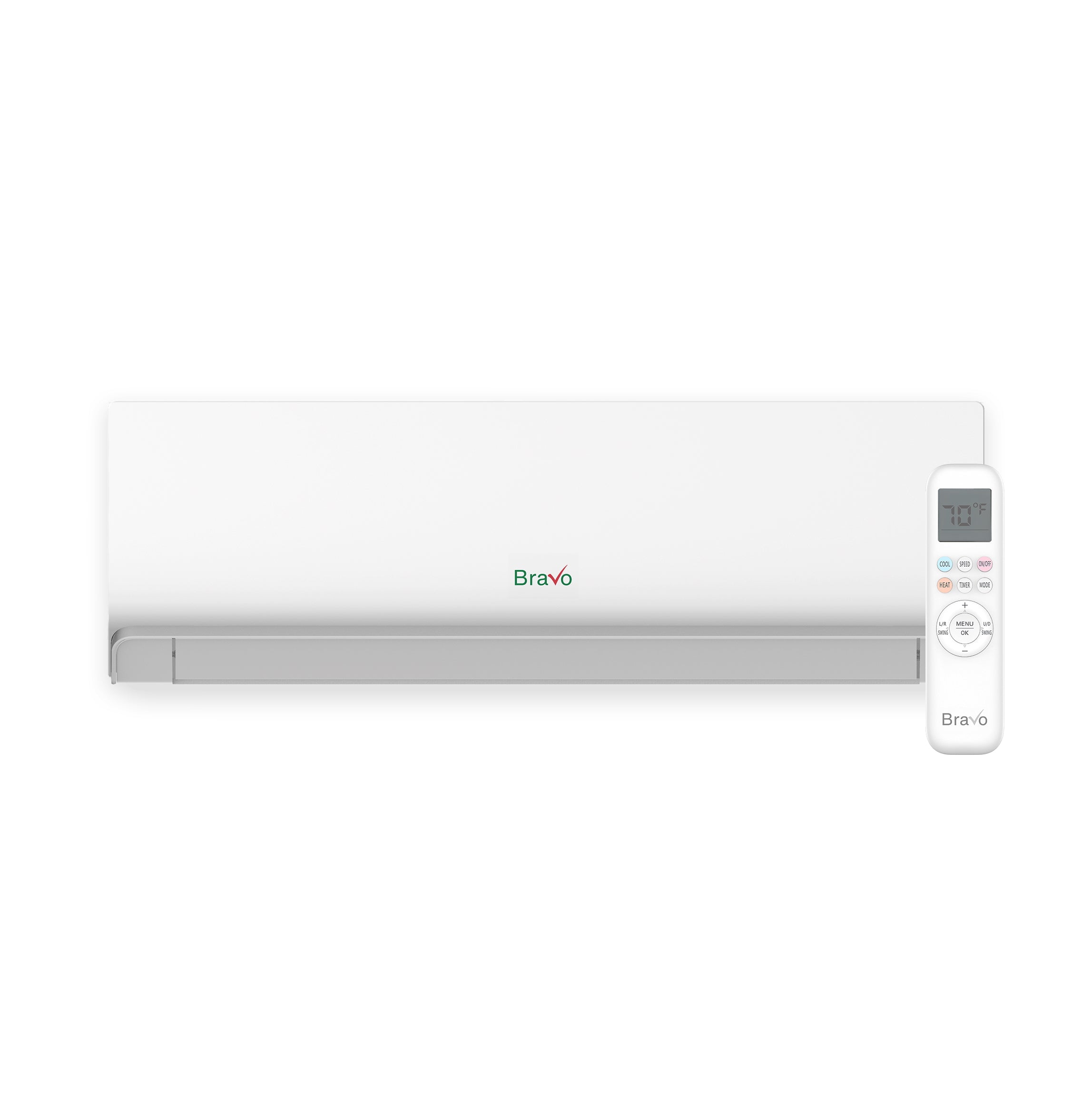

The Bravo BRV-M12WM-230VI is a 12,000 BTU wall-mount indoor unit designed for ductless mini split heat pump systems. It operates on 208-230V single-phase 60Hz power and uses R32 refrigerant for efficient heat transfer with a lower global warming potential than older refrigerant types. Rated at 12,000 BTU/h for cooling and 12,300 BTU/h for heating, this unit supports inverter-driven variable-speed operation that matches output to load rather than cycling on and off. HVAC technicians install this unit as a high-wall evaporator in single-zone or multi-zone ductless configurations. It includes Eco Mode, Super Mode, and Sleep Mode for flexible operation, along with an LED display for status monitoring.

The BRV-M12WM-230VI is suited for residential and light commercial applications where ductwork is impractical or not available. It mounts high on the wall in a single room or zone and connects to a compatible Bravo Milano Series multi-zone outdoor unit. Documented system configurations include pairing with 2-zone, 3-zone, and 4-zone outdoor units such as the BRV-M18-230VO, BRV-M30-230VO, and BRV-M36-230VO, covering total system capacities from 18,000 BTU to 36,000 BTU. This indoor unit is also sold as part of bundled multi-zone kits alongside other Milano Series wall-mount and floor-ceiling indoor units.

Key Features

• 12,000 BTU/h cooling capacity and 12,300 BTU/h heating capacity
• Inverter compressor technology for variable-speed, load-matched operation
• R32 refrigerant with reduced environmental impact compared to R410A
• 208-230V single-phase 60Hz power input with 5.0 amp max fuse rating
• Eco Mode, Super Mode, and Sleep Mode for customizable comfort and efficiency
• LED display for unit status and control feedback
• Compatible with Bravo Milano Series multi-zone outdoor units across 2-zone, 3-zone, and 4-zone configurations

Compatibility

The BRV-M12WM-230VI is a Bravo Milano Series wall-mount indoor unit compatible with Bravo Milano Series multi-zone outdoor units including the BRV-M18-230VO, BRV-M30-230VO, and BRV-M36-230VO. It has been documented in 2-zone, 3-zone, and 4-zone system configurations alongside other Milano Series indoor units (BRV-M09WM-230VI, BRV-M18WM-230VI, and others).

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 refrigerant handling requirements. Shut off all power to the system at the disconnect and outdoor unit before making line set, electrical, or control wiring connections. The wall-mount cassette requires a properly leveled high-wall bracket and a line set penetration through the exterior wall sized to the unit specifications. R32 is classified as mildly flammable — follow all applicable safety precautions regarding ignition sources during brazing and leak testing.

Technical Specifications

• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: 12,300 BTU/h
• Power Supply: 208-230V, 1-Phase, 60Hz
• Max Fuse: 5.0 amps
• Refrigerant Type: R32
• Unit Type: Wall Mount Indoor Evaporator
• Technology: Inverter
• Operating Modes: Eco Mode, Super Mode, Sleep Mode

Standard Information

• Brand: Bravo
• Manufacturer Part Number: BRV-M12WM-230VI
