Bradley s19-200b Faucet Mount Eyewash Station

Product Description

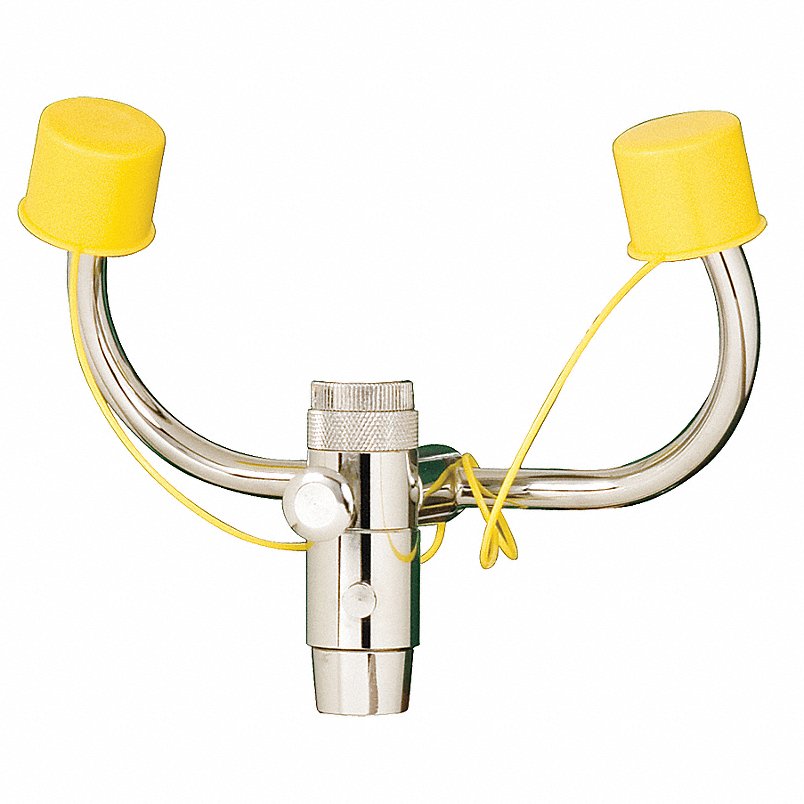

The BRADLEY s19-200b is a supplemental faucet-mount eyewash station designed to flush dirt, dust, and other nuisance irritants from the eyes. It attaches directly to a standard faucet, making it a quick-deployment option where a dedicated plumbed eyewash is not immediately accessible. The unit features a chrome-plated brass spray head measuring 1.5 inches in diameter with a covered spray head style, and an inlet pipe constructed from chrome-plated brass. Licensed plumbers and safety officers typically specify this unit as a temporary complement to a fully ANSI-compliant eyewash installation in commercial or industrial environments.

This eyewash station is suited for use in facilities where workers are exposed to dust, particulates, or other eye irritants and where a dedicated eyewash station is present but supplemental coverage is needed at a sink location. It is plumbed via a 43/50-inch, 27-thread female inlet connection, attaching to a standard faucet without additional bowl hardware. It is appropriate for both light industrial and commercial settings where temporary or supplemental eye-flush capability is required at an existing sink.

Key Features

• Faucet-mount installation attaches directly to a standard faucet for rapid deployment
• 43/50-inch inlet with 27-thread female connection for standard faucet compatibility
• 1.5-inch diameter covered spray head delivers consistent eye-flush coverage
• Chrome-plated brass construction on both inlet pipe and spray head for durability
• ANSI Z358.1 compliant and barrier-free design
• Minimum operating temperature of 32 degrees F suitable for most indoor environments

Compatibility

Designed as a supplemental faucet-mount eyewash unit compatible with standard faucets accepting a 43/50-inch, 27-thread female inlet connection. For use in facilities maintaining ANSI Z358.1 compliant eyewash programs where supplemental coverage is required at an existing sink location.

Installation Notes

Installation is performed by a licensed plumber or qualified maintenance technician. Shut off water supply to the faucet before attaching the unit to the faucet outlet. Verify the existing faucet thread size matches the 43/50-inch 27-thread female inlet before installation. This unit is intended as a supplement to, not a replacement for, a fully ANSI-compliant primary eyewash station per ANSI Z358.1 requirements.

Technical Specifications

• Coverage: Eyes
• Color: Silver
• Installation Type: Plumbed
• Inlet Pipe Gender: Female
• Inlet Pipe Size: 43/50 inches
• Inlet Pipe Thread Type: 27 Thread
• Spray Head Diameter: 1.5 inches
• Spray Head Style: Covered
• Spray Head Material: Chrome-Plated Brass
• Pipe Material: Chrome-Plated Brass
• Minimum Operating Temperature: 32 degrees F
• For Maximum Wall Thickness: 8 inches
• ADA Compliant: No
• ANSI Compliant: Yes
• Barrier Free: Yes
• Standards: ANSI Z358.1
• Series: Classic
• UNSPSC: 46181810
• Country of Origin: Taiwan (subject to change)

Standard Information

• Brand: BRADLEY
• Manufacturer Part Number: s19-200b
