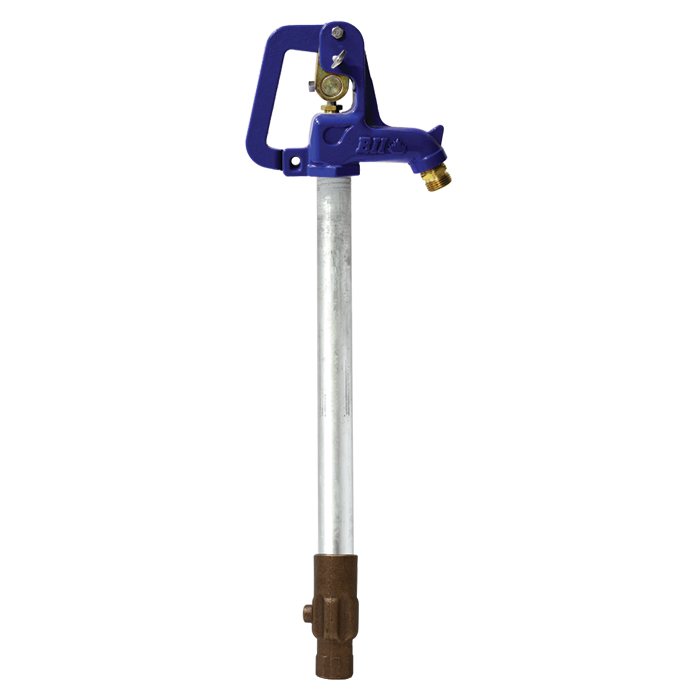

BOSHART YHP-05NL Yard Hydrant 5 Ft Bury Depth Replacement MPN

Product Description

The BOSHART YHP-05NL is a frost-proof yard hydrant with a 5 ft bury depth. This hydrant features a cast iron head and a handle shut-off mechanism. It is equipped with a locking eye suitable for a padlock. The end style is 3/4 inch nominal FNPT and has a stand pipe of 1 inch.

• Lead-Free Design
• Frost-Proof Construction
• Locking Eye for Security

Product Highlights

This hydrant is designed for outdoor use in cold climates, allowing for easy access to water while preventing freezing.

Product Information

Standard Information

• Material: Galvanized Bronze, Cast Iron
• Finish: Galvanized

Technical Specifications

• Pressure Rating: 125 psi
• Shut-Off Type: Handle
• Rod Diameter: 3/8 inch
• Overall Length: 93 inches
• Temperature Rating: 120 degrees F
• Nominal Size: 3/4 inch
• Bury Depth: 5 ft
• Inlet Connection: 3/4 inch FPT
• Hose Connection: 3/4 inch garden hose
• Stand Pipe: 1 inch
• Connecting Rod: 3/8 inch steel
• Total Length: 7 feet 8 inches
