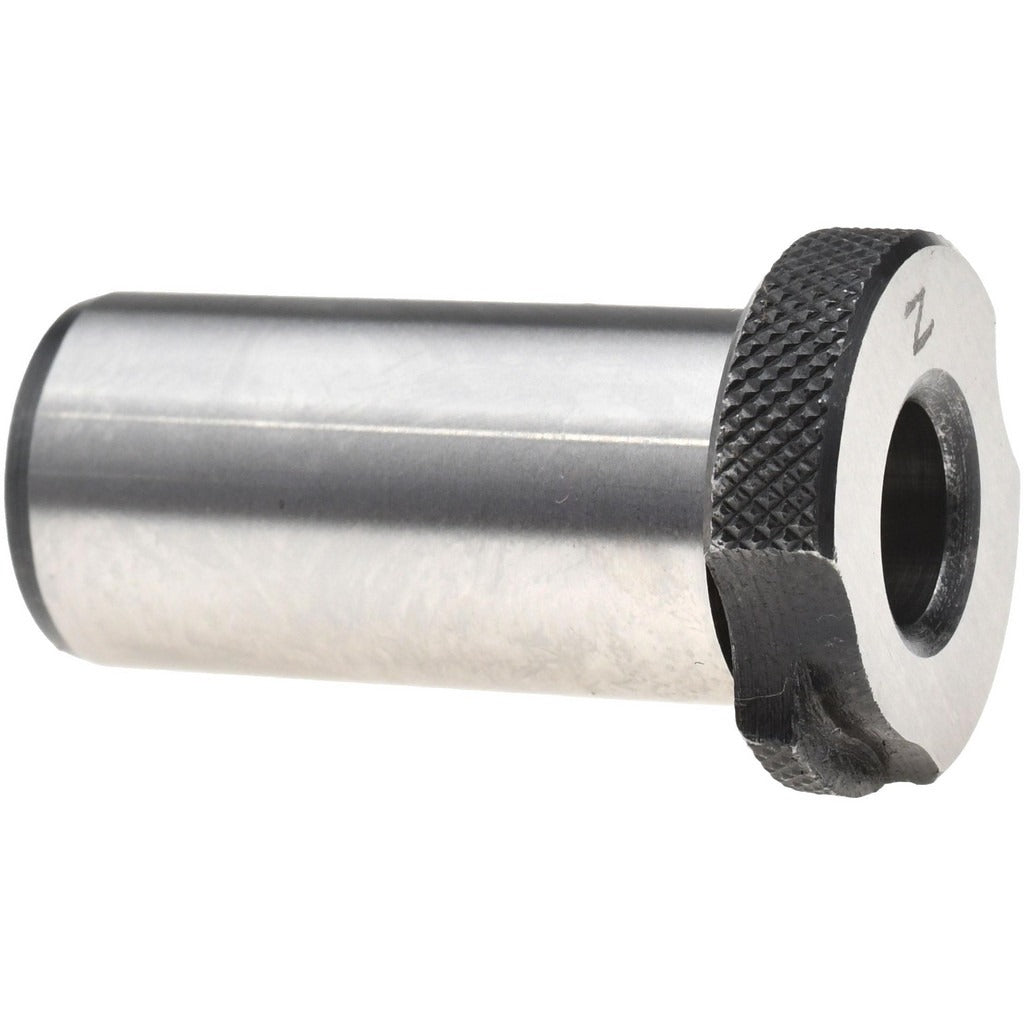

Boneham SP00008960 Slip-fixed Drill Bushing 0.75 in

Product Description

The BONEHAM SP00008960 is a slip-fixed drill bushing designed to guide cutting tools with precision in jig and fixture applications. Classified under industry code SF, this renewable bushing installs by slipping into a liner bushing and locking in place, allowing for quick changeout without disturbing the fixture. The body measures 0.75 inches in outside diameter with a length under head of 1.5 inches. The head outside diameter is approximately 1.047 inches and the head height is 0.25 inches. This bushing is installed by machinists, toolmakers, and production fixture technicians in manufacturing and metalworking environments.

Slip-fixed bushings are used in drill jigs and precision fixtures where repeatable hole location is critical. The SF designation indicates a slip-and-lock style that pairs with a compatible liner bushing already pressed into the jig plate. This style is common in production environments where a single fixture must accommodate multiple tool sizes or where bushings require periodic replacement due to wear. The SP00008960 suits applications calling for a 0.75-inch body OD with an inside diameter designated as size Z.

Key Features

• SF industry code slip-fixed installation method for fast field changeout
• Renewable bushing design extends fixture service life
• 0.75 inches body outside diameter for standard liner bushing compatibility
• 1.5 inches length under head provides tool guidance depth for typical jig plate thicknesses
• Inside diameter size designation Z for application-specific tool guidance
• Head height of 0.25 inches and head OD of approximately 1.047 inches for positive seating

Compatibility

Designed as an OEM-style replacement or production-use slip-fixed drill bushing for jig fixtures requiring a 0.75-inch body OD SF-style renewable bushing.

Installation Notes

Slip-fixed bushings are installed and removed by toolmakers or machinists using the appropriate bushing driver or wrench. The fixture must contain a properly installed liner bushing of matching body OD before the SF bushing is inserted and rotated to lock. Inspect the liner bushing for wear or damage before installing a replacement slip-fixed bushing. Follow applicable shop safety procedures and ensure the workpiece is secured and the machine is powered down before changing bushings at the fixture.
