Boneham SF6416MX Slip-fixed Drill Bushing 23/32 in Id

Product Description

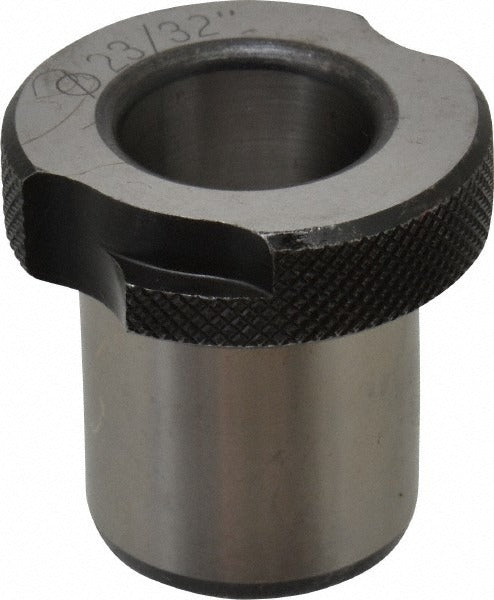

The BONEHAM SF6416MX is a slip-fixed drill bushing designed to guide drill bits, reamers, and other cutting tools with precision during machining and fabrication operations. Built to industry code SF, this bushing features a 23/32 inch inside diameter and a 1 inch body outside diameter, with a 1 inch length under the head. Constructed from steel, it delivers the hardness and wear resistance required for repetitive tooling applications. A headed design keeps the bushing seated securely in the jig plate, and the renewable construction means the bushing can be replaced without replacing the entire jig assembly.

This slip-fixed bushing is suited for use in drill jigs across metalworking, tool-and-die, and general manufacturing environments. The slip-fixed installation method allows the bushing to be inserted and removed by hand, making it practical in setups where multiple operations are performed at the same hole location using different tool diameters. It is compatible with LS-2 lock screws, which secure the bushing in the jig liner during operation. Machinists, tool makers, and production technicians typically install and service this component.

Key Features

• Slip-fixed installation allows quick bushing changes at a single jig location
• 23/32 inch inside diameter with a tight tolerance of +0.0001 to +0.0005 inches for accurate tool guidance
• 1 inch body outside diameter and 1 inch length under head for positive jig plate fit
• Steel construction provides hardness and durability under repeated drilling cycles
• Headed design with 1-27/64 inch head outside diameter and 3/8 inch head height keeps bushing flush and seated
• Renewable bushing design allows replacement without scrapping the jig liner
• Compatible with LS-2 lock screws for positive retention during operation

Compatibility

Compatible with LS-2 lock screws. Designed as an OEM-style renewable slip-fixed drill bushing for use in standard SF-series jig liner applications.

Installation Notes

Installation is performed by hand insertion into a matching jig liner; no press equipment is required for slip-fixed bushings. Secure with an LS-2 compatible lock screw to prevent rotation or lifting during the drilling cycle. Inspect the inside diameter for wear or scoring during routine maintenance and replace the bushing as needed without disturbing the liner. Always verify the bushing is fully seated and the lock screw is engaged before beginning any drilling operation.
