Boneham P2612GF Press Fit Headless Drill Bushing

Product Description

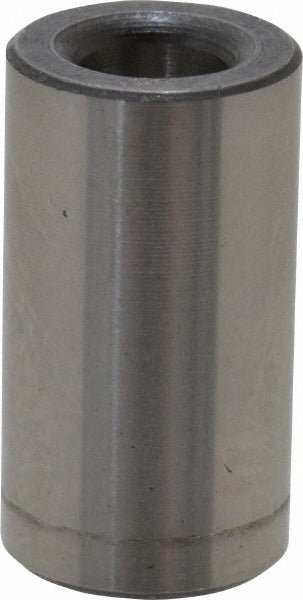

The BONEHAM P2612GF is a press fit headless drill bushing designed to guide cutting tools with precision in jig and fixture applications. Built to industry code P, this bushing features a 0.204 inch inside diameter, a 13/32 inch outside diameter, and a 3/4 inch overall length. Constructed from steel, it is intended for permanent installation in drill jigs where a flush, headless profile is required. The inside diameter is held to a tolerance of plus 0.0001 to plus 0.0004 inches, ensuring consistent tool guidance and accurate hole location. Machinists and toolmakers install this component when repeatable drilling accuracy across production runs is required.

This bushing is suited for use in drill jigs on machine shop floors, production fixtures, and precision assembly operations. The headless design sits flush with the jig plate surface, making it appropriate for applications where a protruding head would interfere with workpiece seating or clamping. It is not renewable and is intended as a fixed, long-term installation once pressed into the jig body. Typical users include tool and die makers, machinists, and fixture builders working in metalworking and general manufacturing environments.

Key Features

• Press fit installation for permanent, fixed positioning in drill jig plates
• Headless design provides a flush profile that does not interfere with workpiece clamping
• 0.204 inch inside diameter with a tight tolerance of plus 0.0001 to plus 0.0004 inches for accurate tool guidance
• Steel construction for durability in repetitive drilling operations
• Industry code P classification for standardized jig bushing interchangeability
• Compact 3/4 inch overall length suits standard jig plate thicknesses

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard drill jig plates and fixtures accepting press fit headless bushings with a 13/32 inch outside diameter bore.

Installation Notes

Installation is performed by qualified machinists or toolmakers using a press or arbor press to seat the bushing flush into a prepared jig plate bore. The receiving bore must be machined to the appropriate interference fit tolerance before installation. Once pressed in, this bushing is not designed for removal or replacement. Always verify bore size and alignment before pressing to avoid damaging the bushing or the jig plate.
