Boneham CB00001314 Slip-fixed Drill Bushing Steel

Product Description

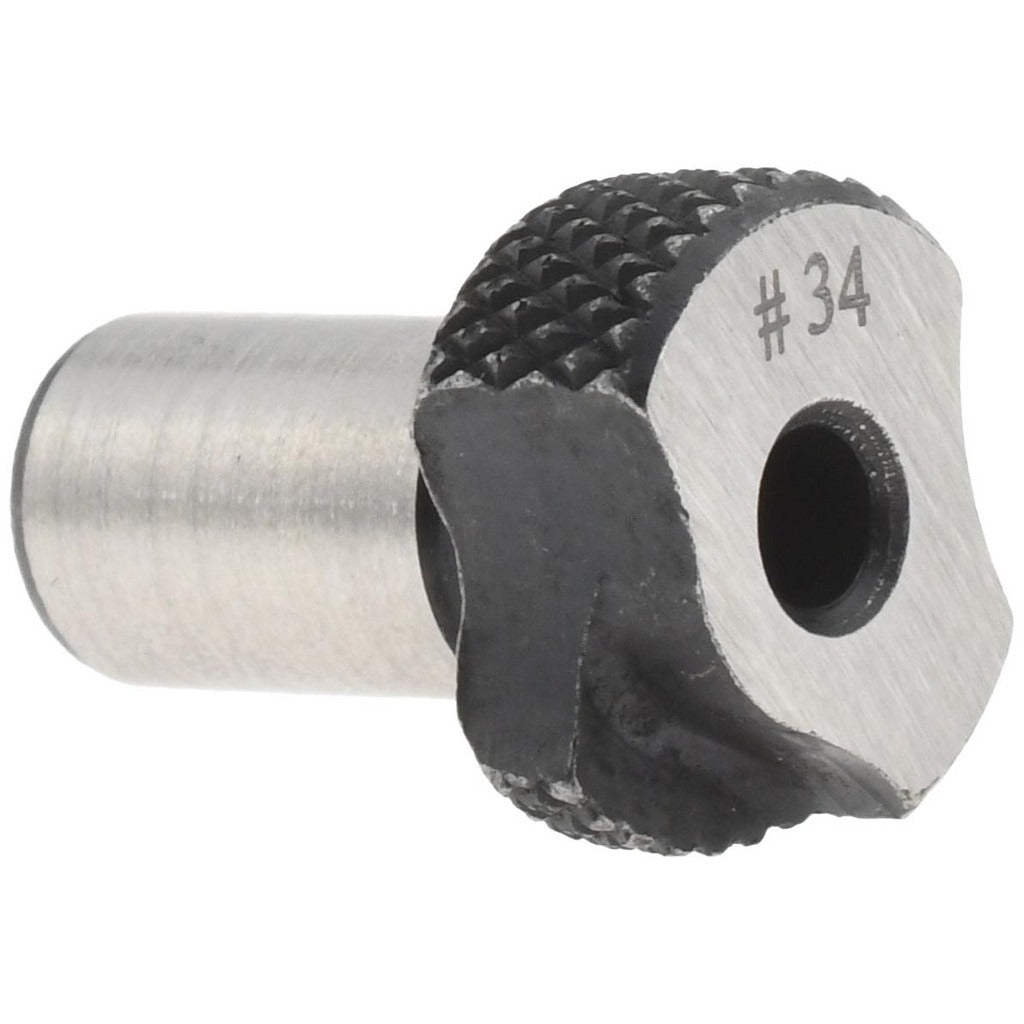

The BONEHAM CB00001314 is a slip-fixed drill bushing designed to guide cutting tools with precision in jig and fixture applications. Built to industry code SF, this bushing features a 0.111 inch inside diameter, a 5/16 inch body outside diameter, and a 1/2 inch length under the head. Constructed from steel, it provides the wear resistance and dimensional stability required in production drilling operations. The headed design seats positively in a counterbored liner, and the renewable construction allows field replacement without disturbing the press-fit liner already installed in the jig plate.

This bushing is suited for use in drill jigs, fixture plates, and tooling setups where repeatable hole location is critical. Typical applications include production machining environments in aerospace, automotive, and general fabrication shops. The LS-1 lock screw compatibility allows the bushing to be locked securely in position during drilling, reaming, or spot-facing operations, preventing rotation under cutting loads. It is used by toolmakers, machinists, and fixture builders working with standard jig bushing systems.

Key Features

• Slip-fixed (SF) industry code — seats in a press-fit liner bushing and locks via LS-1 compatible lock screw
• 0.111 inch inside diameter with a tolerance of +0.0001 to +0.0004 inches for precise tool guidance
• 5/16 inch body outside diameter and 35/64 inch head outside diameter
• 1/2 inch length under head accommodates standard jig plate thickness
• Steel construction for wear resistance and dimensional stability
• Renewable design allows replacement without removing the installed liner

Compatibility

Compatible with LS-1 lock screws. Designed as an OEM-style renewable slip-fixed drill bushing for use with standard press-fit liner bushings in jig and fixture tooling systems.

Installation Notes

Installation is performed by toolmakers or machinists during jig assembly or bushing replacement. The slip-fixed bushing is inserted into an existing press-fit liner bushing and secured with an LS-1 lock screw. Ensure the mating liner bushing bore and the bushing body are free of chips and burrs before seating. Follow applicable tooling and fixture standards for your shop or industry when specifying bushing fit and replacement intervals.
