Boneham CB00001219 Headless Drill Bushing P 0.199 in Id

Product Description

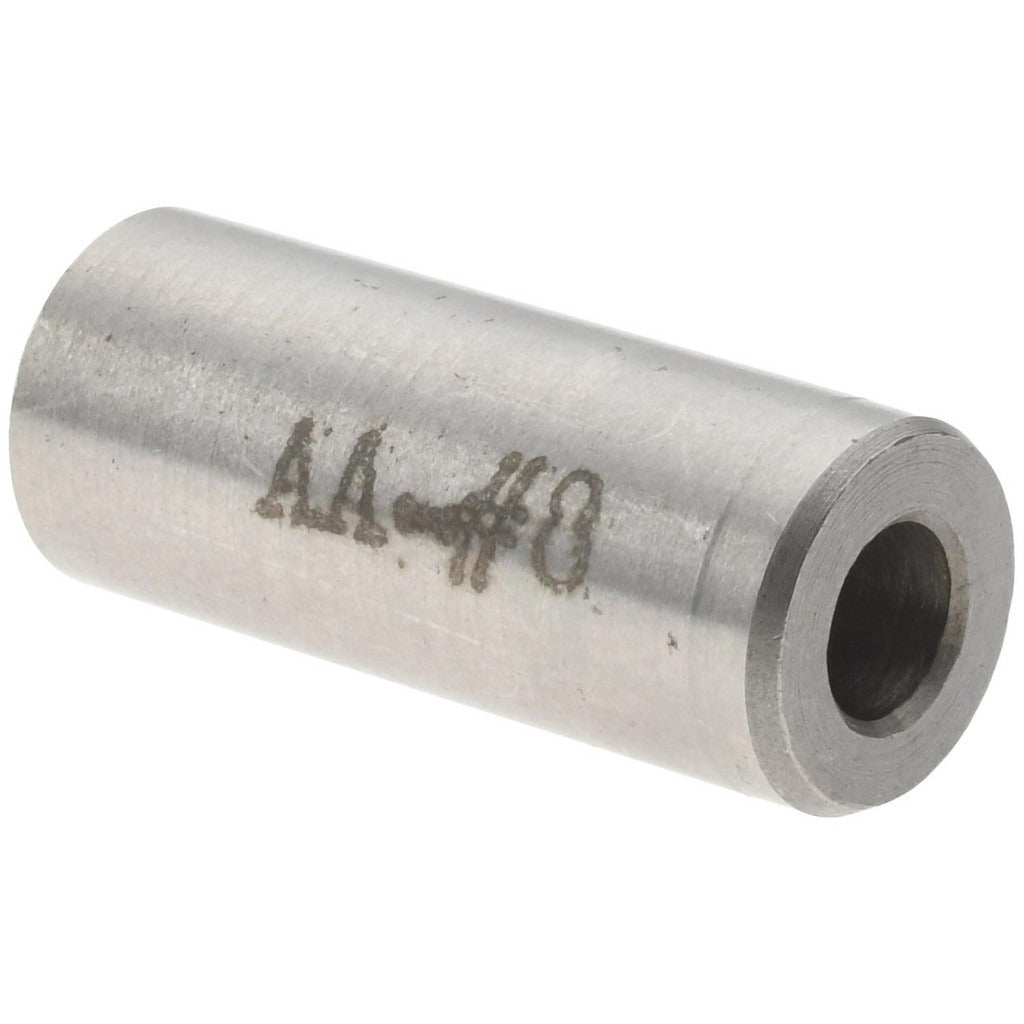

The BONEHAM CB00001219 is a press fit headless drill bushing designed to guide drill bits and cutting tools with precision in jig and fixture applications. Manufactured from steel, this bushing carries industry code P and features an inside diameter of 0.199 inches with a body outside diameter of 13/32 inches and an overall length of 1 inch. It installs without a head, seating flush within a bored hole via press fit. Machinists, toolmakers, and production shop technicians install this type of bushing into drill jigs to maintain accurate hole location and extend jig plate life across repeated drilling operations.

This bushing is suited for production drilling, reaming, and boring setups in metal fabrication and machining environments. The headless profile makes it appropriate for applications where the bushing must sit flush with the jig plate surface, preventing interference with workpiece clamping or part clearance. The 0.199 inch inside diameter corresponds to a Number 8 wire gauge drill size, making it compatible with that drill class in standard jig work. It is a non-renewable, permanent-installation bushing intended for fixed jig tooling.

Key Features

• Press fit installation for secure, permanent seating in jig plates
• Headless design sits flush with jig plate surface to avoid workpiece interference
• Industry code P designation for standard press fit headless drill bushing classification
• Inside diameter tolerance of plus 0.0001 to plus 0.0004 inches for precise tool guidance
• Steel construction for durability in repetitive production drilling applications
• Non-renewable design intended for fixed, long-term jig tooling installations

Compatibility

Designed as an OEM-style replacement or direct-use press fit headless drill bushing for standard drill jig and fixture tooling requiring a P-series bushing with 0.199 inches inside diameter and 13/32 inches outside diameter.

Installation Notes

Installation is performed by toolmakers or machinist technicians using an arbor press to drive the bushing into a properly sized and toleranced bore in the jig plate. The receiving bore must be sized to achieve correct interference fit per standard tooling practice before pressing the bushing in place. Do not attempt to install by hammer striking directly on the bushing face, as this can damage the bore or distort the bushing. Once pressed in, this bushing is not designed for removal and reuse.
