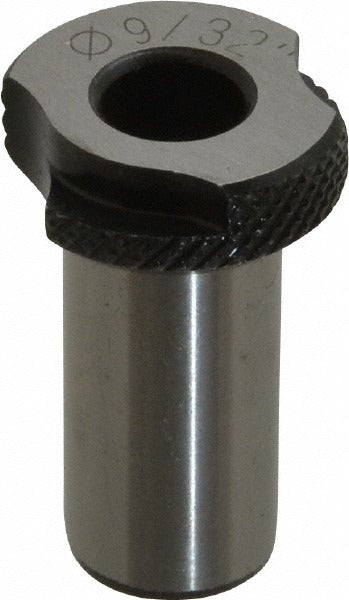

Boneham CB00001143 Slip-fixed Drill Bushing 9/32 in

Product Description

The BONEHAM CB00001143 is a slip-fixed (SF) drill bushing used to guide cutting tools with precision during drilling, reaming, and boring operations. Manufactured from steel, it features a 9/32 inch inside diameter and a 1/2 inch body outside diameter, with a 1 inch length under the head. The headed design seats flush against the jig plate and resists axial pullout during tool engagement. This bushing is designed to be renewable, allowing it to be removed and replaced without reworking the jig plate. Inside diameter tolerance is held to +0.0001 to +0.0005 inches for consistent tool guidance across production runs.

Slip-fixed bushings of this type are used in drill jigs and fixture assemblies across machining, metalworking, and fabrication environments. The SF designation indicates the bushing slips into the liner bushing and is then locked in place during the drilling operation. This part is suitable for production tooling where accurate hole placement and repeatable tool guidance are required. It is compatible with LS-1 lock screws, which secure the bushing in the liner during use. Installation is performed by tooling technicians and fixture builders in machine shop and manufacturing settings.

Key Features

• Slip-fixed (SF) installation method for positive locking in liner bushings
• 9/32 inch inside diameter held to +0.0001 to +0.0005 inch tolerance for precise tool guidance
• 1/2 inch body outside diameter with 51/64 inch head outside diameter
• 1 inch length under head suits standard jig plate thicknesses
• Renewable bushing design allows replacement without liner rework
• Compatible with LS-1 lock screw for secure seating during drilling operations
• Steel construction for durability in production tooling applications

Compatibility

Designed for use with LS-1 compatible lock screws. Fits standard liner bushings sized for a 1/2 inch body outside diameter in SF-type drill jig assemblies.

Installation Notes

Installation is performed by tooling technicians or fixture builders. Ensure the jig plate and liner bushing are clean and free of chips or burrs before pressing the bushing into position. Secure with an LS-1 lock screw before beginning the drilling cycle. Power down and lock out all machine tools before servicing or replacing bushings in an active fixture.
