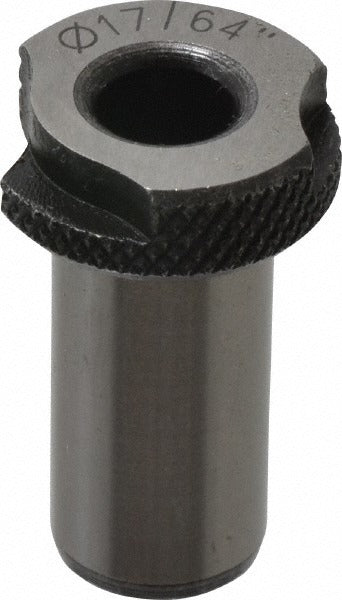

Boneham CB00001142 Slip-fixed Drill Bushing 17/64 in

Product Description

The BONEHAM CB00001142 is a slip-fixed drill bushing designed to guide cutting tools with precision in jig and fixture applications. Built from steel, this bushing features a 17/64 inch inside diameter, a body outside diameter of 0.5 inches, and a length under the head of 1 inch. The inside diameter tolerance is held to a tight +0.0001 to +0.0005 inches, ensuring consistent tool guidance and repeatable hole location. It includes a head and is compatible with the LS-1 lock screw for positive retention in the liner bushing. Machinists, tool and die makers, and production shops rely on this style of bushing for high-volume drilling, reaming, and boring operations.

This slip-fixed bushing is intended for use in drill jigs where the bushing must be removable and locked in place during operation. The SF designation follows standard industry bushing codes, making it straightforward to cross-reference with jig plate designs and fixture drawings. It is well suited for metalworking environments where precision hole location is critical across repeated setups. The renewable design allows the bushing to be replaced as it wears without modifying the jig plate, reducing fixture maintenance downtime.

Key Features

• Slip-fixed installation method with LS-1 lock screw compatibility for secure tool guidance
• Inside diameter of 17/64 inches held to +0.0001 to +0.0005 inch tolerance for accurate tool guidance
• Body outside diameter of 0.5 inches with a head outside diameter of 51/64 inches
• Head height of 0.25 inches and length under head of 1 inch for positive seating in liner bushings
• Renewable bushing design allows replacement without reworking the jig plate
• Steel construction for durability in production drilling and reaming applications

Compatibility

Designed as an OEM-style replacement or direct specification slip-fixed drill bushing conforming to the SF industry standard, compatible with LS-1 lock screws and standard liner bushings of matching body outside diameter.

Installation Notes

Installation is performed by machinists or tool and die technicians. The bushing is inserted into a liner bushing already pressed into the jig plate, then rotated and locked in position using an LS-1 lock screw. Ensure the jig plate and liner bushing bore are free of chips and debris before seating this bushing. Verify lock screw engagement before beginning any drilling or reaming operation.
