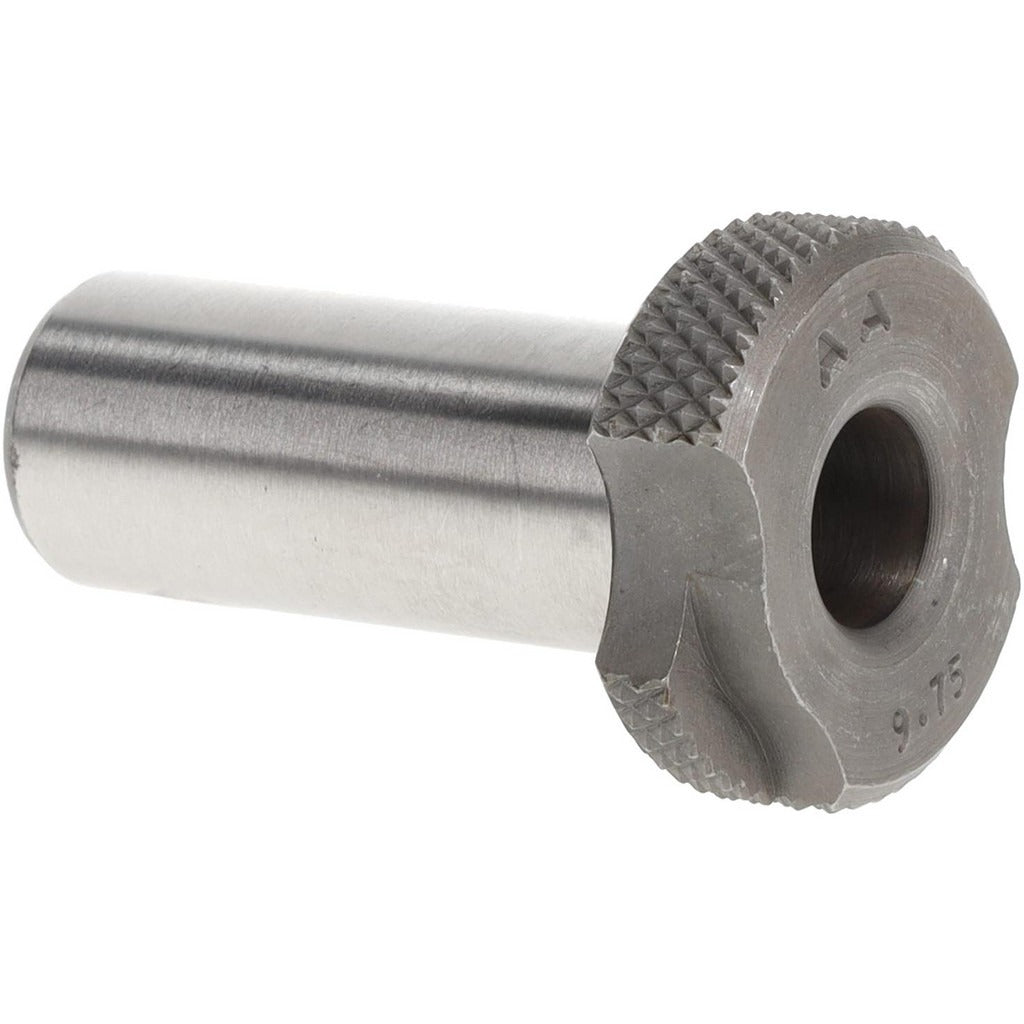

Boneham AM00001122 Slip-fixed Drill Bushing Sfm

Product Description

The BONEHAM AM00001122 is a slip-fixed drill bushing in the SFM industry classification, designed for precision hole location and guidance in jig and fixture applications. It features a 9.75 mm inside diameter, a 15 mm body outside diameter, and a 36 mm length under the head. The slip-fixed design allows the bushing to be installed and locked into a liner bushing without additional tooling, holding position under production conditions. Machinists and tool-and-die professionals install this type of bushing into hardened drill jigs to guide cutting tools accurately and repeatedly across production runs.

This bushing is suited for metalworking and machining environments where renewable tooling guidance is required. The slip-fixed configuration makes it appropriate for applications where the bushing must be changed between operations without disturbing the jig plate. It is used in production drilling, reaming, and similar operations in both light manufacturing and precision machining shops. The renewable design supports high-cycle use and simplifies bushing replacement during tooling maintenance.

Key Features

• SFM industry classification slip-fixed drill bushing for jig and fixture applications
• 9.75 mm inside diameter for precise cutting tool guidance
• 15 mm body outside diameter for standard liner bushing seating
• 36 mm length under head for adequate tool guidance depth
• Renewable bushing design allows field replacement without jig rework

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard liner bushings accepting the SFM slip-fixed bushing configuration with a 15 mm body outside diameter.

Installation Notes

Installation of drill bushings is typically performed by toolmakers or machining professionals familiar with jig and fixture construction. Before replacing or installing, confirm the liner bushing bore is clean and free of debris. The slip-fixed design requires proper alignment with the locking feature of the liner bushing to seat and lock correctly. Consult applicable shop standards and jig design specifications before use in production tooling.
