Boneham AM00001118 Slip-fixed Drill Bushing Sfm

Product Description

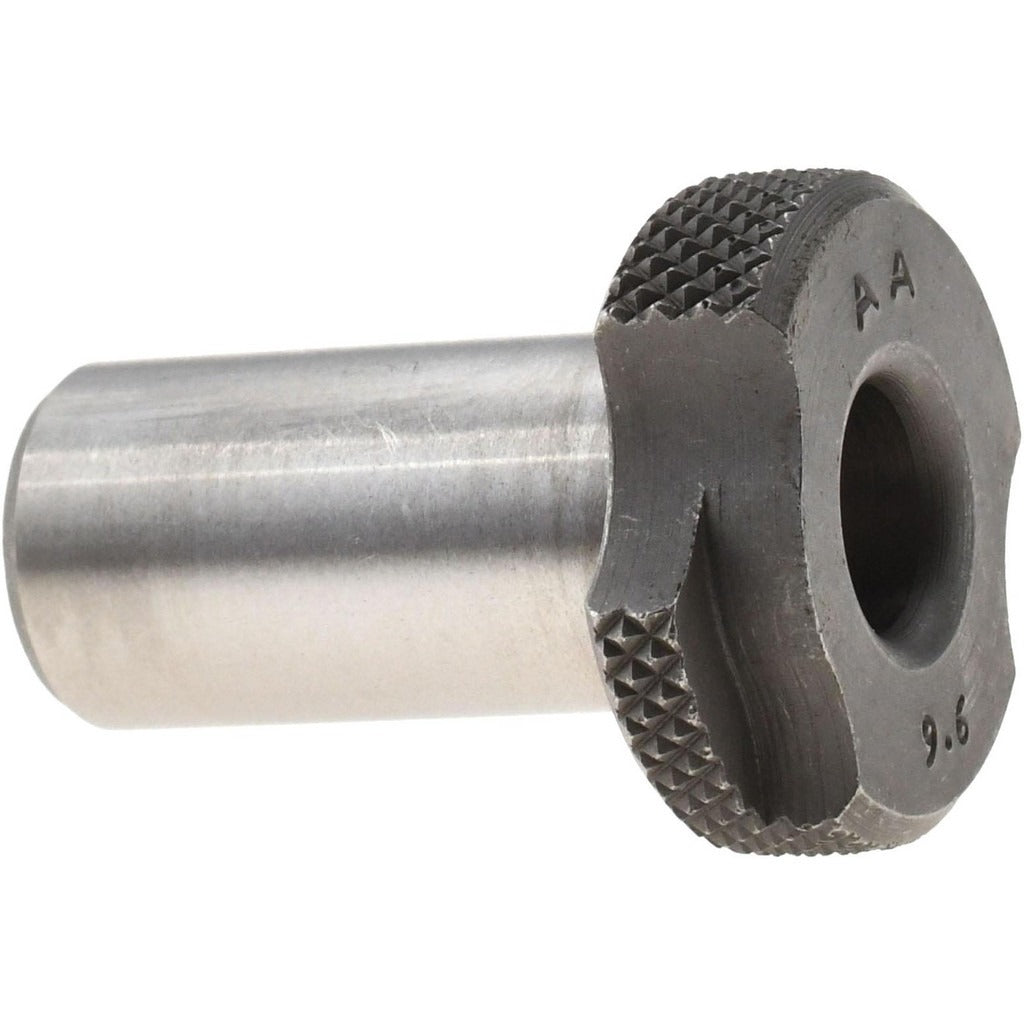

The BONEHAM AM00001118 is a slip-fixed drill bushing manufactured to the SFM industry standard. Slip-fixed bushings seat into a liner bushing and are held in place by a locking mechanism, allowing them to be removed and replaced without disturbing the jig plate. This bushing features a 9.6 mm inside diameter, a 15 mm body outside diameter, and a 28 mm length under head. It is a renewable bushing, meaning it can be swapped out independently of the liner, reducing tooling cost over the life of a drill fixture. Machinists, tool and die makers, and fixture builders install this type of component in production and prototype drilling operations.

The AM00001118 is suited for use in drill jig fixtures across light manufacturing, precision machining shops, and toolroom applications. Its SFM bushing industry code designates it as a slip-fixed style intended for use with a compatible press-fit liner bushing already installed in the jig plate. The renewable design makes it a practical choice for high-volume drilling operations where bushings experience wear and require periodic replacement without full fixture rework.

Key Features

• SFM slip-fixed design allows removal and replacement without disturbing the liner bushing
• Renewable bushing construction reduces long-term fixture maintenance cost
• 9.6 mm inside diameter for precise drill guidance
• 15 mm body outside diameter for use with compatible SFM-size liner bushings
• 28 mm length under head provides adequate drill guidance depth
• UNSPSC Code 31171603 for procurement and cataloging compliance

Compatibility

Designed as an OEM-style replacement or new-installation slip-fixed drill bushing conforming to the SFM industry standard, for use with compatible SFM liner bushings in drill jig fixtures.

Installation Notes

Slip-fixed bushings are installed and removed by hand or with light tooling after the compatible liner bushing is already press-fitted into the jig plate. Ensure the liner bushing bore and the jig plate are clean and free of chips before seating the bushing. Always secure the locking mechanism fully before beginning drilling operations to prevent rotation or ejection under cutting forces. Installation should be performed by a qualified machinist or tooling technician familiar with drill jig fixture assembly.
