Boneham AM00001110 Slip-fixed Drill Bushing Sfm

Product Description

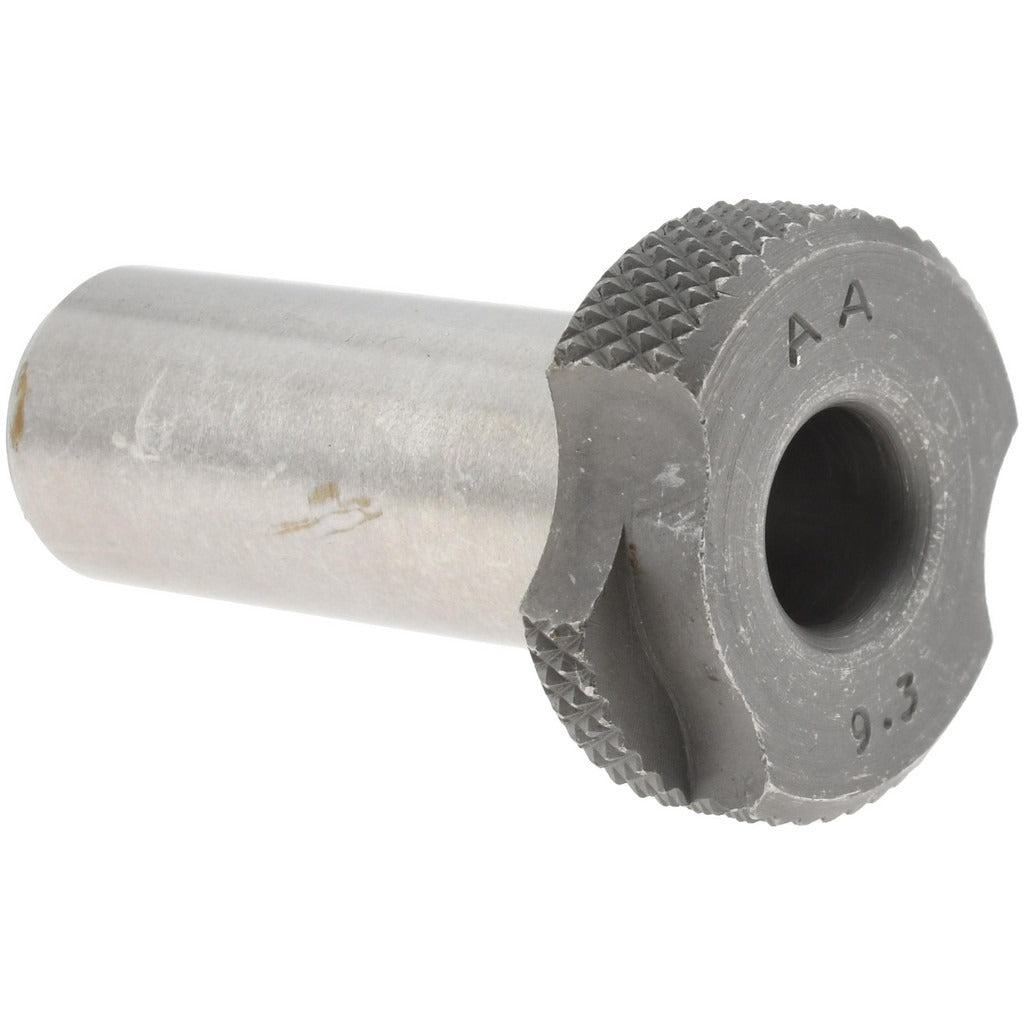

The BONEHAM AM00001110 is a slip-fixed drill bushing manufactured to SFM industry standards. It is designed to guide cutting tools — primarily drill bits — with precision during machining and fabrication operations. The bushing features a 9.3 mm inside diameter, a 15 mm body outside diameter, and a 36 mm length under head. This type of bushing is pressed or slipped into a drill jig liner bushing and held in place by a locking collar, providing repeatable tool guidance across production runs. It is installed and serviced by machinists, tool and die makers, and precision fabricators working in production or maintenance machining environments.

Slip-fixed bushings in the SFM series are used in drill jig applications where a fixed bushing must be removed and replaced periodically during a production cycle. This part is suited for light to medium production jig work where the bushing must seat securely while allowing replacement between operations. The renewable design makes it practical for high-cycle tooling setups where bushing wear is a routine maintenance consideration.

Key Features

• SFM industry code — conforms to standard slip-fixed drill bushing specifications
• 9.3 mm inside diameter for precise drill bit guidance
• 15 mm body outside diameter for use with compatible jig liner bushings
• 36 mm length under head provides extended tool guidance depth
• Renewable bushing design supports in-jig replacement without retooling the fixture

Compatibility

Designed as an OEM-style replacement or direct-fit component for drill jig fixtures requiring an SFM-series slip-fixed bushing with a 9.3 mm ID and 15 mm body outside diameter.

Installation Notes

Slip-fixed drill bushings are installed and replaced by machinists or tooling technicians as part of drill jig maintenance. Ensure the jig liner bushing bore and locking collar are clean and free of chips before seating the bushing. De-energize and lock out any associated machine tool before performing bushing replacement. Follow applicable shop safety procedures and tooling manufacturer guidelines for jig assembly.
