Boneham AM00001108 Slip-fixed Drill Bushing Sfm

Product Description

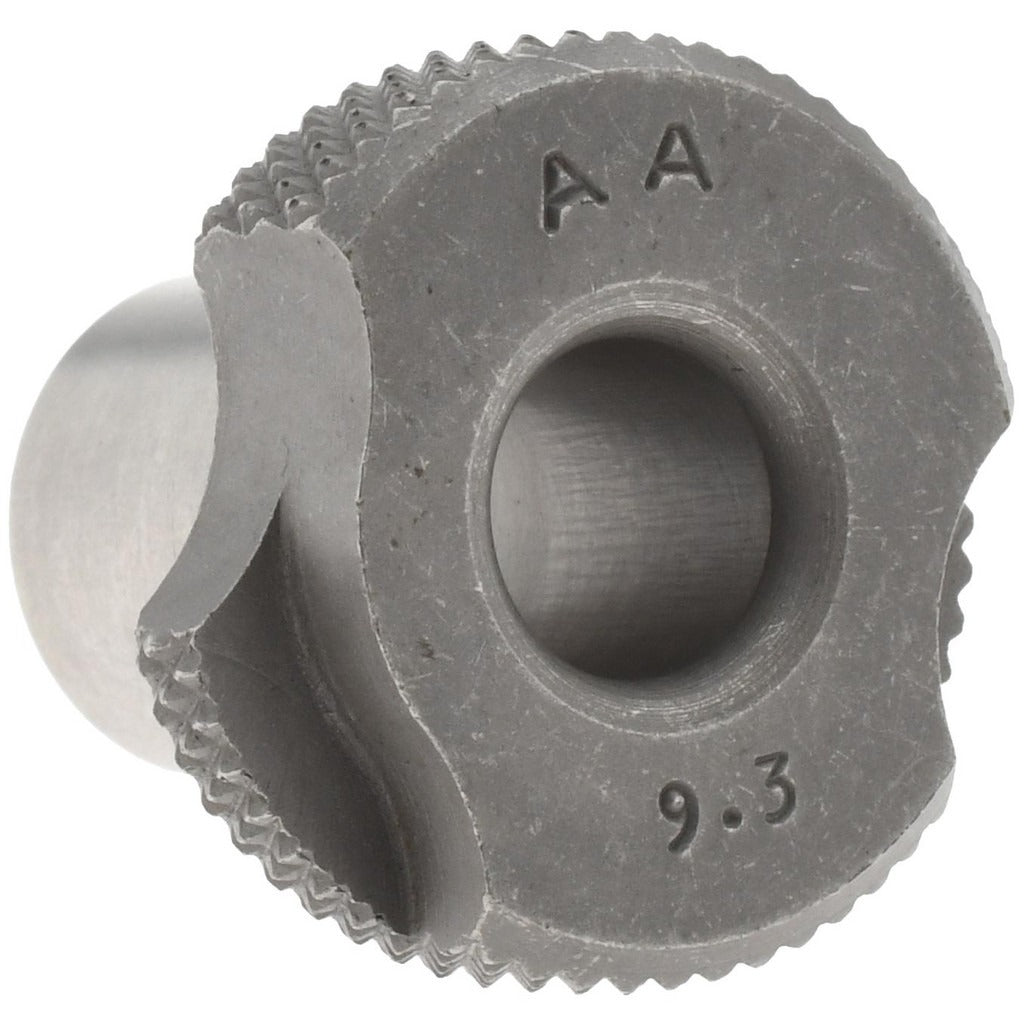

The BONEHAM AM00001108 is a slip-fixed drill bushing in the SFM industry classification. It is designed to guide cutting tools with precision during drilling, reaming, and boring operations in jig and fixture applications. The bushing features a 9.3 mm inside diameter, a 15 mm body outside diameter, and a 16 mm length under head. It installs using a slip-fixed method, allowing it to be removed and replaced during production without disturbing the jig plate. Machinists, toolmakers, and fixture builders working in manufacturing, fabrication, and machine shops are the primary users of this component.

This bushing is suited for jig plate applications where renewable tooling guides are required. The slip-fixed design is commonly used in production environments where drill bushings must be swapped between operations on the same fixture. The SFM classification follows standard industry tooling codes used across metalworking and precision machining operations. It is appropriate for both light and moderate production drilling cycles where accurate hole location and repeatable tool guidance are critical.

Key Features

• Slip-fixed installation method allows removal and replacement without disassembling the jig plate
• Renewable bushing design supports extended fixture service life
• 9.3 mm inside diameter for precise tool guidance
• 15 mm body outside diameter fits standard SFM jig plate liner bushings
• 16 mm length under head provides adequate tool guidance depth for typical jig applications
• SFM industry classification for straightforward cross-referencing and sourcing

Compatibility

Designed as an OEM-style replacement or direct-fit component for jig fixtures that accept SFM-classification slip-fixed drill bushings with a 15 mm body outside diameter.

Installation Notes

Installation is performed by toolmakers or machinists using standard jig-assembly procedures. The mating liner bushing in the jig plate must match the body outside diameter before installation. Ensure the fixture is secured and the machine is de-energized before servicing or replacing bushings. Follow applicable shop safety and tooling standards when handling precision ground components.
