Boneham AM00001106 Slip-fixed Drill Bushing Sfm

Product Description

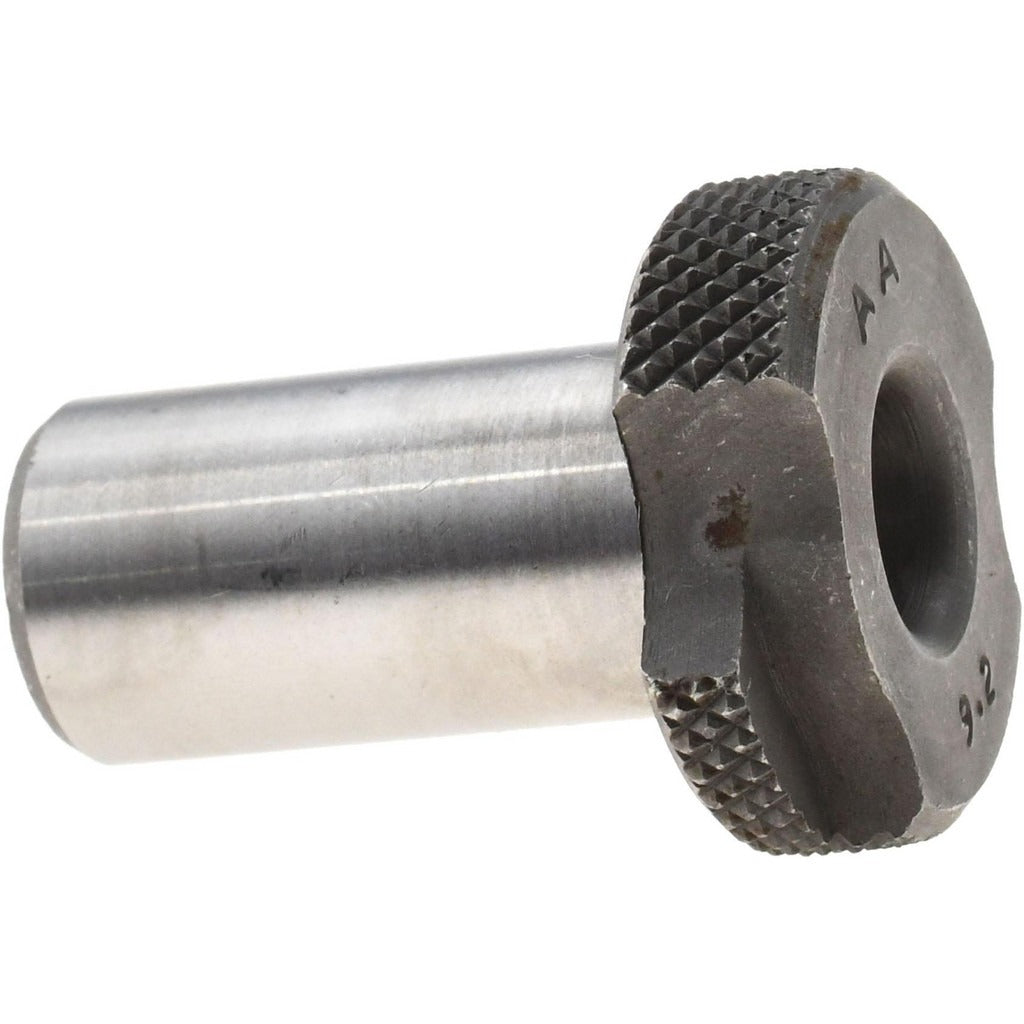

The BONEHAM AM00001106 is a slip-fixed drill bushing conforming to the SFM industry standard. It features a 9.2 mm inside diameter, a 15 mm body outside diameter, and a 28 mm length under the head. Slip-fixed bushings are used in jig and fixture applications to guide cutting tools such as drills, reamers, and counterbores with precision. This bushing is renewable, meaning it can be replaced without replacing the liner bushing pressed into the jig plate. Machinists, tool and die makers, and fixture builders install this type of bushing in production and prototype drilling operations where repeatable hole location accuracy is required.

The AM00001106 slip-fixed bushing is suited for use in drill jigs and machining fixtures across light manufacturing, metalworking, and precision fabrication environments. The SFM designation indicates a slip-fixed head-type bushing that locks into a liner bushing with a partial turn. It is appropriate for applications requiring frequent tool changes or bushing rotation during multi-operation setups. This part ships in a single-unit package and is stocked for individual replacement needs on the shop floor or toolroom bench.

Key Features

• SFM industry code slip-fixed configuration for quick installation and removal from liner bushings
• 9.2 mm inside diameter guides drill or cutting tool with close tolerances
• 15 mm body outside diameter for standard liner bushing compatibility
• 28 mm length under head provides adequate tool guidance depth for typical jig plate thicknesses
• Renewable design allows bushing replacement without disturbing the pressed liner in the jig plate

Compatibility

Designed as an OEM-style replacement or direct-fit slip-fixed drill bushing for use with standard SFM-series liner bushings in drill jig and fixture assemblies.

Installation Notes

Installation is performed by toolroom machinists or fixture builders. The bushing inserts into a compatible pressed liner bushing and locks with a partial clockwise rotation. Ensure the liner bushing bore and jig plate are free of chips and burrs before installation. Remove all cutting tool pressure and secure the workpiece fixture before replacing a worn bushing mid-production.
