Boneham AM00001077 Slip-fixed Drill Bushing Sfm

Product Description

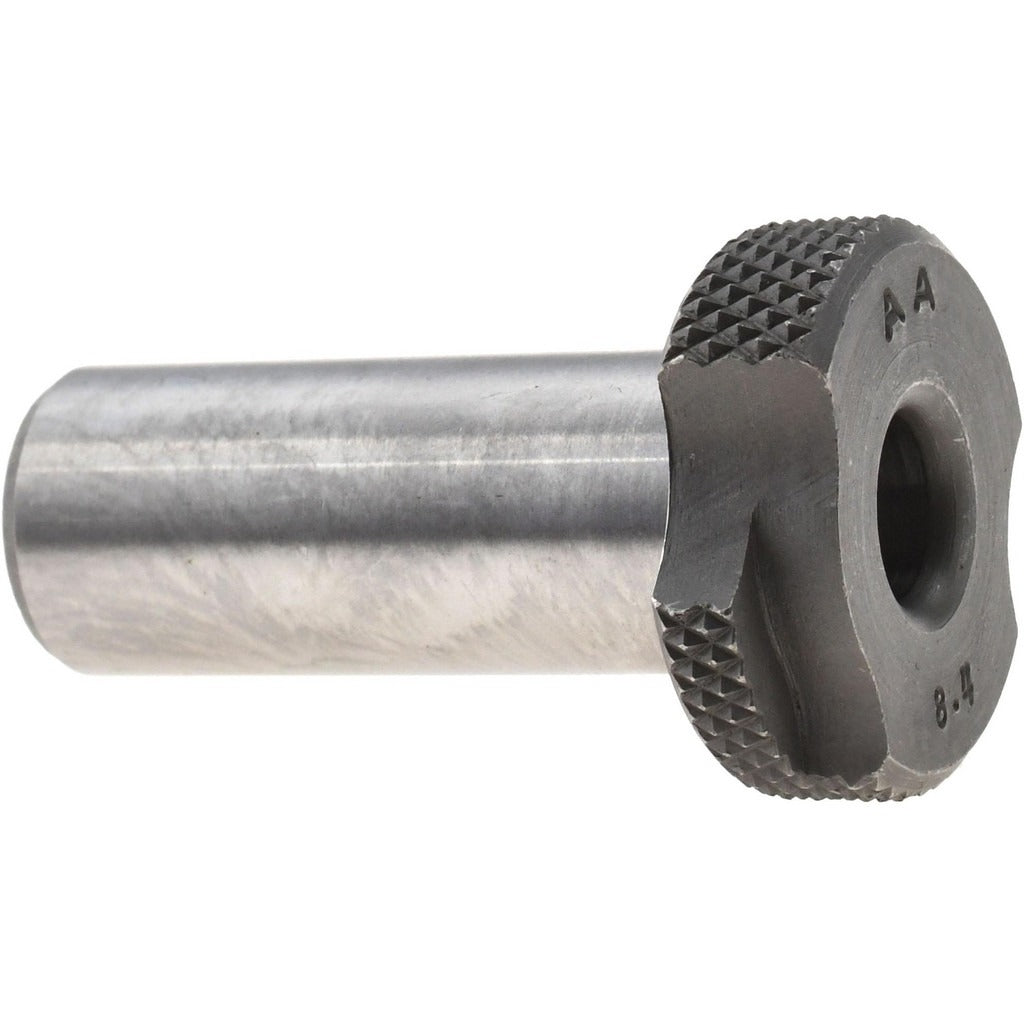

The BONEHAM AM00001077 is a slip-fixed drill bushing manufactured to the SFM industry standard. It provides a precision-hardened guide for drill bits and boring tools during repetitive drilling operations in jig and fixture setups. The bushing features an inside diameter of 8.4 mm, a body outside diameter of 15 mm, and a length under head of 36 mm. It is a renewable bushing, meaning it can be removed and replaced in a liner bushing without disturbing the fixture. Machinists, toolmakers, and maintenance technicians working with drill jigs install this component to maintain consistent hole location and extend tooling life across production runs.

This slip-fixed bushing is suited for use in drill jig fixtures where the bushing must be locked in place during the drilling operation but can be rotated and removed for tool changes or replacement. The SFM designation identifies it as a slip-fixed type with a head, conforming to recognized tooling industry dimensional standards. It is appropriate for precision machining environments in manufacturing, fabrication shops, and maintenance repair operations where repeatable hole accuracy is critical.

Key Features

• SFM industry code — slip-fixed head style for secure, removable installation in liner bushings
• 8.4 mm inside diameter for precise drill bit guidance
• 15 mm body outside diameter for consistent fit in standard liner bushings
• 36 mm length under head provides adequate tool guidance depth
• Renewable design allows replacement without disturbing the jig fixture
• Sold individually — package quantity of 1

Compatibility

Designed as an OEM-style replacement or new-installation renewable slip-fixed drill bushing for drill jig fixtures requiring an SFM-standard bushing with an 8.4 mm ID and 15 mm body outside diameter.

Installation Notes

Installation is performed by toolmakers or machinists working with drill jig fixtures. The bushing is inserted into a compatible liner bushing already mounted in the jig plate, then rotated to lock it in the fixed position before drilling begins. Power down all associated machinery and secure the workpiece before servicing or replacing bushings in an active fixture. Do not press-fit a slip-fixed bushing into a solid hole — it requires a properly sized liner bushing for correct function.
