Boneham AM00001074 Slip-fixed Drill Bushing Sfm

Product Description

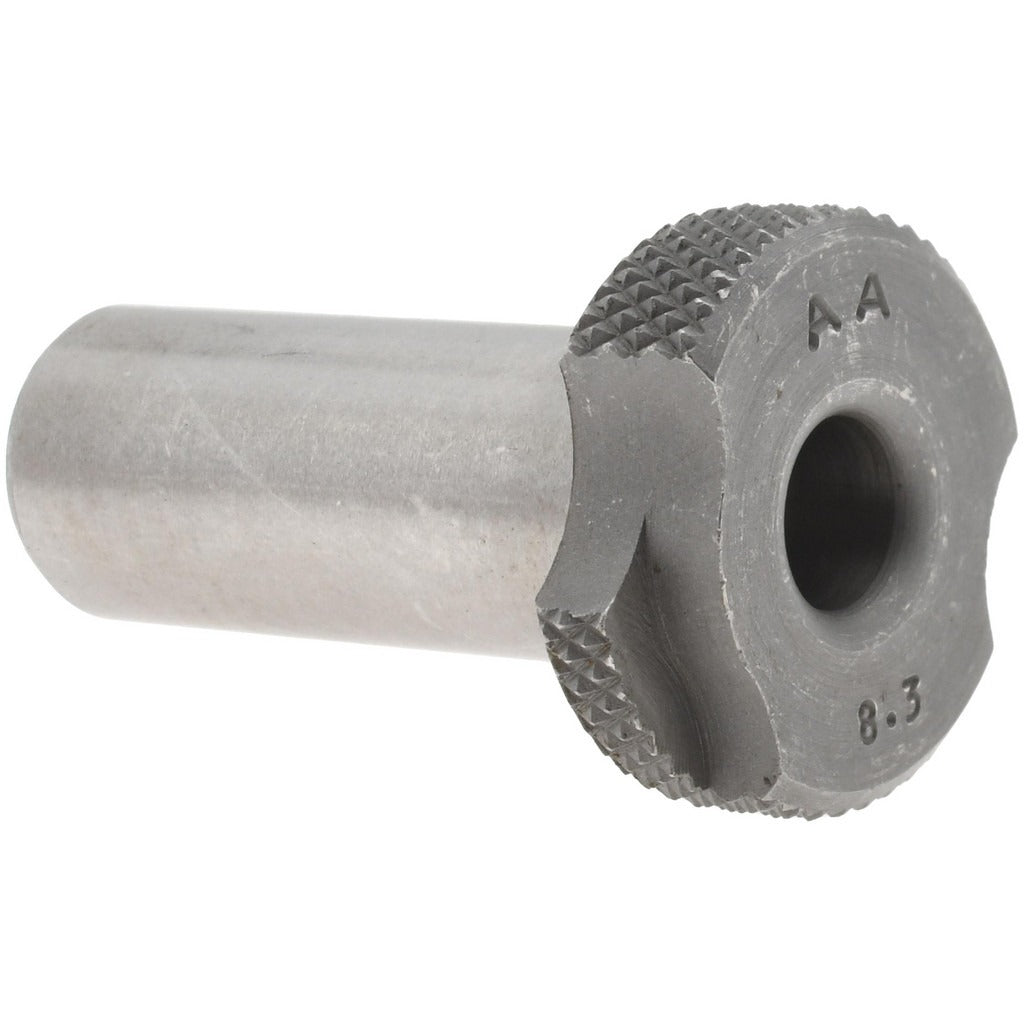

The BONEHAM AM00001074 is a slip-fixed drill bushing conforming to the SFM industry standard. It features an inside diameter of 8.3 mm, a body outside diameter of 15 mm, and a length under head of 36 mm. Slip-fixed bushings are designed to be installed and removed from a drill jig liner bushing without the use of a press, making them a practical choice for production drilling operations where tooling changes are frequent. The renewable design allows the bushing to be swapped out as wear occurs, extending the service life of the jig assembly itself.

This bushing is suited for use in drill jig applications across manufacturing, metalworking, and precision machining environments. It is installed in conjunction with a compatible liner bushing that remains permanently fixed in the jig plate. The slip-fixed configuration is commonly specified on production floors where multiple drill sizes or operations are performed at the same jig station, allowing quick changeover between cutting tool sizes without disturbing the jig plate setup.

Key Features

• SFM industry standard slip-fixed bushing for renewable jig tooling applications
• 8.3 mm inside diameter for precise drill or reamer guidance
• 15 mm body outside diameter for seating in a compatible liner bushing
• 36 mm length under head provides extended tool guidance in deeper jig plates
• Renewable design allows replacement without disturbing the liner or jig plate

Compatibility

Designed as an OEM-style replacement or direct fitment for slip-fixed liner bushing assemblies conforming to the SFM industry standard in standard drill jig configurations.

Installation Notes

Installation and removal of slip-fixed bushings is performed by hand or with a bushing pull tool without pressing. Ensure the mating liner bushing bore is clean and free of chips or burrs before seating this bushing. Follow applicable shop safety procedures and lock out or secure the workpiece fixture before changing tooling in an active jig station. Consult the jig design drawings to confirm the correct bushing size and liner combination before installation.
