Boneham AM00001073 Slip-fixed Drill Bushing Sfm

Product Description

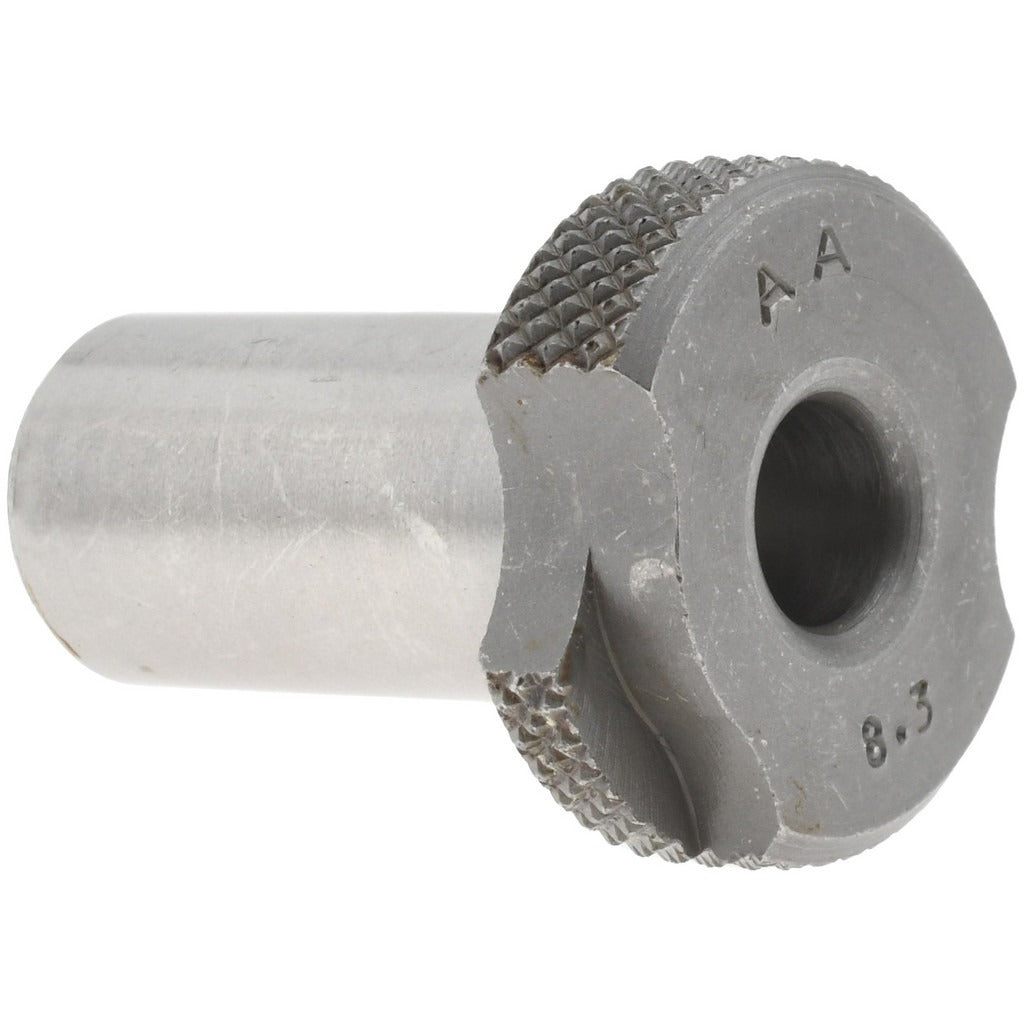

The BONEHAM AM00001073 is a slip-fixed drill bushing in the SFM series, designed to guide cutting tools accurately during drilling, reaming, or boring operations. It features an inside diameter of 8.3 millimeters, a body outside diameter of 15 millimeters, and a length under head of 28 millimeters. This bushing is a renewable type, meaning it can be removed and replaced without disturbing the jig plate, making it a practical choice for production drilling fixtures where tooling must be swapped during the machining cycle. Machinists, toolmakers, and fixture builders working in metalworking and manufacturing environments are the primary installers.

The AM00001073 is suited for use in drill jig applications where slip-fixed mounting is required. The slip-fixed configuration allows the bushing to be locked in place during the cut and then removed by rotating and lifting, enabling multiple operations to be performed through the same jig hole with different tool sizes. It is appropriate for light-to-medium production work in machine shops and tooling departments handling ferrous and non-ferrous workpieces.

Key Features

• Slip-fixed installation method allows removal and replacement without disturbing the jig liner
• Renewable bushing design supports multi-operation tooling setups
• Inside diameter of 8.3 millimeters for precise tool guidance
• Body outside diameter of 15 millimeters for secure liner fit
• Length under head of 28 millimeters provides adequate tool support depth
• SFM industry bushing code for straightforward cross-referencing

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard drill jig fixtures accepting SFM-series slip-fixed renewable bushings with a 15 millimeter body outside diameter.

Installation Notes

Installation is performed by toolmakers or machinist trades during jig assembly or bushing replacement. The jig plate must be stationary and the machine powered down before removing or seating the bushing. A slip-fixed bushing requires a compatible liner already installed in the jig plate; verify liner inside diameter matches the bushing body outside diameter before pressing or seating. Consult applicable shop standards and fixture design specifications for proper head clearance and lock orientation.
