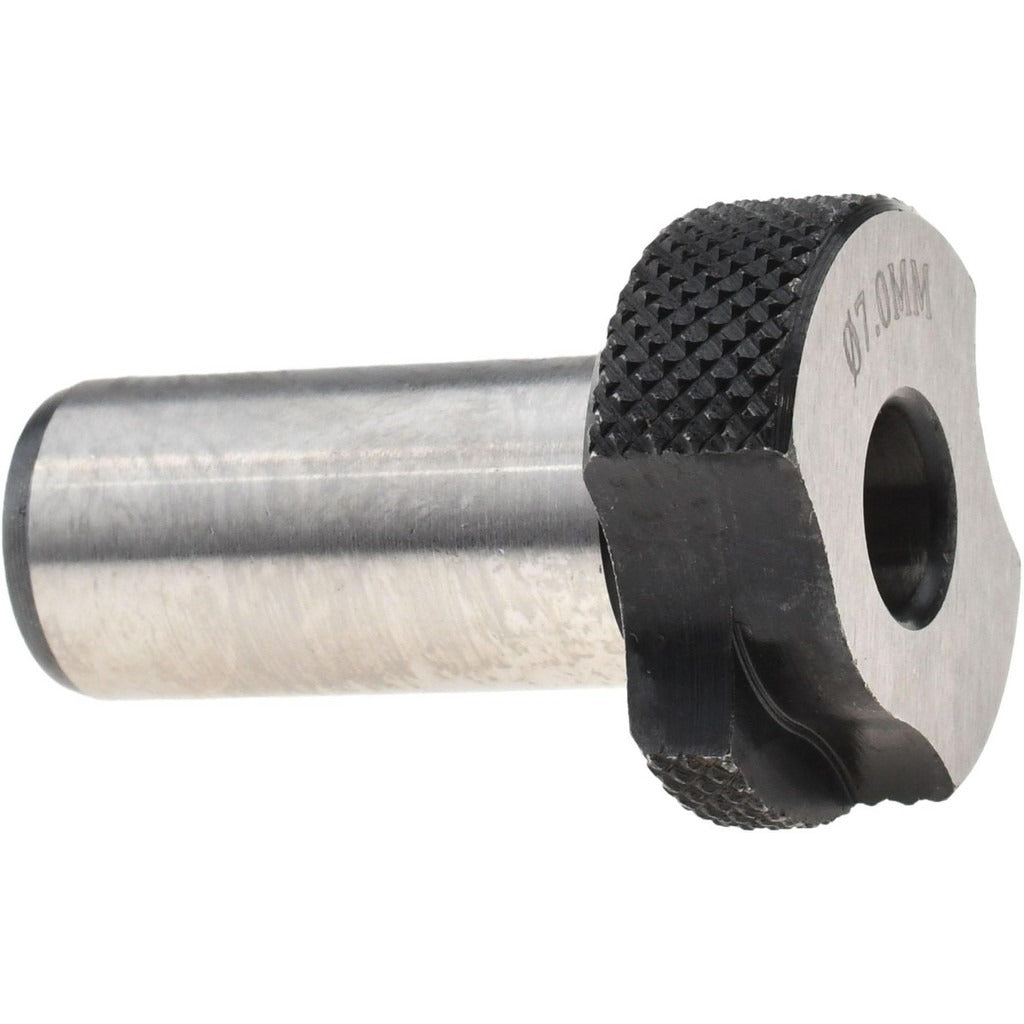

Boneham AM00001062 Slip-fixed Drill Bushing Sfm 7mm Id

Product Description

The BONEHAM AM00001062 is a slip-fixed drill bushing in the SFM industry style, designed to guide cutting tools precisely during drilling operations. With a 7 mm inside diameter and a 12 mm body outside diameter, this bushing fits into a standard jig plate and holds its position through a slip-fixed locking mechanism. The 25 mm length under head provides adequate guidance depth for consistent hole placement. It is a renewable bushing, meaning it can be replaced independently from the jig liner without scrapping the entire fixture. Machinists, toolmakers, and production floor technicians install this type of bushing in drill jigs used across manufacturing, fabrication, and precision machining environments.

The AM00001062 is suited for use in drill jig fixtures requiring a slip-fixed style bushing that can be locked in place and removed for tool changes or replacement. The SFM designation refers to a recognized industry standard for slip-fixed bushing geometry, making this part a direct fit wherever that specification is called out. It is appropriate for light-duty to medium-duty drilling applications where repeatable hole location accuracy is required. Both job shop and production environments use this bushing style when working with standard jig plate liner systems.

Key Features

• Slip-fixed installation method for secure positioning during drilling operations
• SFM industry code designation for standardized jig bushing compatibility
• 7 mm inside diameter guides drill bits and reamers with consistent accuracy
• 12 mm body outside diameter fits corresponding standard jig liner
• 25 mm length under head provides full tool guidance depth
• Renewable bushing design allows independent replacement without disturbing the liner

Compatibility

Designed as an OEM-style replacement or new-install slip-fixed drill bushing for standard SFM-style jig liner systems requiring a 7 mm ID and 12 mm body outside diameter.

Installation Notes

This bushing is installed by toolmakers or machinists into a compatible slip-fixed jig liner seated in a drill jig plate. Ensure the mating liner bore is clean and free of chips or burrs before inserting the bushing. The slip-fixed design requires proper alignment of the locking lug with the liner slot before seating and rotating to lock. Always de-energize and secure any power tooling before servicing or replacing jig bushings in a live fixture.
