Boneham AM00001053 Slip-fixed Drill Bushing Sfm

Product Description

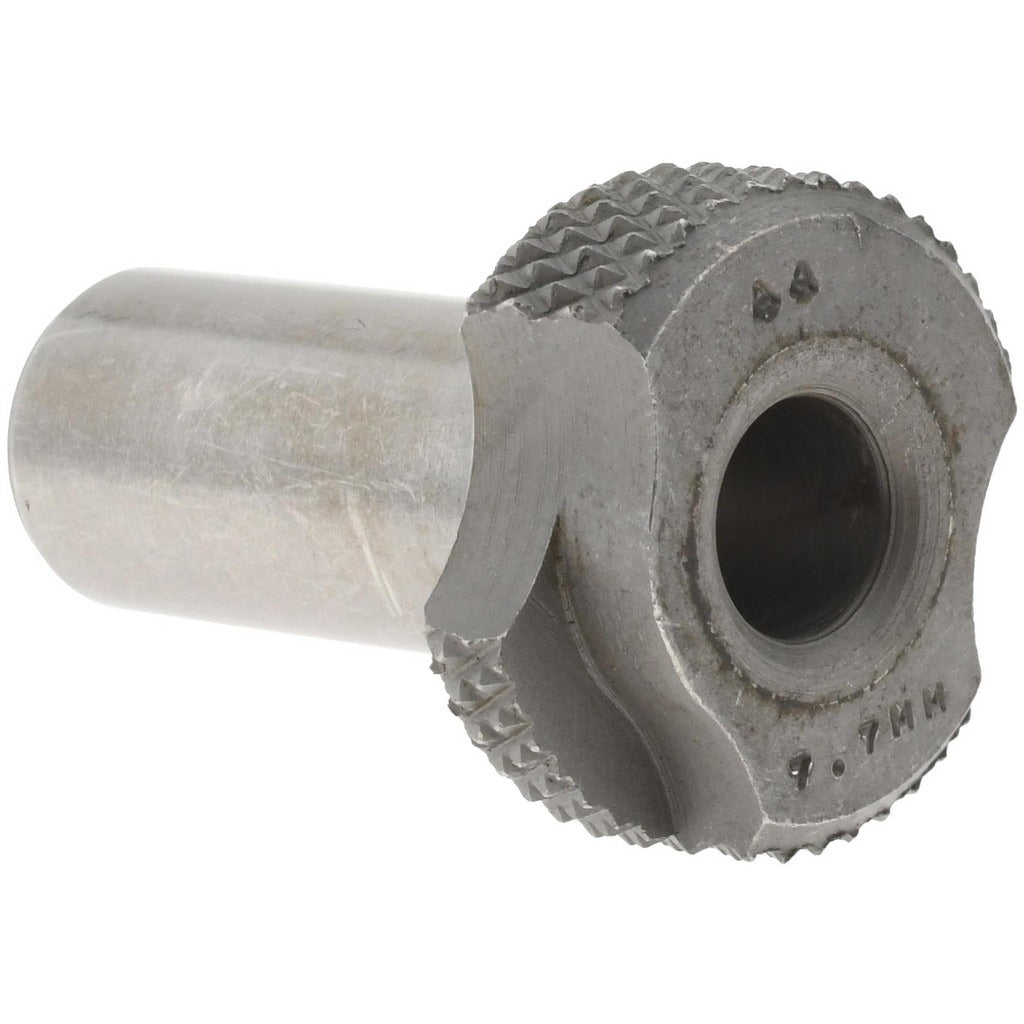

The BONEHAM AM00001053 is a slip-fixed drill bushing conforming to the SFM industry standard. It features an inside diameter of 7.7 mm, a body outside diameter of 12 mm, and a length under head of 25 mm. Slip-fixed bushings are pressed into a liner bushing already installed in a drill jig, locking in place during drilling operations to guide cutting tools with precision. This bushing is renewable, meaning it can be removed and replaced without disturbing the liner bushing. It weighs 0.37 pounds and is suited for use in production machining, fabrication, and tooling jig applications where repeatable hole location accuracy is required.

This bushing is used in drill jig setups across manufacturing, fabrication, and maintenance environments. The SFM bushing type is designed to slip into a compatible liner bushing and lock during the drilling cycle, then release for tool changes or bushing swaps. It is appropriate for applications requiring frequent bushing changes at a single drill station. Typical installers include tool and die makers, machinists, and maintenance technicians working with jig and fixture tooling.

Key Features

• SFM industry standard slip-fixed bushing for use with compatible liner bushings
• 7.7 mm inside diameter for precise tool guidance
• 12 mm body outside diameter for standard liner fitment
• 25 mm length under head for adequate tool engagement depth
• Renewable design allows replacement without disturbing the installed liner bushing
• UNSPSC Code 31171603 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement slip-fixed drill bushing for use with liner bushings conforming to the SFM industry standard in drill jig and fixture applications.

Installation Notes

Installation is performed by machinists or tooling technicians familiar with drill jig assembly. The slip-fixed bushing is inserted into a pre-installed liner bushing and locks in position during drilling. Ensure the drill press or machine tool is powered down and all rotating equipment has come to a complete stop before servicing or replacing bushings. Do not force the bushing into a liner that is not the correct mating size, as this can damage both components.
