Boneham AM00001052 Slip-fixed Bushing Sfm

Product Description

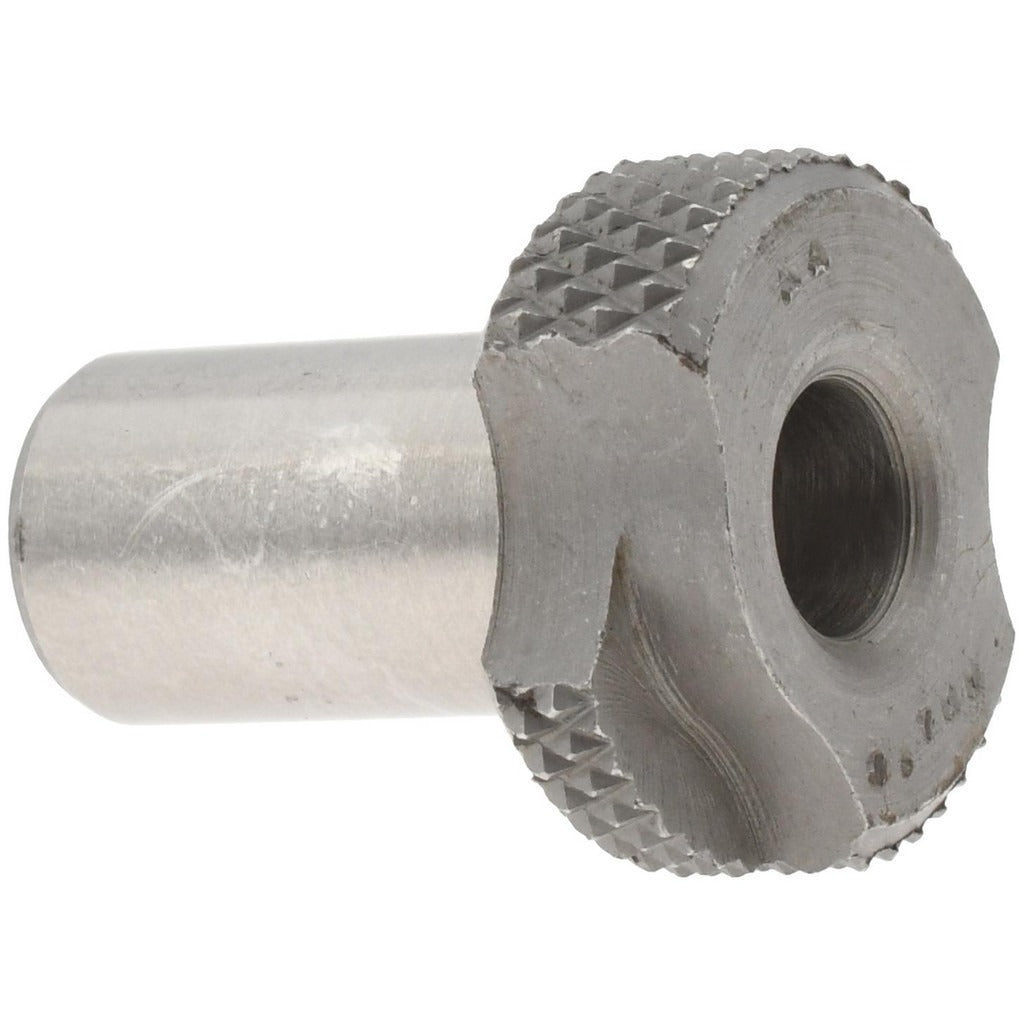

The BONEHAM AM00001052 is a slip-fixed drill bushing manufactured to the SFM industry standard. It is designed to guide cutting tools accurately during drilling, reaming, and boring operations in jig and fixture applications. The bushing features a 7.7 mm inside diameter and a 12 mm body outside diameter, with a 20 mm length under head. The renewable design allows the bushing to be replaced without disturbing the surrounding fixture, supporting repeatable precision across high-volume production runs. Licensed machinists and toolmakers are the primary installers for this component.

This bushing is suited for use in drill jigs and precision fixturing where consistent hole location is required across multiple workpieces. The SFM bushing type is a slip-fixed configuration, meaning it installs into a liner bushing and is held in place by a locking clamp or screw during the cutting operation, then removed for part loading and unloading. It is commonly used in light-to-medium production machining environments.

Key Features

• SFM slip-fixed bushing design for use with a compatible liner bushing
• 7.7 mm inside diameter for precise tool guidance
• 12 mm body outside diameter for fixture compatibility
• 20 mm length under head provides adequate tool support depth
• Renewable construction allows replacement without fixture rework

Compatibility

Designed as an OEM-style replacement or direct fitment slip-fixed bushing for drill jigs and fixtures accepting the SFM industry standard bushing configuration.

Installation Notes

Installation is typically performed by a machinist or toolmaker during jig setup or maintenance. The bushing is pressed or slipped into a compatible liner bushing already installed in the fixture. Ensure the liner bushing bore is clean and free of debris before installation. Follow applicable shop safety procedures and secure the bushing with the appropriate locking mechanism before initiating any cutting operation.
