Boneham AM00001050 Slip-fixed Drill Bushing Sfm

Product Description

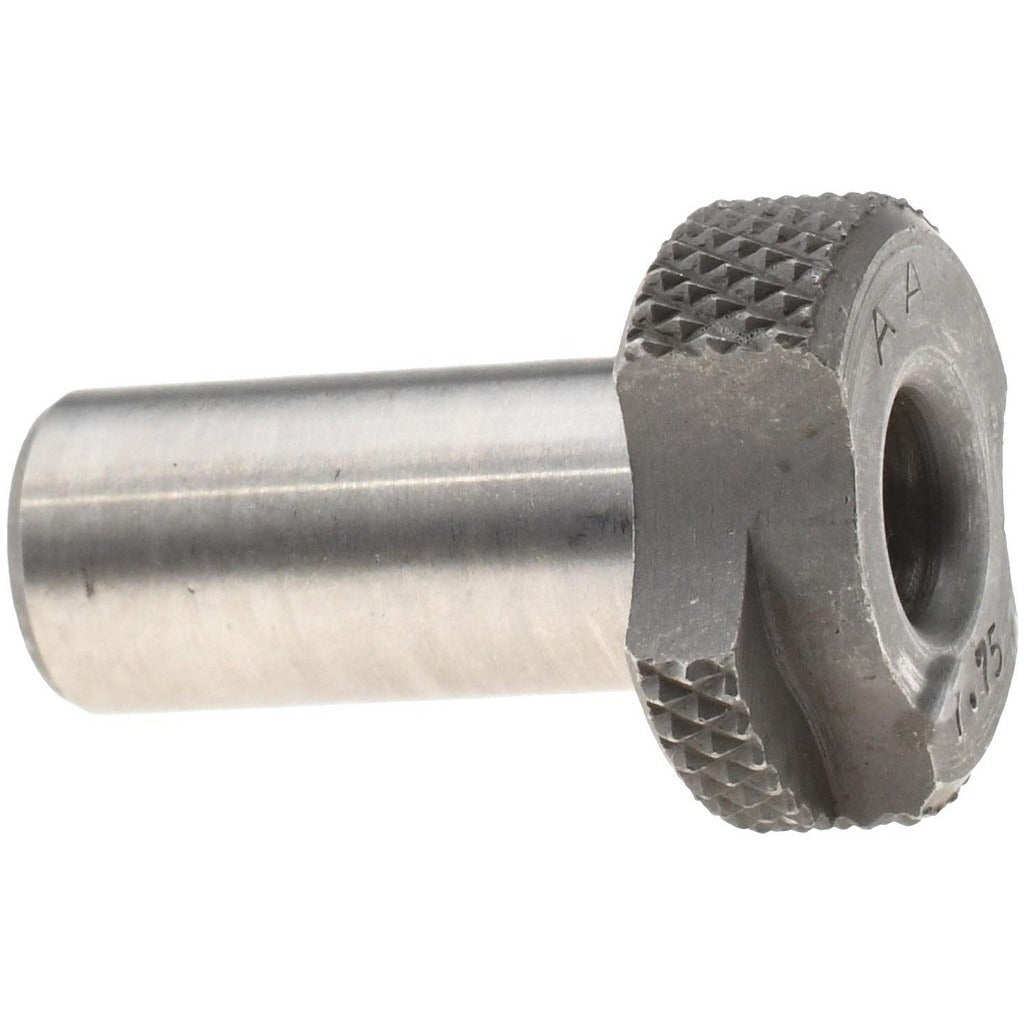

The BONEHAM AM00001050 is a slip-fixed drill bushing conforming to the SFM industry standard. It features a 7.75 mm inside diameter, a 12 mm body outside diameter, and a 25 mm length under the head. This bushing is designed to guide cutting tools such as drills, reamers, and similar tooling with precision during machining and fabrication operations. Slip-fixed bushings seat into a liner bushing and are locked in place during use, making them well-suited for jig and fixture work where repeatable hole location is critical. Installation and removal require the appropriate bushing press or driver. The AM00001050 is specified as a renewable bushing, meaning it can be replaced without disturbing the liner bushing in the jig plate.

This bushing is used in drill jig applications across precision machining, metalworking, and industrial fabrication environments. It is appropriate for both production and toolroom settings where accurate hole guidance is required. The SFM designation corresponds to a recognized bushing industry code, allowing straightforward cross-referencing against jig and fixture specifications. Machinists, tool and die makers, and fixture builders are the primary tradespeople who select and install this type of component.

Key Features

• SFM slip-fixed design locks into liner bushing during drilling operations
• 7.75 mm inside diameter for precise tool guidance
• 12 mm body outside diameter for standard liner bushing fitment
• 25 mm length under head provides adequate tool engagement depth
• Renewable bushing construction allows in-place replacement without jig plate rework

Compatibility

Designed as an OEM-style replacement or direct-specification slip-fixed drill bushing for use in SFM-standard liner bushings in drill jig and fixture assemblies.

Installation Notes

Installation and removal should be performed by a qualified machinist or toolmaker using a proper bushing press or driver. The mating liner bushing must match the AM00001050 body outside diameter to ensure correct seating and alignment. Verify that the jig plate and liner bushing are clean and free of debris before pressing the bushing into position. Never hammer the bushing directly without a driver, as this can damage the head or alter the inside diameter tolerance.
