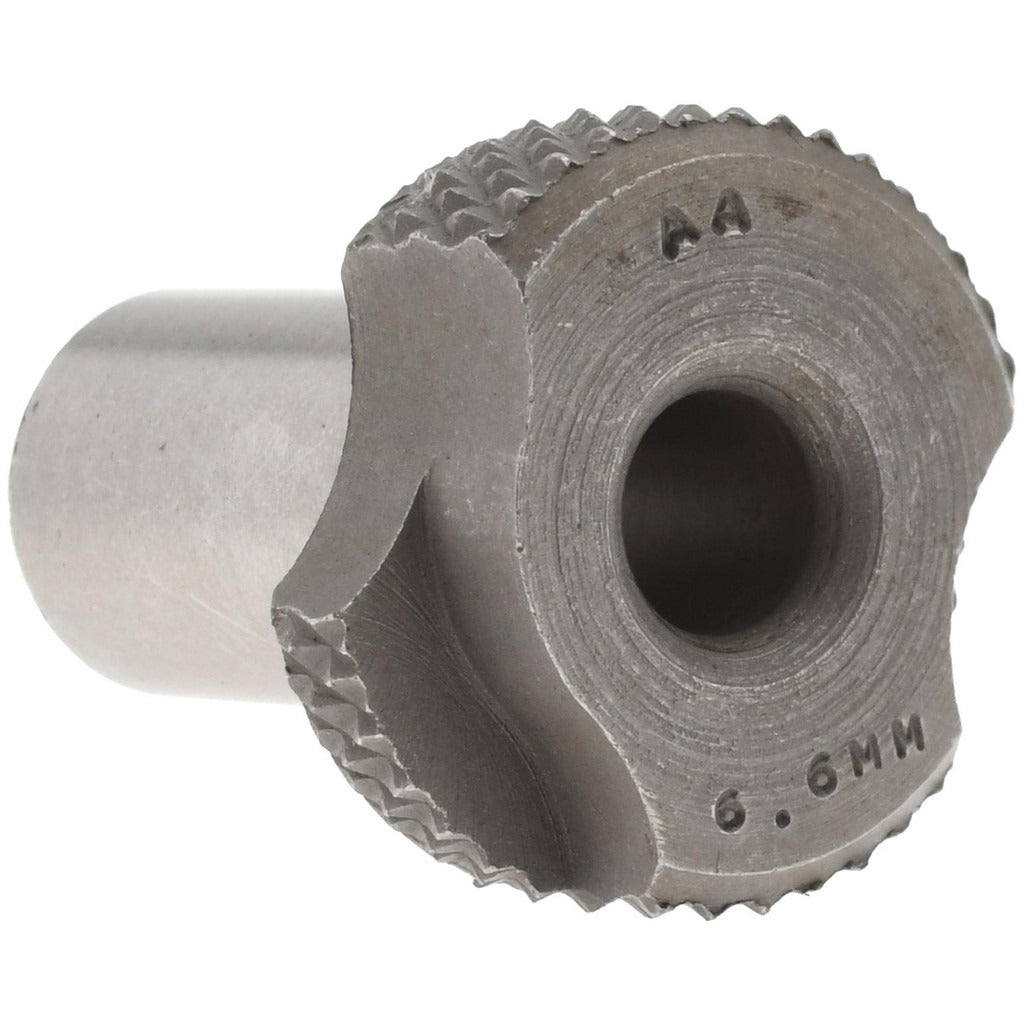

Boneham AM00001010 Slip-fixed Drill Bushing Sfm

Product Description

The BONEHAM AM00001010 is a slip-fixed drill bushing conforming to the SFM industry standard. It features a 6.6 mm inside diameter, a 12 mm body outside diameter, and a 20 mm length under the head. This renewable bushing is designed for use in drill jigs, where it guides cutting tools with precision and maintains consistent hole location across repeated operations. Machinists and tooling technicians install this type of bushing into a liner bushing already pressed into the jig plate, allowing quick removal and replacement without disturbing the fixture itself.

Slip-fixed bushings in the SFM configuration are used in production drilling, reaming, and light countersinking operations where the bushing must be locked in position during the cut but removed easily for tool changes or maintenance. The renewable design extends the service life of the jig plate by isolating wear to the bushing itself. This bushing is appropriate for both light-production and high-volume manufacturing environments where hole-location accuracy is critical.

Key Features

• SFM industry code conforms to standard slip-fixed bushing specifications
• Renewable design allows replacement without reworking the jig plate
• 6.6 mm inside diameter guides drill or reamer with close tolerance
• 12 mm body outside diameter fits standard SFM liner bushings
• 20 mm length under head provides adequate tool guidance depth for typical plate thicknesses

Compatibility

Designed as an OEM-style replacement or direct-fit component for drill jig fixtures using standard SFM-series liner bushings with a 12 mm body outside diameter bore.

Installation Notes

Installation is performed by tooling technicians or machinists during jig setup or bushing replacement. The liner bushing must already be installed and secured in the jig plate before the slip-fixed bushing is inserted. Ensure the jig is clear of cutting tools and the machine is powered down before servicing any bushing. Inspect the liner bushing bore for wear or damage prior to installing a replacement slip-fixed bushing.
