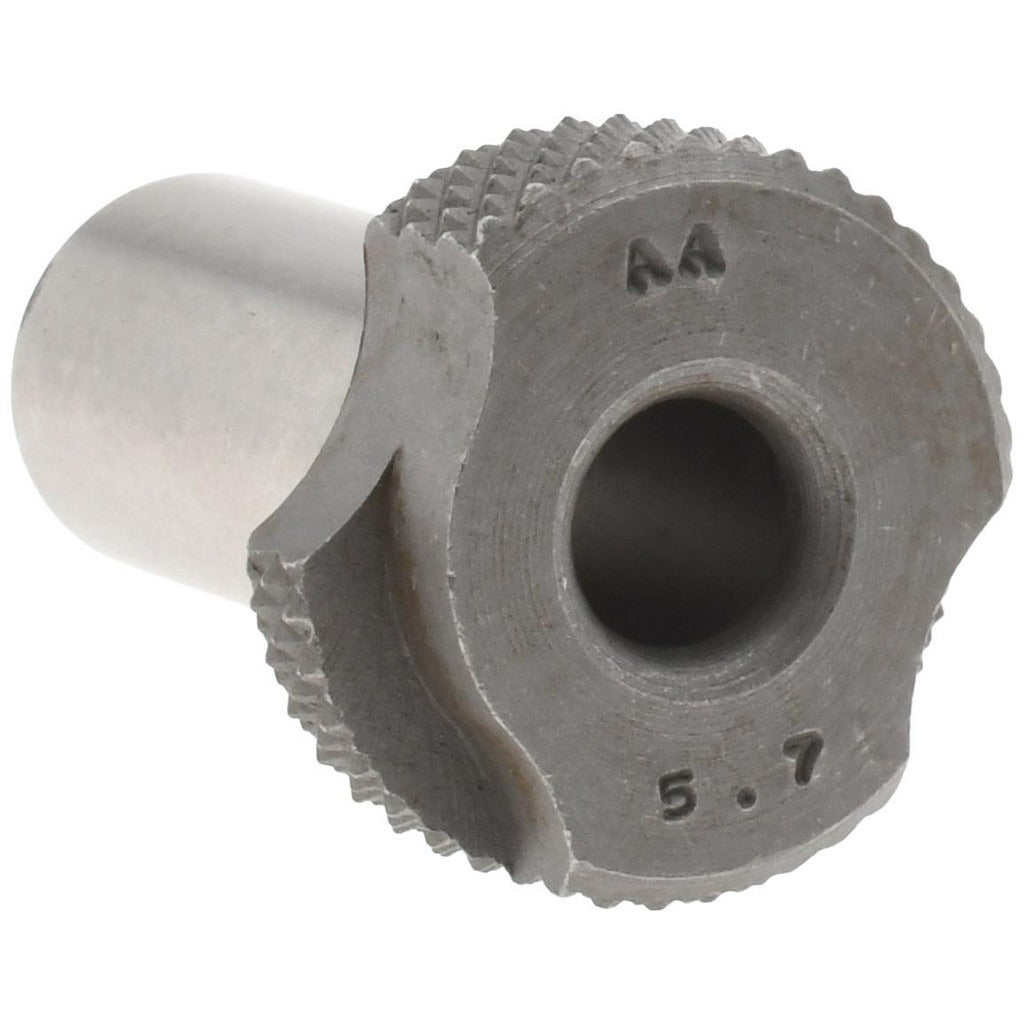

Boneham AM00000980 Slip-fixed Bushing Sfm 5.7mm Id

Product Description

The BONEHAM AM00000980 is a slip-fixed drill bushing manufactured to the SFM industry standard. It installs into a jig plate without the need for a press fit or locking screw, allowing the bushing to be removed and replaced during production runs. The bore measures 5.7 mm in diameter, the body outside diameter is 10 mm, and the length under the head is 20 mm. This bushing is classified as renewable, meaning the liner portion can be exchanged while the master bushing or jig plate remains in place. Machinists, tool-and-die makers, and precision fabricators work with this component in drill jig applications.

Slip-fixed bushings in the SFM configuration are used in production drilling jigs where tool changes are frequent and accurate hole location must be maintained across repeated operations. This bushing fits applications requiring a guided entry for drills, reamers, or similar cutting tools. It is suited to light-to-medium production environments where jig plate thickness and center-to-center spacing align with its 20 mm length under head and 10 mm body outside diameter. The renewable design supports longer jig service life by allowing worn bushings to be swapped without reworking the jig plate.

Key Features

• SFM industry code - conforms to slip-fixed bushing standards for interchangeable fit
• 5.7 mm bore ID for accurate drill or reamer guidance
• 10 mm body outside diameter for standard jig plate installation
• 20 mm length under head provides adequate guidance depth for the cutting tool
• Renewable bushing design allows field replacement without jig plate modification

Compatibility

Designed as an OEM-style replacement or direct-fit component for drill jigs and tooling fixtures that accept SFM-series slip-fixed renewable bushings with a 10 mm body outside diameter.

Installation Notes

Installation and removal are performed by a machinist or tooling technician using standard jig bushing handling tools. Ensure the jig plate bore is clean and free of burrs before seating the bushing. Secure the workpiece and jig fixture before initiating any drilling operation. Follow applicable shop safety procedures and tooling manufacturer guidelines when servicing jig plates.
