Boneham AM00000975 Slip-fixed Drill Bushing Sfm

Product Description

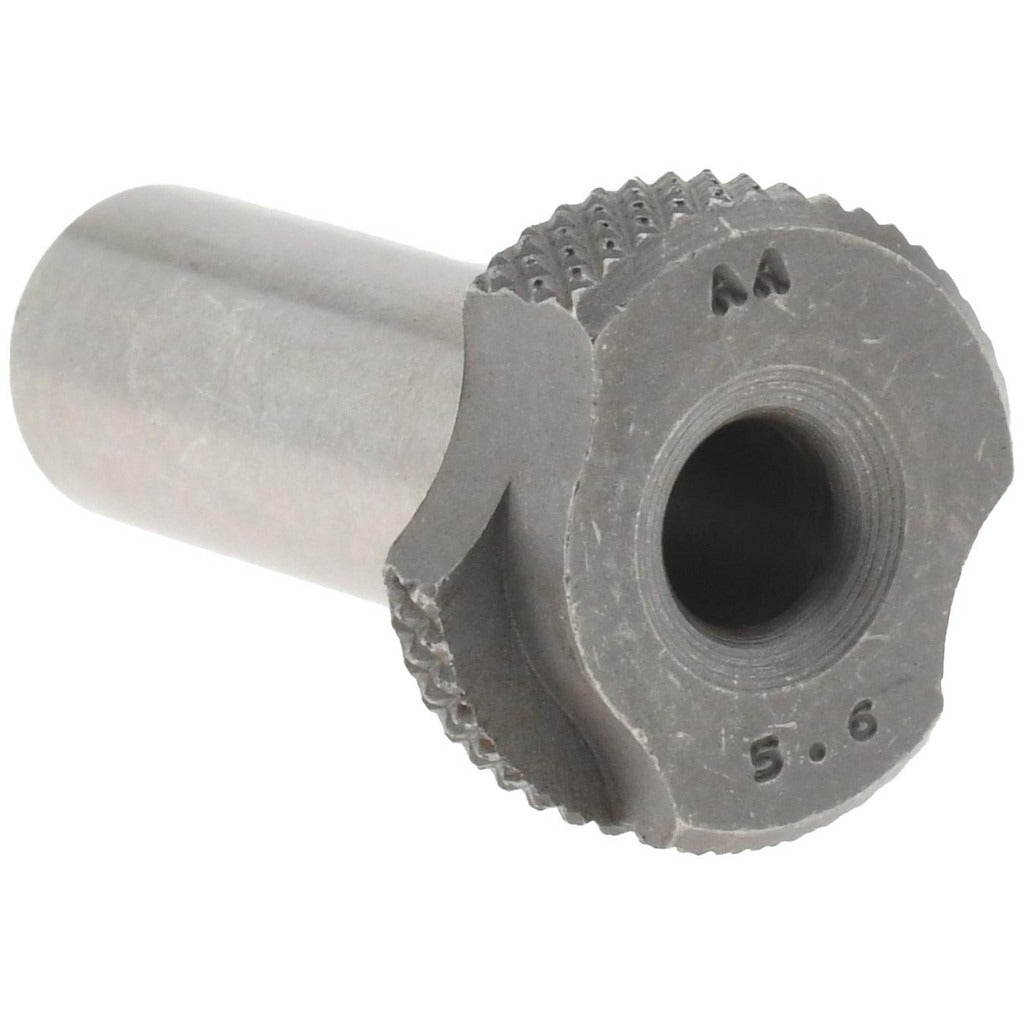

The BONEHAM AM00000975 is a slip-fixed drill bushing manufactured to SFM industry standards. It is designed to guide cutting tools accurately through jig plates in machining and fabrication applications. The bushing features a 5.6 mm inside diameter, a 10 mm body outside diameter, and a 25 mm length under head. The slip-fixed design allows the bushing to be inserted and locked into a liner bushing without the use of a press, making it suitable for applications that require frequent bushing changes without disturbing the jig plate. Renewable construction means the bushing can be replaced when worn, extending the service life of the jig fixture overall.

This bushing is used in drill jig applications across manufacturing, toolroom, and production environments. It is typically installed by machinists, toolmakers, and fixture builders who require repeatable, precise hole guidance during drilling, reaming, or boring operations. The SFM industry code designates its dimensional and functional classification within standardized drill bushing systems, making it straightforward to cross-reference and source as a replacement for worn or damaged bushings in existing jig setups.

Key Features

• Slip-fixed installation method allows tool-free removal and replacement without disturbing the jig plate
• Renewable bushing construction extends fixture service life
• 5.6 mm inside diameter for precise cutting tool guidance
• 10 mm body outside diameter for use with compatible liner bushings
• 25 mm length under head provides adequate tool guidance depth
• SFM industry code ensures dimensional conformance for cross-reference sourcing

Compatibility

Designed as an OEM-style replacement slip-fixed drill bushing for use with standard SFM-series liner bushings in drill jig fixtures conforming to SFM industry dimensional standards.

Installation Notes

Slip-fixed bushings are installed and removed by hand or with a bushing puller tool; no press is required. Ensure the mating liner bushing is clean and free of chips or burrs before installation. Verify inside diameter clearance matches the cutting tool shank before use. Installation should be performed by a qualified machinist or toolmaker following applicable fixture and tooling safety procedures.
