Boneham AM00000964 Slip-fixed Bushing Sfm 5.3mm Id

Product Description

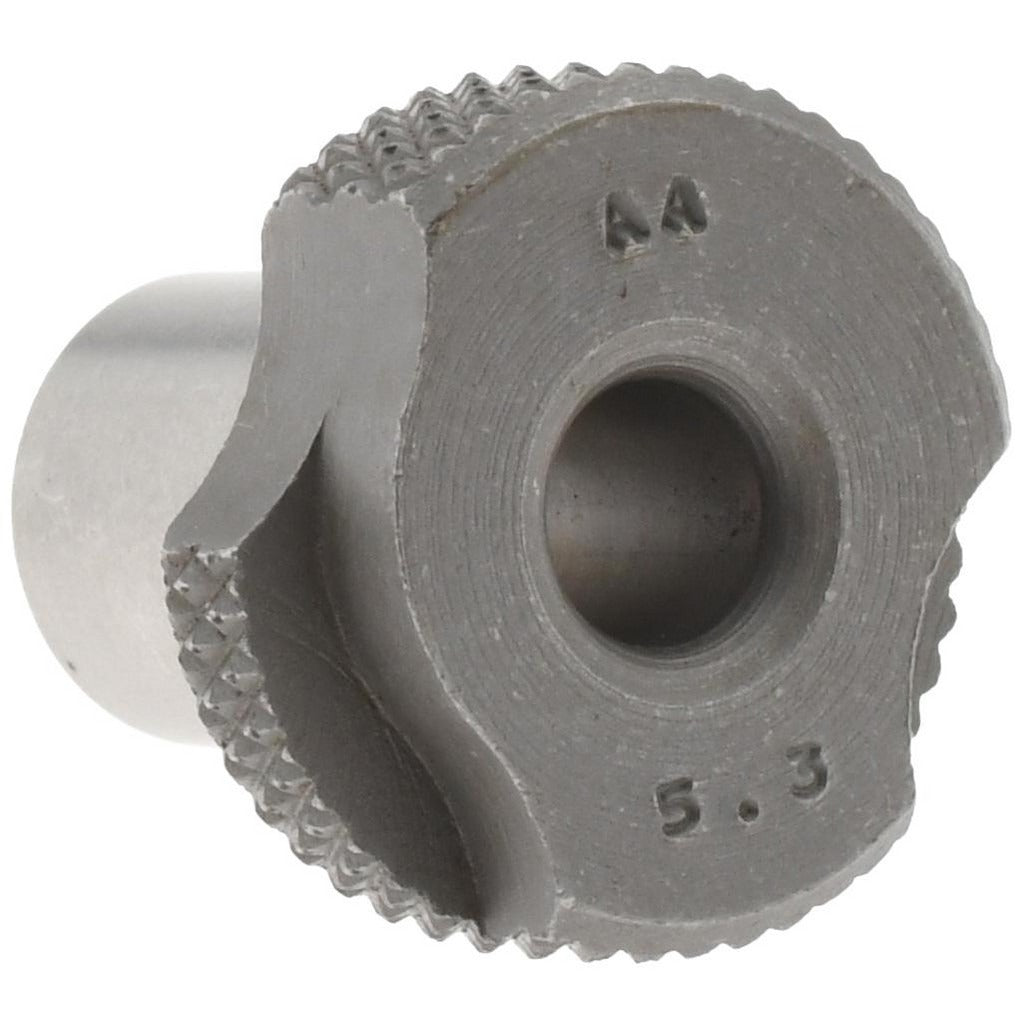

The BONEHAM AM00000964 is a slip-fixed drill bushing conforming to the SFM industry standard. It features a 5.3 mm inside diameter, a 10 mm body outside diameter, and a 12 mm length under the head. Slip-fixed bushings are press-fit components used in jig and fixture applications to guide cutting tools — drills, reamers, and similar tooling — with precise positional accuracy. Installation is performed by machinists and tooling specialists. The renewable design allows the bushing to be replaced independently of the jig plate, extending the service life of the fixture assembly.

This bushing is suited for production machining environments where repeatable hole location is required across multiple workpieces. It seats into a standard SFM-series liner bushing installed in a drill jig or fixture plate. Typical applications include metal fabrication shops, production drilling operations, and precision machining facilities where tooling consistency and dimensional accuracy are critical. The slip-fixed configuration allows quick bushing changes without disturbing the liner.

Key Features

• SFM industry standard slip-fixed bushing configuration
• 5.3 mm inside diameter for precise tool guidance
• 10 mm body outside diameter for standard SFM liner seating
• 12 mm length under head provides adequate tool guidance depth
• Renewable bushing design supports in-place replacement without jig rework

Compatibility

Designed as an OEM-style replacement or production component compatible with standard SFM-series liner bushings used in drill jig and fixture assemblies.

Installation Notes

Installation is typically performed by machinists or tooling technicians familiar with drill jig assembly. Ensure the mating liner bushing bore is clean and free of debris before seating the slip-fixed bushing. Do not force the bushing with excessive impact; proper fitment should require only moderate hand or press pressure. Verify inside diameter clearance is appropriate for the intended cutting tool before placing the fixture into service.
