Boneham AM00000938 Slip-fixed Drill Bushing Sfm

Product Description

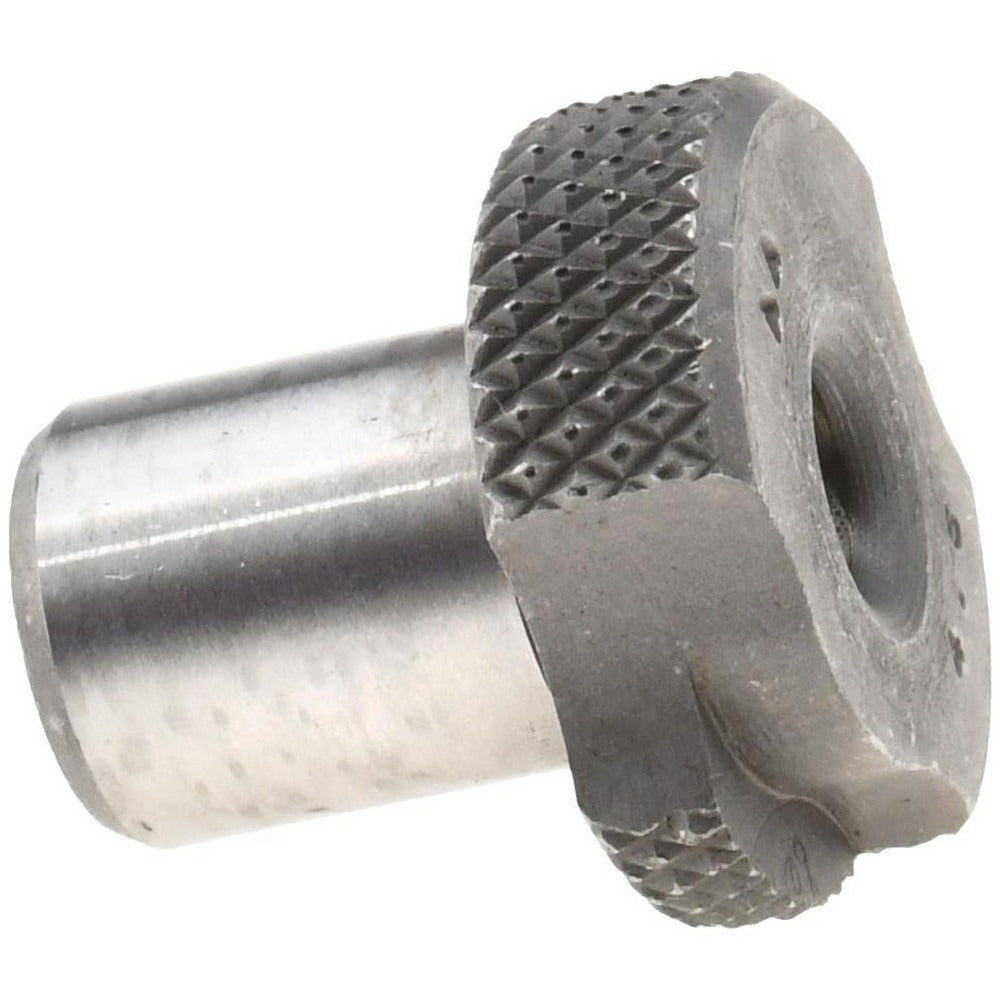

The BONEHAM AM00000938 is a slip-fixed drill bushing manufactured to SFM industry standards. It is designed to guide cutting tools such as drills, reamers, and similar tooling with precision during machining and fabrication operations. The bushing features a 4.6 mm inside diameter, a 10 mm body outside diameter, and a 12 mm length under the head. It installs by slipping into a liner bushing already seated in the jig plate, where a fixed locking feature holds the bushing in position during the cutting cycle. This part is suited for production jig and fixture setups where consistent hole location and tool guidance are critical.

This bushing is used in drill jig applications across metalworking, manufacturing, and precision fabrication environments. It is a renewable bushing, meaning it can be replaced independently of the liner bushing once worn, making it well suited for high-cycle production environments. Typical installation scenarios include multi-station drill fixtures and tooling plates where repeatable hole accuracy is required across large part volumes.

Key Features

• SFM slip-fixed bushing design locks into liner bushing during cutting operations
• Renewable construction allows independent replacement without disturbing the liner
• 4.6 mm inside diameter for precise tool guidance
• 10 mm body outside diameter for standard liner bushing compatibility
• 12 mm length under head provides adequate tool support depth
• UNSPSC Code 31171603 for streamlined procurement classification

Compatibility

Designed as an OEM-style replacement or production component for drill jig fixtures using SFM-standard slip-fixed liner bushings with a 10 mm body bore.

Installation Notes

Installation is performed by machinists or tooling technicians during jig setup or bushing replacement. The bushing slips into a pre-installed liner bushing and locks in place using the fixed locking mechanism. Ensure the liner bushing bore and the mating jig plate are clean and free of chips or burrs before inserting the slip-fixed bushing. Always de-energize and secure any power tooling before servicing or replacing bushings in a fixture.
