Boneham AM00000929 Slip-fixed Drill Bushing Sfm

Product Description

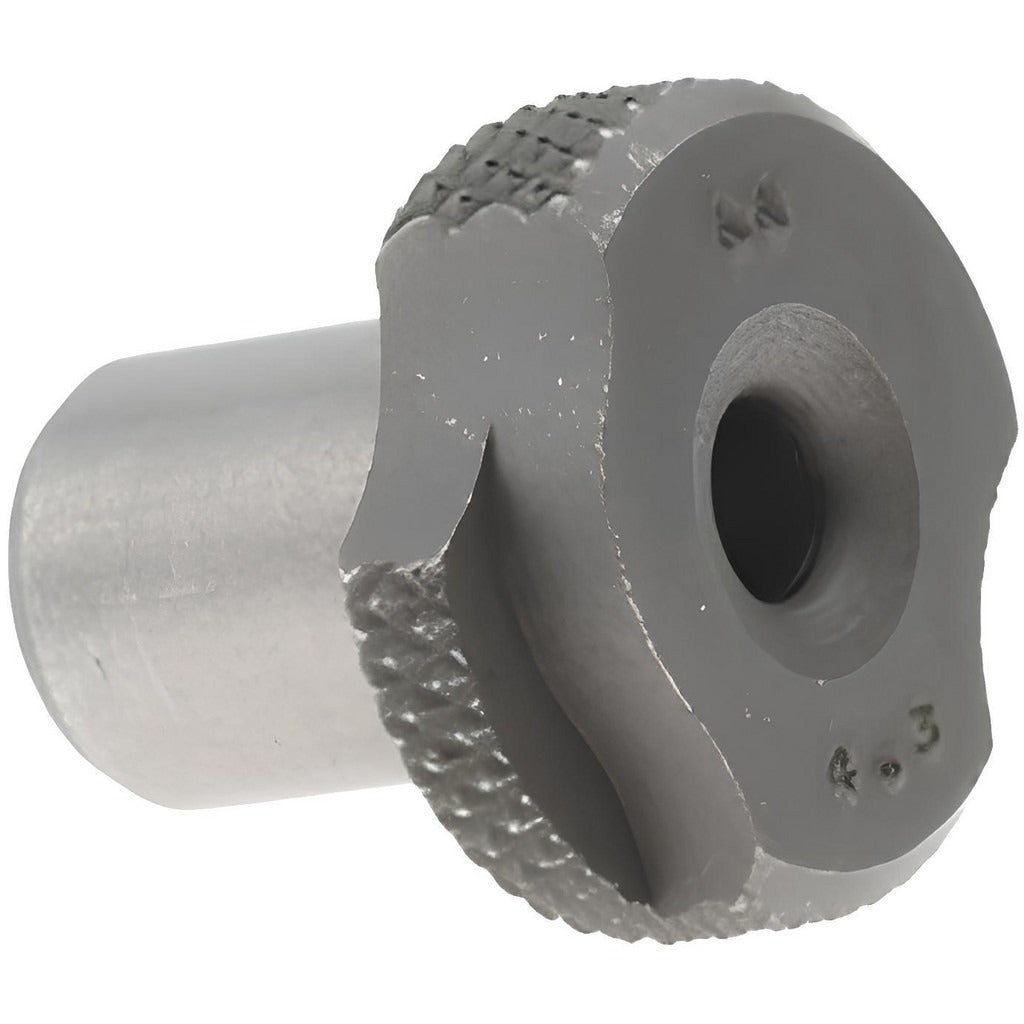

The BONEHAM AM00000929 is a slip-fixed drill bushing manufactured to the SFM industry standard. This bushing is designed to guide cutting tools such as drills and reamers with precision during machining and fabrication operations. The slip-fixed design allows the bushing to be installed and locked in place within a drill jig liner, holding position securely during the cutting cycle. It features a 4.3 mm inside diameter, a 10 mm body outside diameter, and a 12 mm length under the head. The renewable construction means the bushing can be replaced independently of the jig plate, reducing tooling costs over time. Machinists and toolmakers are the primary installers of this component.

This bushing is used in drill jig applications across light and heavy manufacturing environments, including metalworking shops, machine shops, and production facilities. It is suited for operations requiring repeatable hole location accuracy when drilling, reaming, or countersinking. The SFM industry code designates a specific head and body geometry that corresponds to standard slip-fixed bushing press-fit liner assemblies. Where jig plates see high-volume production runs, the renewable feature of this bushing supports quick changeouts without reworking the jig body.

Key Features

• SFM industry standard slip-fixed bushing configuration for use with standard liner assemblies
• 4.3 mm inside diameter for precise tool guidance
• 10 mm body outside diameter for proper liner fit
• 12 mm length under head provides adequate tool guidance depth
• Renewable bushing design allows replacement without disturbing the jig plate
• UNSPSC Code 31171603 for procurement and catalog classification

Compatibility

Designed as an OEM-style replacement for standard SFM slip-fixed renewable drill bushing applications in drill jig liner assemblies.

Installation Notes

Installation is performed by machinists or tool and die makers using standard jig bushing press and removal tools. The slip-fixed bushing seats into a compatible press-fit liner and is locked in position by rotating the head into the locking slot. Ensure the jig plate and liner are clean and free of chips or burrs before seating the bushing. Always follow applicable shop safety procedures and de-energize or secure any powered equipment before servicing jig tooling.
