Boneham AM00000912 Slip-fixed Bushing Sfm

Product Description

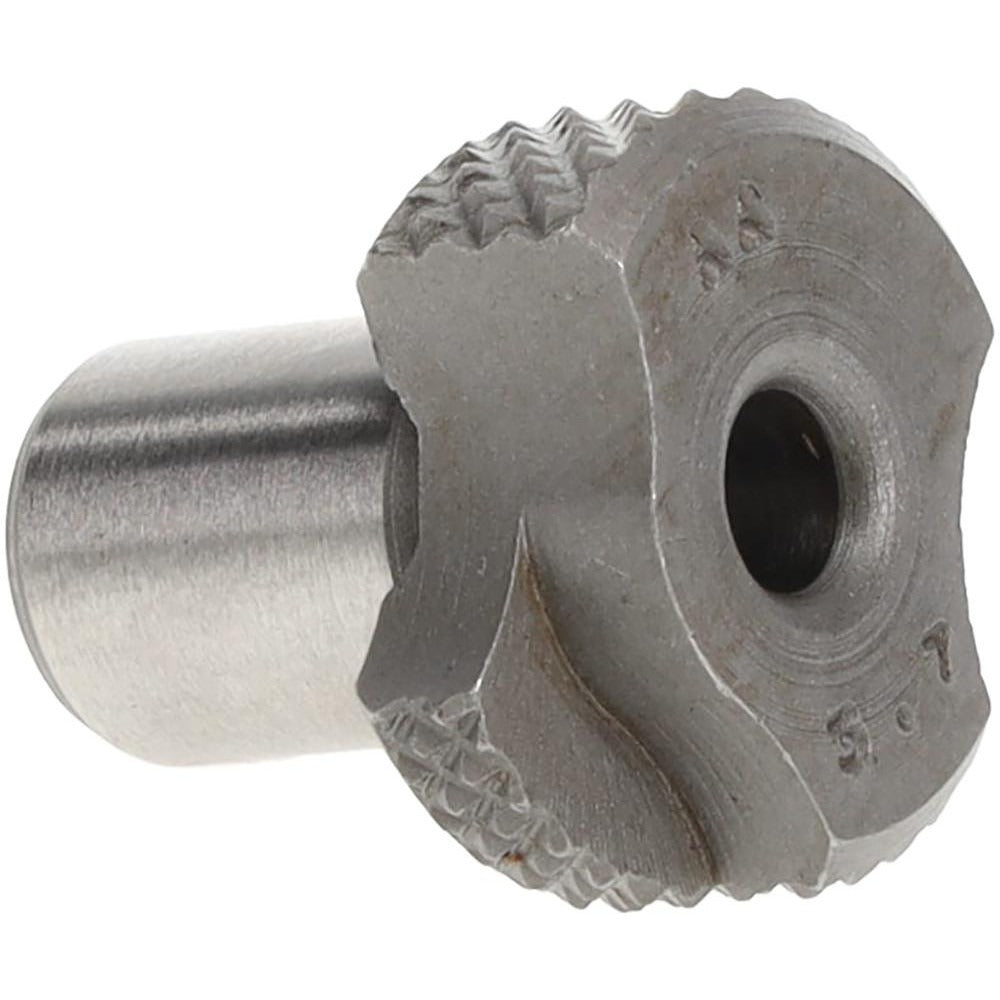

The BONEHAM AM00000912 is a slip-fixed drill bushing rated to industry code SFM, designed to guide cutting tools with precision in jig and fixture applications. The bushing features a 3.7 mm inside diameter and an 8 mm body outside diameter, with a 10 mm length under the head. It installs by slip-fit into the jig plate, allowing for tool changes without disassembling the fixture. This is a renewable bushing, meaning it can be replaced when worn without replacing the liner or the jig plate. Machinists, tool-and-die makers, and production shop technicians are the typical installers.

This bushing is suited for use in production drilling jigs and fixtures where repeatable hole location is required. The slip-fixed configuration allows the bushing to be inserted and secured in a liner bushing already pressed into the jig plate. Common applications include repetitive drilling, reaming, and similar guided cutting operations in light to medium production environments. The renewable design supports high-cycle tooling setups where periodic replacement of the wear component is standard practice.

Key Features

• Slip-fixed installation method for use with a pressed-in liner bushing
• SFM industry bushing code for standardized fitment in compatible jig systems
• 3.7 mm inside diameter for close-tolerance tool guidance
• 8 mm body outside diameter with 10 mm length under head
• Renewable bushing design allows replacement without disturbing the liner or plate

Compatibility

Designed as an OEM-style replacement or production component for jig and fixture systems requiring SFM-coded slip-fixed drill bushings with a 3.7 mm ID and 8 mm body outside diameter.

Installation Notes

Installation is performed by machinists or toolmakers as part of jig plate assembly or maintenance. The bushing slips into a compatible pressed-in liner bushing and is secured per the fixture design. Ensure the liner bushing bore and the jig plate are free of chips and burrs before inserting the slip-fixed bushing. Follow applicable shop safety and machine lockout procedures before performing any jig maintenance with cutting equipment present.
