Boneham AM00000908 Slip-fixed Drill Bushing Sfm

Product Description

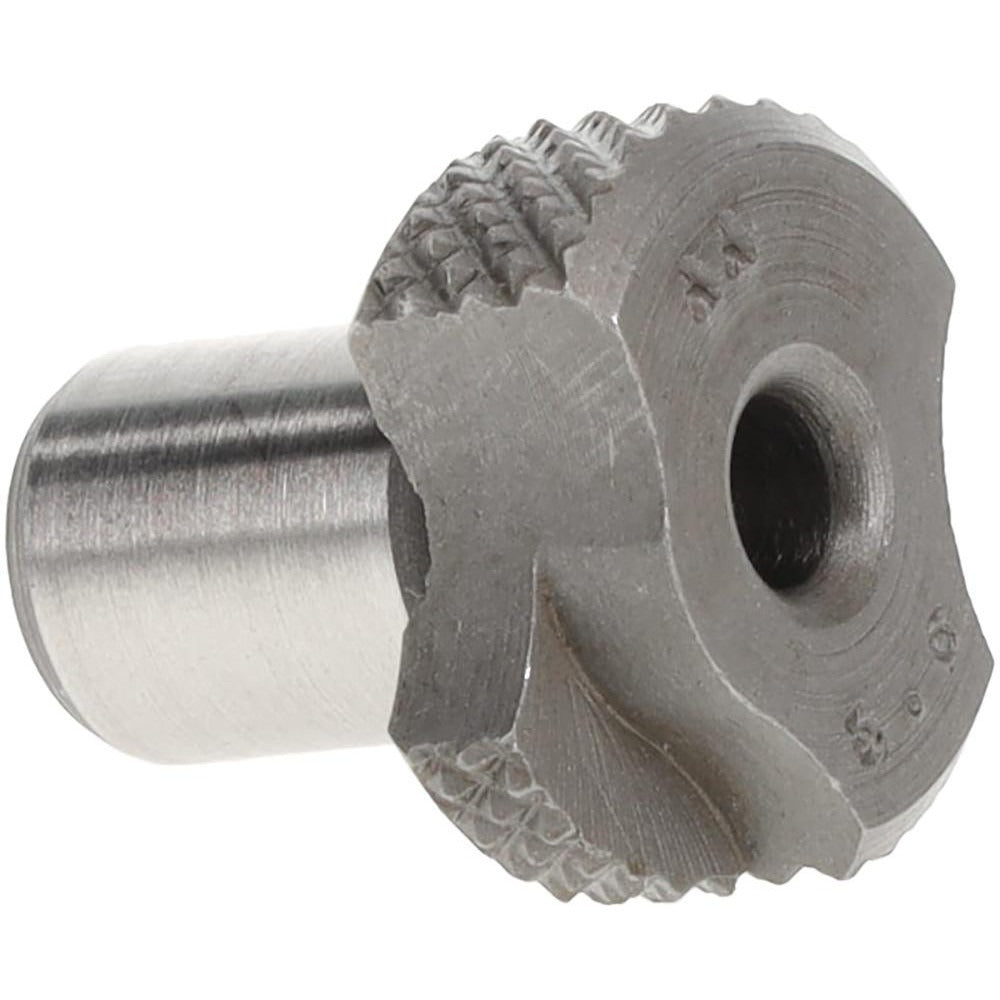

The BONEHAM AM00000908 is a slip-fixed drill bushing conforming to the SFM industry code. It features a 3.6 mm inside diameter, an 8 mm body outside diameter, and a 10 mm length under the head. Slip-fixed bushings are designed to be pressed into a liner bushing already installed in a jig plate, allowing the bushing to be locked in place during the drilling operation. This design prevents rotation and axial movement under cutting forces. The AM00000908 is a renewable bushing, meaning it can be replaced without disturbing the liner bushing, extending the service life of the drill jig. Machinists and toolmakers use this type of component in precision drilling, reaming, and related guided-tool operations.

This bushing is suited for use in drill jigs and fixture plates in machine shop, toolroom, and production environments. The SFM-style slip-fixed bushing is a standard configuration widely used in metalworking and manufacturing applications where guided drilling accuracy is required. The renewable construction allows worn bushings to be swapped out during production runs, reducing jig downtime. Sold individually as a single-piece unit.

Key Features

• SFM industry code slip-fixed design locks in place during drilling operations
• 3.6 mm inside diameter for guided tool clearance
• 8 mm body outside diameter for standard liner bushing fitment
• 10 mm length under head provides axial guidance depth
• Renewable bushing construction allows field replacement without disturbing liner

Compatibility

Designed as an OEM-style replacement or new-build component for standard SFM-code slip-fixed liner bushings used in drill jig and fixture plate assemblies.

Installation Notes

Slip-fixed bushings are installed by toolmakers or machinists into a mating liner bushing already pressed into the jig plate. Ensure the liner bushing bore and the slip-fixed bushing body are free of burrs and debris before installation. The locking notch and lock screw on the liner bushing must be properly aligned to secure the slip-fixed bushing during use. Follow shop-specific tooling procedures and relevant ASME standards for jig and fixture assembly.
