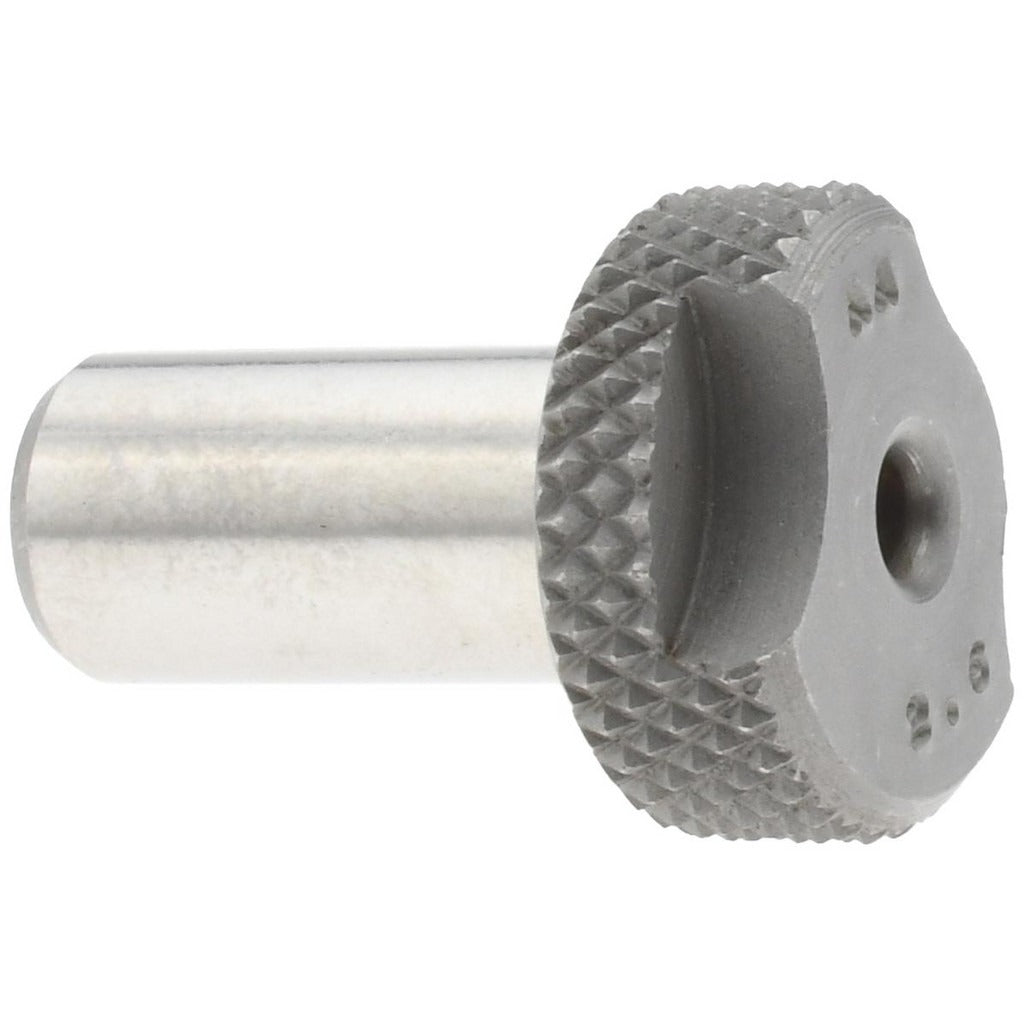

Boneham AM00000870 Slip-fixed Bushing Sfm

Product Description

The BONEHAM AM00000870 is a slip-fixed drill bushing manufactured to the SFM industry standard. It is designed to guide cutting tools accurately during drilling, reaming, and boring operations in jig and fixture applications. The bushing features a 2.6 mm inside diameter and an 8 mm body outside diameter, with a 16 mm length under the head. It installs by slipping into a liner bushing and locking in place, making it a renewable component that can be replaced without disturbing the fixture itself. Machinists, toolmakers, and maintenance professionals install this type of bushing in production jigs where repeatable hole location accuracy is required.

This bushing is suited for use in drill jigs and precision fixtures across general manufacturing, maintenance, and toolroom environments. The renewable design allows worn bushings to be swapped out quickly, reducing fixture downtime. The SFM designation identifies it as a slip-fixed style, a common configuration used when a single fixture plate needs to accept multiple bushing sizes or tool types at the same location. The 16 mm length under the head provides adequate tool guidance for standard drilling depths in light to medium stock.

Key Features

• SFM slip-fixed bushing style for use with compatible liner bushings
• 2.6 mm inside diameter for precise cutting tool guidance
• 8 mm body outside diameter for standard liner bushing fitment
• 16 mm length under head for consistent tool guidance depth
• Renewable design allows replacement without removing the liner or fixture plate

Compatibility

Designed as an OEM-style replacement or standard toolroom bushing for drill jigs and fixtures requiring an SFM slip-fixed configuration with a 2.6 mm ID and 8 mm body OD.

Installation Notes

Installation is performed by toolmakers or maintenance machinists working with precision drill fixtures. Ensure the mating liner bushing bore is clean and free of chips or burrs before seating the slip-fixed bushing. The locking mechanism should be confirmed secure before operating the fixture under production conditions. Follow applicable shop safety procedures and shut down any power equipment before servicing or replacing bushings in an active fixture.
