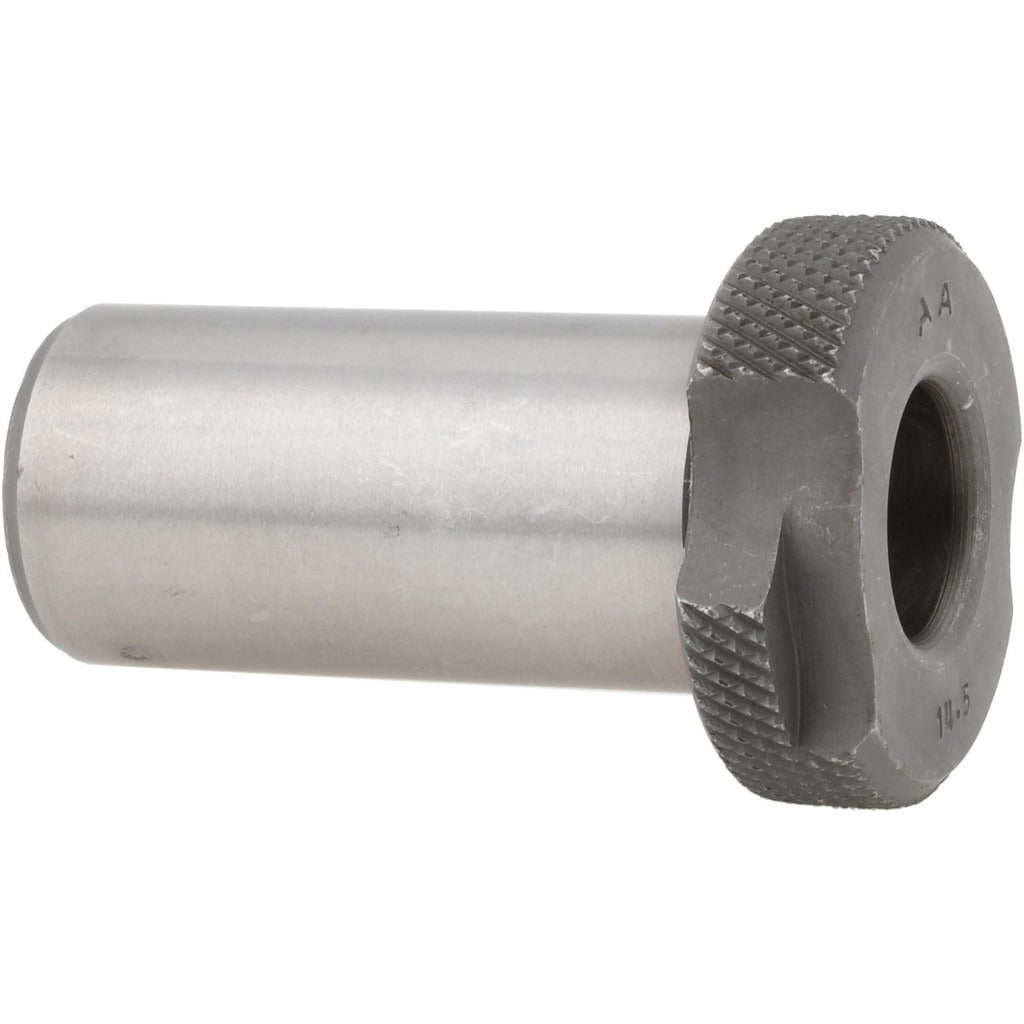

Boneham AM00000811 Slip-fixed Bushing Sfm 14.5 Mm Id

Product Description

The BONEHAM AM00000811 is a slip-fixed drill bushing built to SFM industry standards. It features a 14.5 mm inside diameter, a 22 mm body outside diameter, and a 45 mm length under the head. Slip-fixed bushings are used in jig and fixture tooling to guide drill bits, reamers, and other cutting tools with precision. The renewable design allows the bushing to be replaced without replacing the jig plate, extending the service life of the fixture assembly. Machinists and toolmakers install this type of bushing in production drilling operations where repeatable hole location accuracy is required.

This bushing is suited for use in machine shop environments, both job-shop and production-floor settings, where drill jigs require a guided bushing that can be installed and locked in place by rotating into a slip-fixed liner. The SFM designation indicates compatibility with standard slip-fixed liner configurations. The renewable construction makes it a practical choice for high-cycle drilling applications where bushing wear is expected over time.

Key Features

• SFM industry code — compatible with standard slip-fixed liner systems
• 14.5 mm inside diameter for precise cutting tool guidance
• 22 mm body outside diameter for secure seating in the liner
• 45 mm length under head provides adequate tool guidance depth
• Renewable bushing design allows field replacement without jig plate rework

Compatibility

Designed as an OEM-style replacement or direct-fit bushing for drill jigs and fixtures using standard SFM-style slip-fixed liner assemblies.

Installation Notes

Slip-fixed bushings are installed by machinists or tool and die professionals during jig assembly or bushing replacement. Power down and secure all machine tooling before servicing a drill jig or fixture. The bushing is inserted into a mating slip-fixed liner and rotated to lock in place — no press-fit force or adhesives are required. Inspect the liner bore for wear or damage before installing a new bushing to ensure proper seating and alignment.
